Plate Centrifuge

Plate Centrifuges

also known as plate shakers, PCR plate centrifuges, ELISA plate centrifuges, microplate centrifuges, or deep-well plate centrifuges, are designed for use with microplates. These centrifuges can accommodate a range of plate sizes, including 48-well, 96-well, and 384-well plates, with the 96-well plate centrifuge being the most commonly used. During centrifugation, These centrifuges typically operate at speeds up to 5000 revolutions per minute.

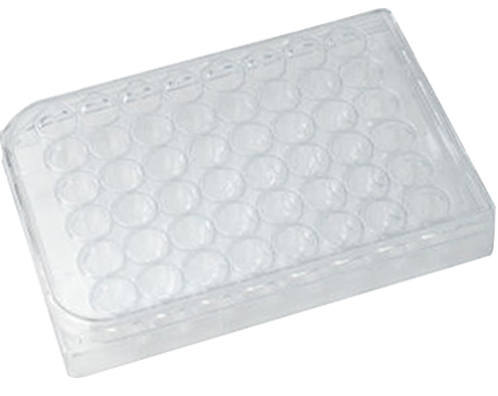

48-well plate
48-well plate

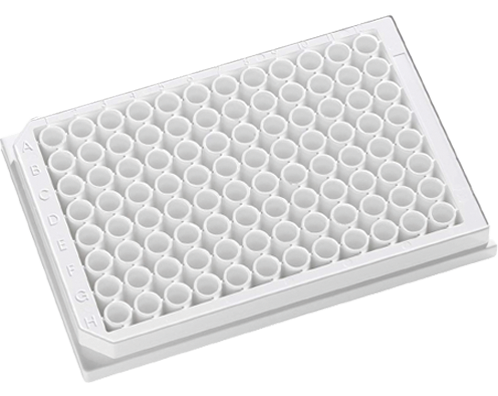

96 wells Plate
96-well plate

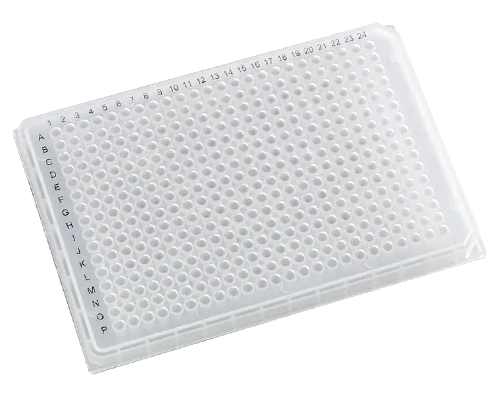

384 wells plate
384-well plate

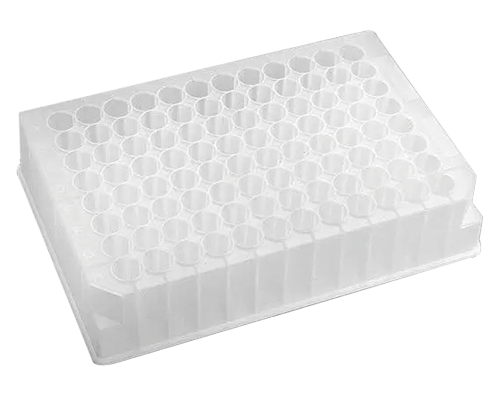

Deep-well plate
Deep-well plate

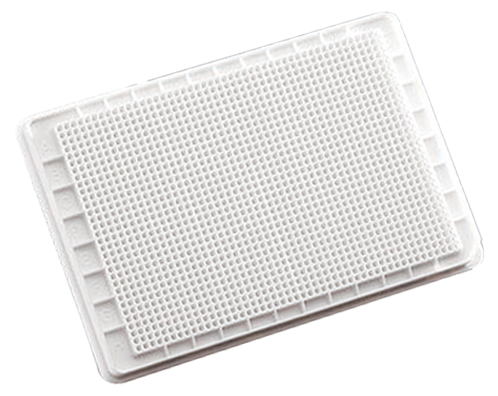

Microplate
Microplate

Vertical Plate Centrifuge

A Vertical 96-Well Plate Centrifuge

A vertical 96-well plate centrifuge is a specialized instrument designed for handling 96-well plates. It operates differently from standard centrifuges, as the plates are inserted vertically into the slot. These centrifuges are typically compact, lightweight, and simple in design. They are commonly used for removing wall-attached droplets and eliminating air bubbles.

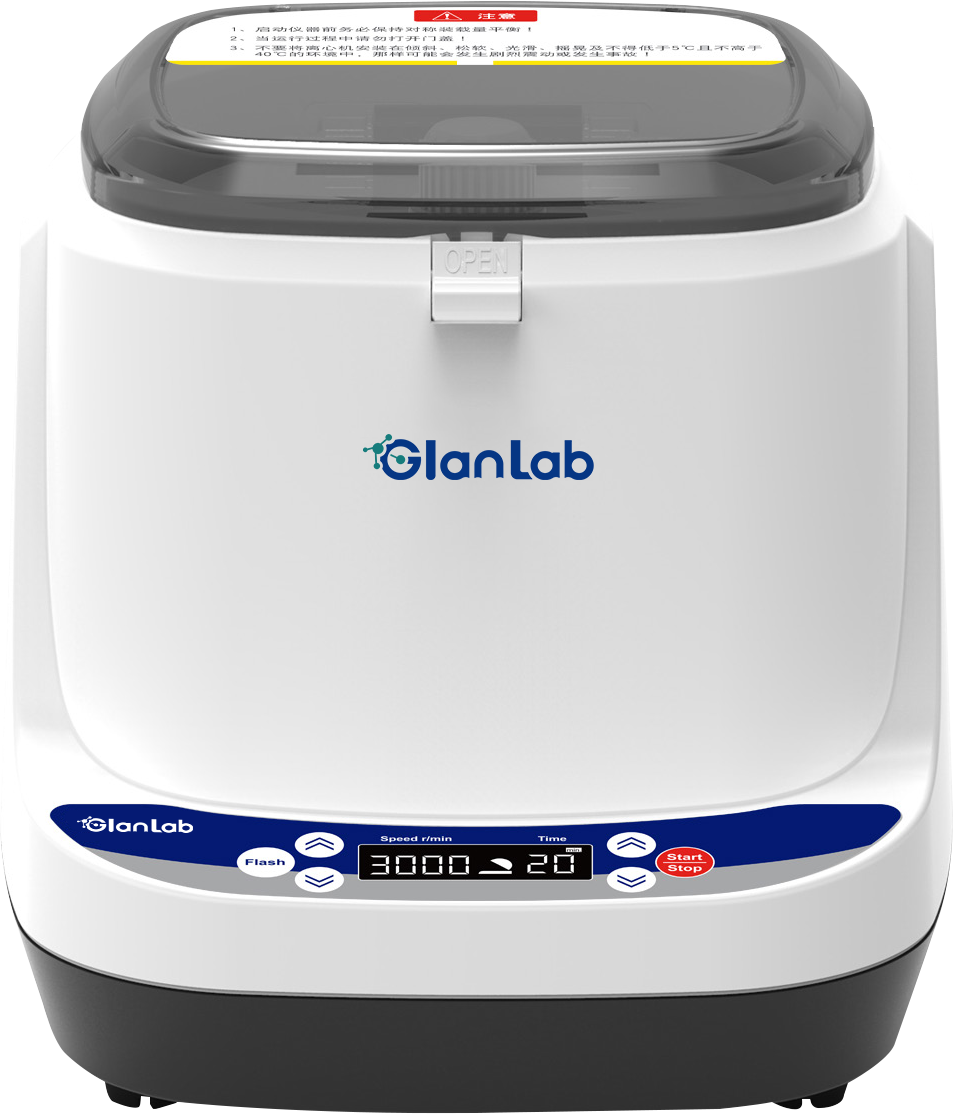

Plate Centrifuge

Mini3-96 Well Microplate Centrifuge For PCR

The Mini3 Microplate Centrifuge is designed for 96-well or 384-well microplates, including both skirted and unskirted types, as well as a variety of standard PCR microplates. It provides instantaneous centrifugation, reaching speeds up to 3,000 rpm in just 6 seconds, allowing for the rapid removal of wall-attached droplets.

Designed For Microtiter Plates

Suitable for 96 or 384 wells and small volume microplates, as well as skirted and unskirted microplates and standard PCR microplates.
96 wells Plate
96 wells plate
384 wells plate
384 wells Plate
DC24V/2.75A
Voltage (V/Hz)
1-99min.1-59sec
Time Range
2x96 PCR Plate
Max Capacity
608xg
Max RCF
300-3000+15rpm
Rotation Speed

Horizontal Plate Centrifuge

Horizontal 96-Well Plate Centrifuge

The horizontal 96-well plate centrifuge is an instrument that adapts traditional centrifuges by replacing the angular rotor with a horizontal rotor suitable for 96-well plates. This type of centrifuge retains many of the comprehensive features of standard models, such as high centrifugal force, horizontal chamber operation, digital display, and rapid braking, while offering a more compact size. The following centrifuges are commonly used as horizontal 96-well plate centrifuges.

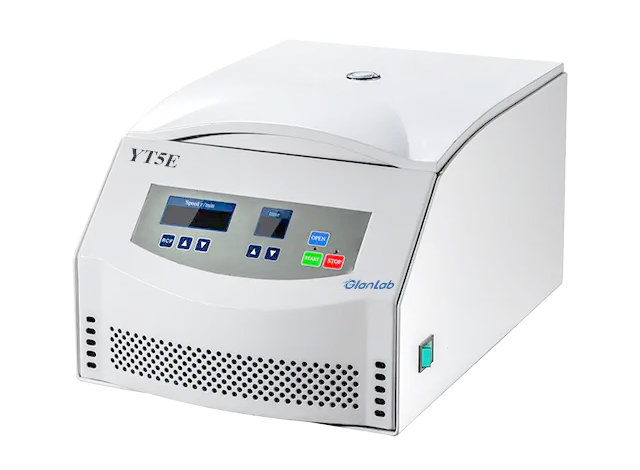

YT5E Blood Low Speed Centrifuge

YT5E Low Speed Benchtop Centrifuge

YT5E centrifuge is our classical and popular low speed centrifuge. They are usually 5000rpm and have the different max. volume according to the customer requirements. They are universal and matching various kinds of rotors such as swing/angle/microplate, widely used in laboratory, blood bank and hospital.
  • Microprocessor control, digital display, touch panel, parameters in running can be edited and change to display other running parameter and RCF.
  • Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running.
  • Automatic lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
  • Adapters are available by experiment requirements.
  • 3 tiers protection steel cover, safe and reliable.
5000 rpm
Max. Speed
4420×g
Max. RCF
4×180ml
Max. Capacity
≤ 58
Noise (dB)
Normal
Temperature
Matched Microplate Rotor for YT5E

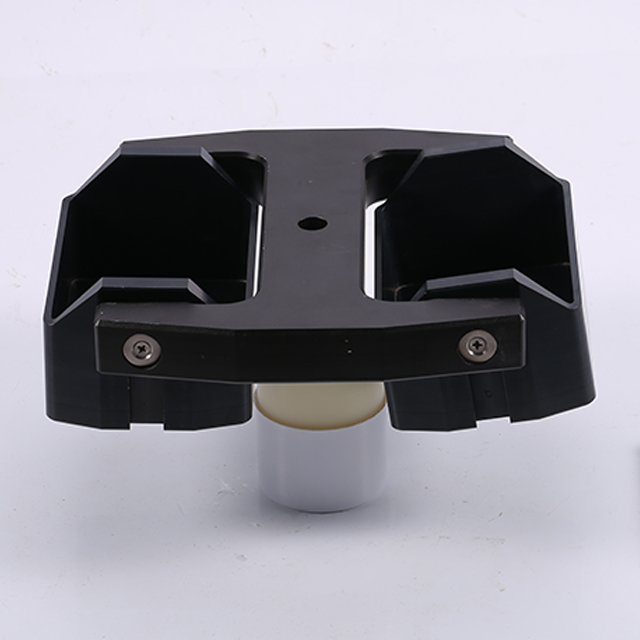

2x1x96
2x1x96well Microplate Box Type Rotor(Support deep-well plate)
Max speed: 4000rpm
Max RCF: 1980xg

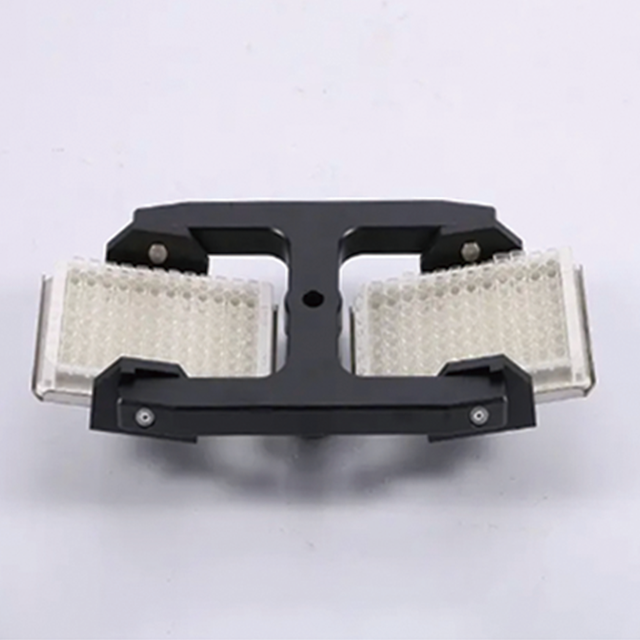

2x1x96well Microplate Frame TypeRotor
2x1x96well Microplate Frame TypeRotor
Max speed: 4000rpm
Max RCF 2020xg
YT5E Blood Low Speed Centrifuge

YT5BR Tabletop Low Speed Refrigerated Centrifuge

YT5BR are Widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory, hospitals, blood banks.Its max capacity can reach at 4*800ml at the speed of 5000rpm
  • Brush-less motor with simpler construction, more reliable performance, longer life and quietly running.
  • Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
  • Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
  • Microprocessor control, YT5B with digital display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply.
  • 10 kinds of accelerating and decelerating speed for your choice.
5000 rpm
Max. Speed
4730×g
Max. RCF
4×800ml
Max. Capacity
≤ 60
Noise (dB)
-20℃~40℃
Temperature
Matched Microplate Rotor for YT5BR

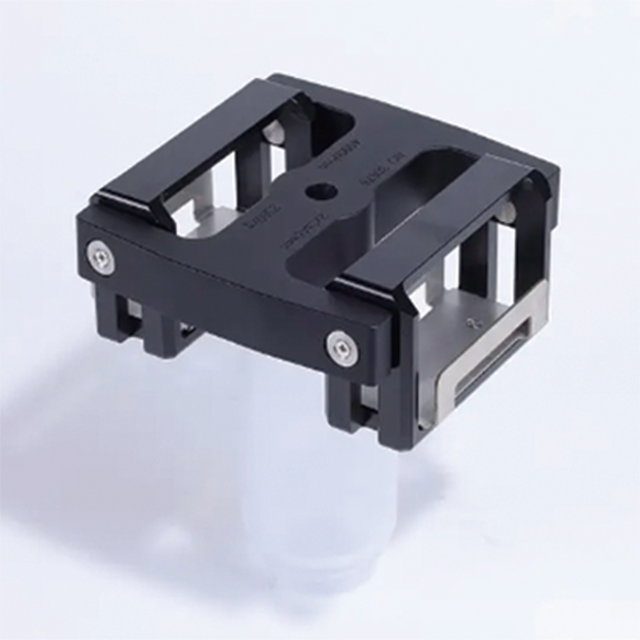

2x3x48well Microplate Rotor
2x3x48well Microplate Rotor
Max speed: 4000rpm
Max RCF: 2300xg

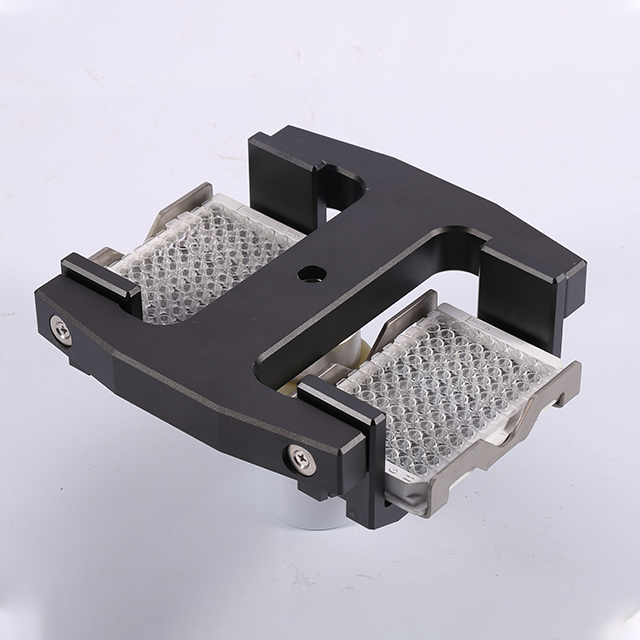

2x2x96well
2x2x96well Microplate Rotor-Frame Type
Max speed: 4000rpm
Max RCF: 3210xg

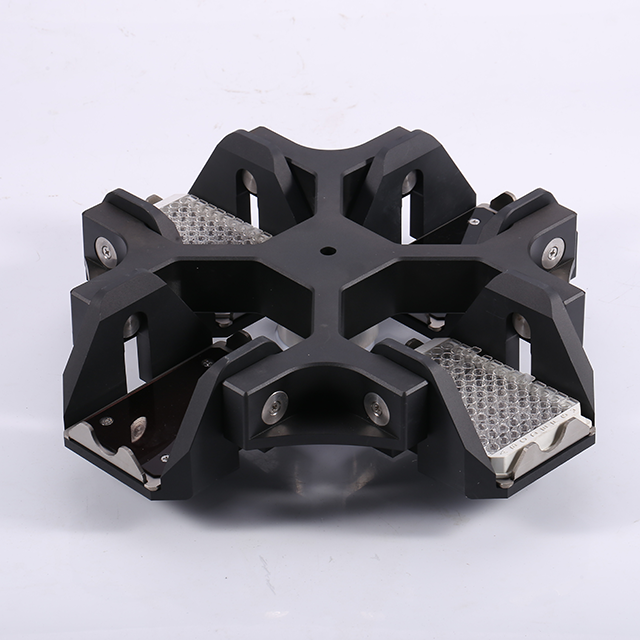

4×4×96well
4×4×96well Microplate Frame Type Rotor
Max speed: 4000rpm
Max RCF: 2940xg
2x1x96
2x2x96well Microplate Box Type Rotor(Support deep-well plate)
Max speed: 4000rpm
Max RCF: 3080xg

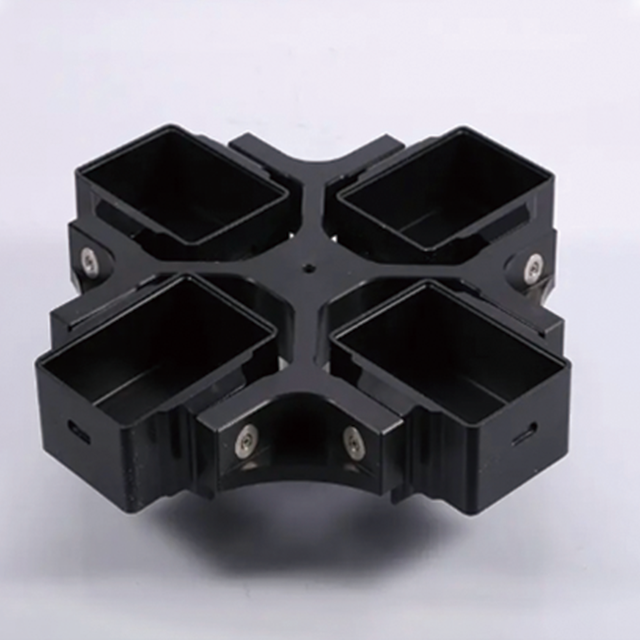

4x4x96well Microplate Box Type Rotor
4x4x96well Microplate Box Type Rotor(Support deep-well plate)
Max speed: 4000rpm
Max RCF: 2930xg
YT18R

YT18R Tabletop High Speed Tabletop Refrigerated Centrifuge

YT18R is widely used in the field of animal and plant molecular biology, which is the ideal instrument for separating the chemical substances in the cell and purifying the microorganisms, viruses, bacteria and subcellular etc.
  • Max. speed 21000rpm, max volume 4x800ml, can be used for 5ml/10ml/15ml/30ml/50ml/100ml centrifuge tubes and microplate.
  • Brushless DC motor in great torque, no powder pollution, free maintenance, quick in speed up and down.
  • Can store 10 programs, automatically calculate and synchronously display the RCF data. Digital display indicates the speed, time, temperature and RCF. The parameters can be changed in operation, no need to stop the centrifuge which is quite convenient.
  • The centrifuge body is made of high-quality steel, and with high-quality steel centrifuge chamber, safe and reliable.
  • Automatically electric lid lock, over speed/over temperature protection and imbalance protection.
21000 rpm
Max. Speed
30910×g
Max. RCF
4×800ml
Max. Capacity
≤ 58
Noise (dB)
-20℃~40℃
Temperature
Matched Microplate Rotor for YT5BR
2x3x48well Microplate Rotor
2x3x48well Microplate Rotor
Max speed: 4000rpm
Max RCF: 2300xg
2x2x96well
2x2x96well Microplate Rotor-Frame Type
Max speed: 4000rpm
Max RCF: 3210xg
4×4×96well
4×4×96well Microplate Frame Type Rotor
Max speed: 4000rpm
Max RCF: 2940xg
2x1x96
2x2x96well Microplate Box Type Rotor(Support deep-well plate)
Max speed: 4000rpm
Max RCF: 3080xg
4x4x96well Microplate Box Type Rotor
4x4x96well Microplate Box Type Rotor(Support deep-well plate)
Max speed: 4000rpm
Max RCF: 2930xg

Applications

PCR
PCR
Proteolytic enzymes
Enzyme-Linked Immunosorbent Assay(ELISA)
DNARNA extraction
DNA/RNA Extraction

FAQs Of Plate Centrifuge

  • How to use a centrifuge in PCR？
    Prepare Samples: Mix reagents and samples in PCR tubes or plates.
    Load and Balance: Place tubes or plates in the centrifuge and balance them.
    Set Parameters: Choose the appropriate speed and time (typically low speed).
    Run the Centrifuge: Close the lid and start the centrifuge.
    Retrieve Samples: After centrifugation, collect your samples and proceed to PCR.
