YT5BR
5mL 7mL 10mL 15mL 50mL 100mL 500mL 750mL 800mL
5000rpm
4730 x g
No
4x800ml
| Quantity: | |
|---|---|
YT5BR 5000rpm, 4*800ml, Refrigerated Low Speed Centrifuge Large Capacity
Features：
1. Brush-less motor with simpler construction, more reliable performance, longer life and quietly running.
2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
3. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
4. Microprocessor control, YT5BR with digital display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply.
5. 10 kinds of accelerating and decelerating speed for your choice.
YT5BR Technical Parameter
| Max. Speed | 5000rpm |
| Max. RCF | 4730×g |
| Max. Capacity | 4×800ml |
| Time Range | 1～9h59min |
| Noise (dB) | ≤ 60 |
| Speed Accuracy | ±20r/min |
| Temperature Range | -20～40°C |
| Temperature Accuracy | ±1℃ |
| Voltage(V/Hz) | AC 220V/110V 50HZ 15A |
| Size (L x W x Hmm) | 720×710×410mm |
| Net Weight(Kg) | 125KG |

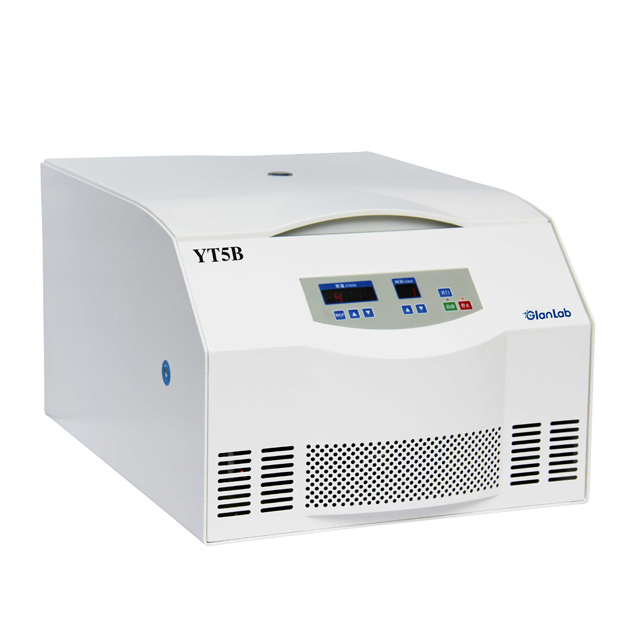

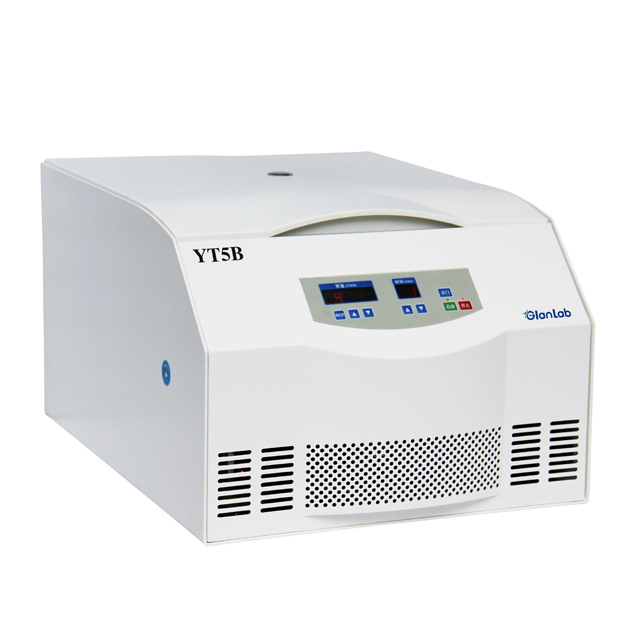

YT5B Technical Parameter
| Max. Speed | 5000rpm |
| Max. RCF | 4730×g |
| Max. Capacity | 4×800ml |
| Time Range | 0~99min |
| Noise (dB) | ≤ 60 |
| Speed Accuracy | ±20r/min |
| Voltage(V/Hz) | AC 220V/110V 50HZ 10A |
| Size (L x W x Hmm) | 700×500×400mm |
| Net Weight(Kg) | 67KG |
Matched Rotors for YT5B/YT5BR
| Order No | Rotor | Max Speed(r/min) | Volume(ml) | Max RCF(×g) |
5B-1
| Swing Rotor | 4000 | 4×800ml | 3450 |
5B-2 | Swing Rotor | 4000 | 4×750ml | 3530 |
5B-3

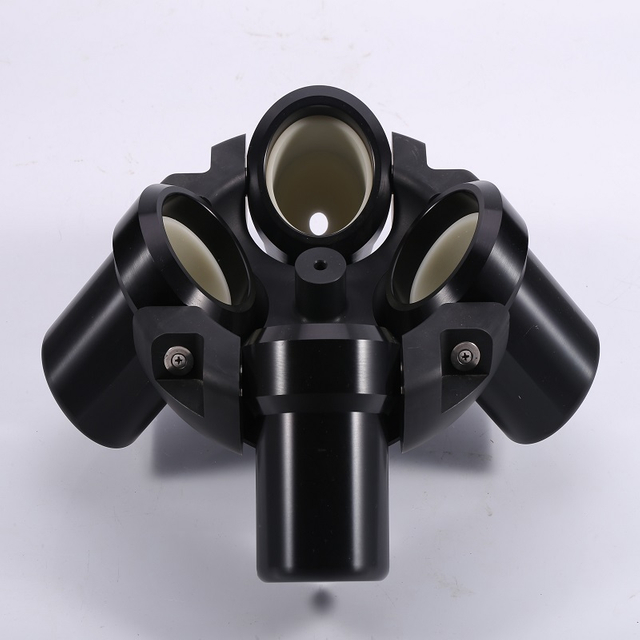

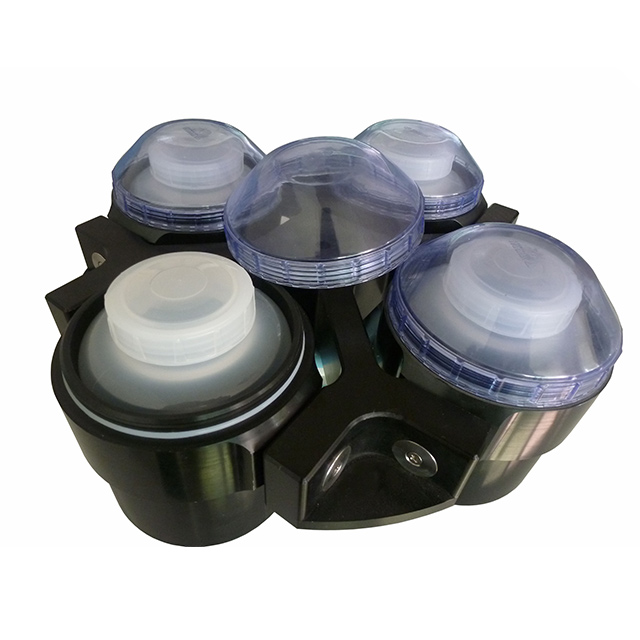

| Swing Rotor | 4000 | 4×500ml | 3380 |
5B-4 | Swing Rotor | 4000 | 4×4×96(well) | 2940 |
| 5B-5 | Microplate rotor | 4000 | 2×4×96(well) | 3210 |
5B-6 | 2×3×48(well) | 2300 | ||
5B-7
| Swing rotor | 5000 | 4×1×50ml | 4730 |
| 4×1×100ml | 4730 | |||
| 4000 | 4×2×100ml | 3020 | ||
| 4000 | 4×2×50ml | 3200 | ||
| 4000 | 4×4×15ml | 3200 | ||
| 4000 | 4×6×15ml | 3200 | ||

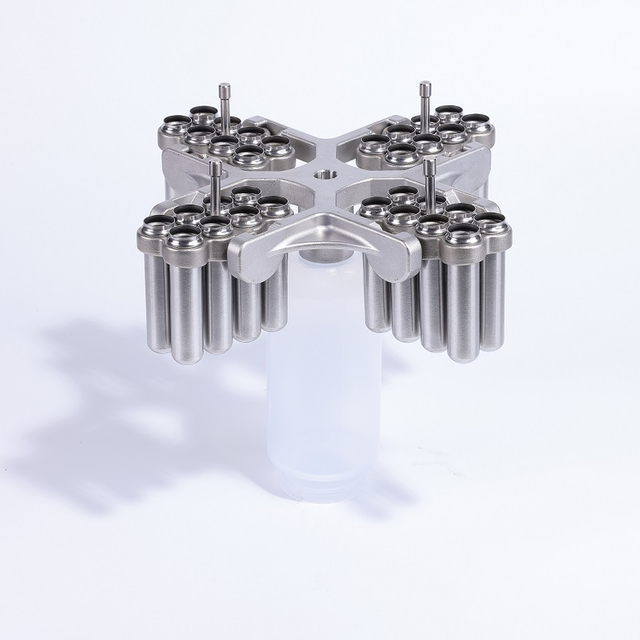

5B-8    | Swing rotor | 4000 | 4×8×15ml | 3200 |
| 4000 | 4×12×5ml vacuum tube | 2480 | ||

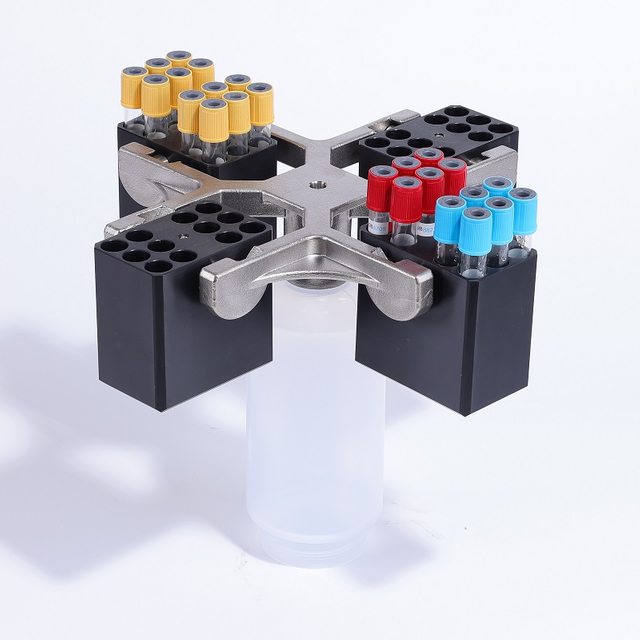

| 4000 | 4×12×7ml vacuum tube | 2760 | ||
| 4000 | 4×12×10ml vacuum tube | 2880 | ||
| 4000 | 4×8×10/7/5ml vacuum tube | 2790 | ||
| 4000 | 4×6×10/7/5ml vacuum tube | 2790 | ||
| 4000 | 4×4×10/7/5ml vacuum tube | 2790 | ||
| 5B-9 | Swing rotor | 4000 | 4×24×5ml vacuum tube | 2480 |
| 4000 | 4×31×5ml Khan tubes | 2480 | ||

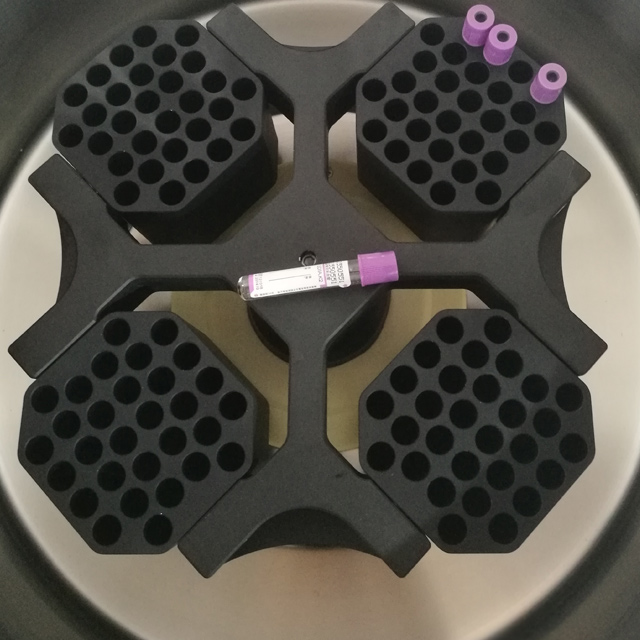

| 5B-10 | Swing rotor | 4000 | 4×24×7ml vacuum tube | 3140 |
| 4000 | 4×31×7ml Khan tubes | 3140 | ||
| 4000 | 4×30×7ml vacuum tube | 3140 | ||
| 4000 | 4×30×5ml vacuum tube | 3140 | ||
| 4000 | 4×40×7ml vacuum tube | 3270 | ||
| 4000 | 4×18×10ml vacuum tube | 3140 | ||
| 5B-11 | Swing rotor | 4000 | Dairy bottle | 3830 |

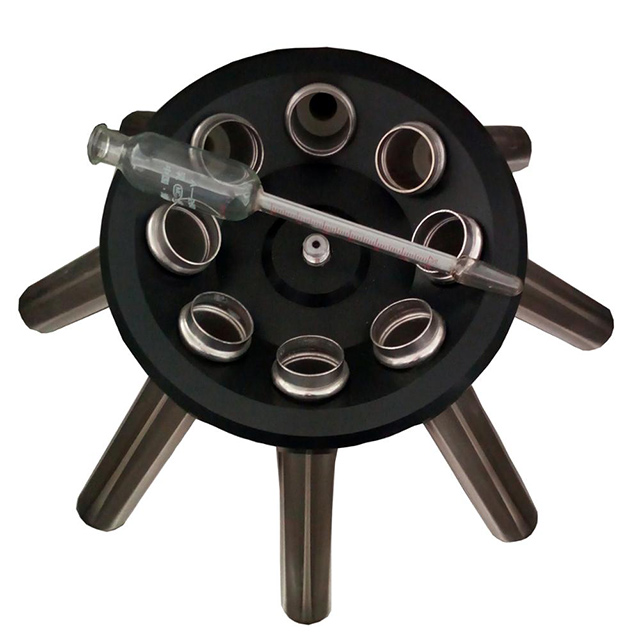

5B-12
| Fixed rotor | 5000 | 6×15ml | 2540 |
5B-13 | 5000 | 12×15ml | 3080 | |
5B-14 | 5000 | 24×15ml | 3500 | |
5B-15 | 5000 | 30×15ml | 3830 | |
5B-16 | 5000 | 4×50ml | 2520 | |
5B-17 | 5000 | 6×50ml | 2850 | |
5B-18 | 5000 | 12×50ml | 3860 | |
5B-19 | 4000 | 24×50ml | 2970 | |
5B-20 | 5000 | 4×100ml | 2630 | |
5B-21 | 5000 | 6×100ml | 3130 | |
5B-22 | 4000 | 12×100ml | 2970 |
