Mini 3
4000
PCR/ELISA Plate
No
2 pieces of plates
Availability: | |
---|---|
Quantity: | |

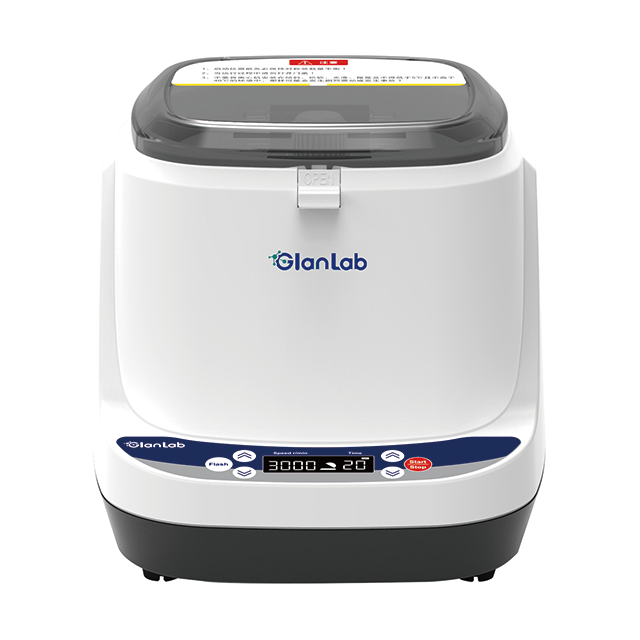

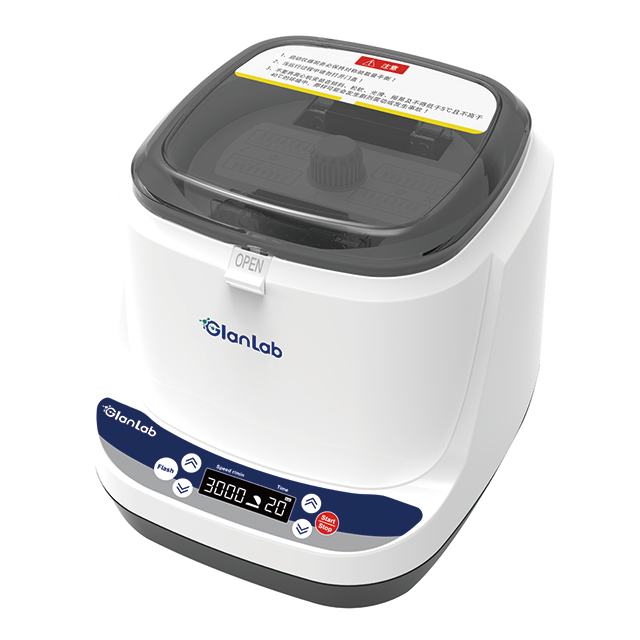

Featuring advanced international design concepts and manufacturing technologies, the microplate centrifuge boasts a sleek and aesthetically pleasing appearance, a compact and stable structure, high versatility, and user-friendly operation. It includes 'smooth start-up' and 'smooth braking' features. The microplate centrifuge is ideally suited for 96-well or 384-well plates, as well as small-volume microplates, including skirted and unskirted types and various standard PCR microplates.
Instrument Features:
Instantaneous centrifugation function rises to the maximum speed for about 6 seconds, enabling rapid separation of walled droplets;
Faster acceleration and deceleration rates to complete experiments in a shorter period of time;

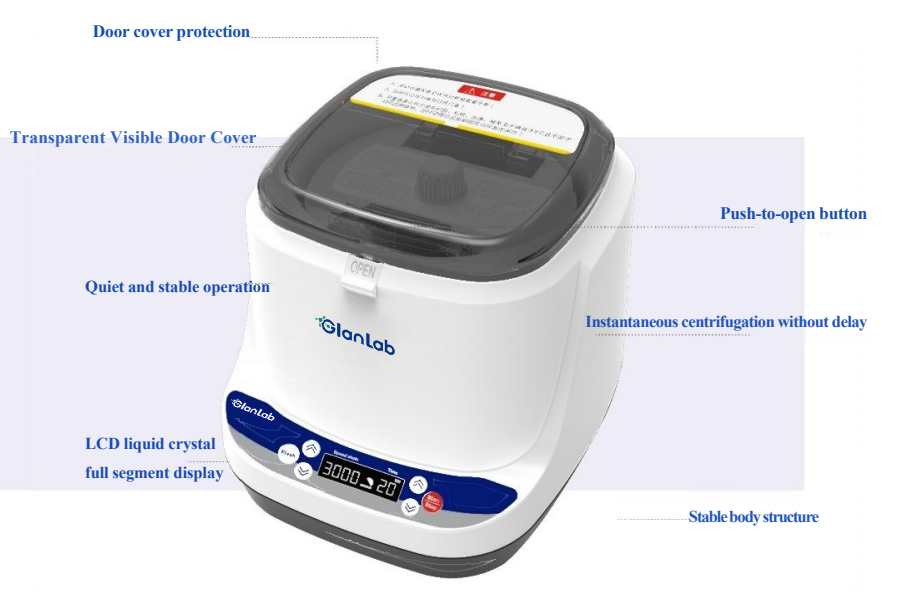

Door cover protection, overspeed and unbalance detection system, real-time monitoring of the centrifugation process to ensure Safe operation of the instrument;

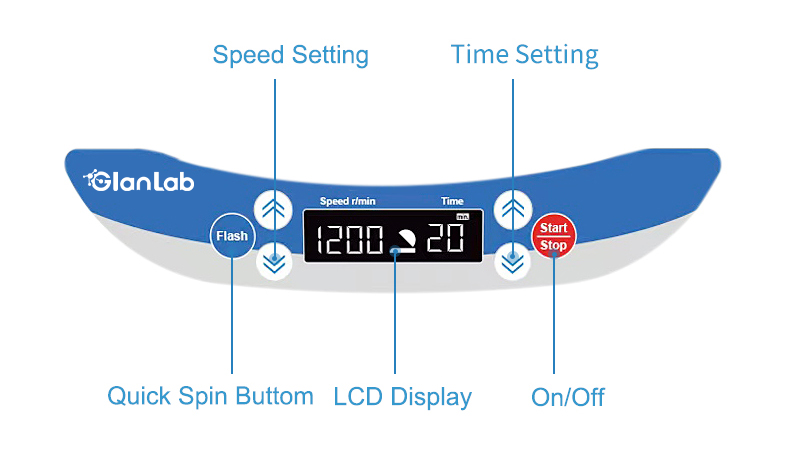

When the operation is finished, error or imbalance occurs, the sound signal will indicate and stop the operation at the same time, and the LCD will display the result code;
96 Well Microplate Centrifuge Parameters:
Mode | Mini-3 |
Voltage(V/Hz) | DC24V/2.75A |
Power | 55W |
Motor/Drive Type | DC24V Brushless Inverter Motor |
Display mode | LCD Display |
Time Range | 1-99min.1-59sec |
Rotation Speed | 300~3000±15rpm |
RPM increment | 10rpm |
Capacity | 2x96/384 ELISA Plate/PCR Plate 24x0.2ml PCR strips 192x0.2ml PCR strips |
Maximum RCF | 608×g |
Misoperation/Alarm Failure | Sound Prompt + Display Code |
Weight | 3.9Kg |
Noise | 60dB(A) |
Maximum Acceleration Time | ≤6s |
Maximum Deceleration Time | ≤5s |
Permissible Ambient/Relative Temperature | +5-40℃/80% |
Dimensions: DxWxH | 225mm*255mm*215mm |

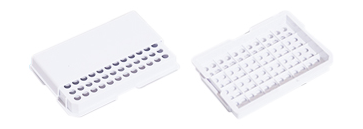

Accessories | ![]() |
Special for Microplate:
Stable | Efficien | ||
![]() | Timing speed regulation | ![]() | Instantaneous centrifugation |
![]() | Speed Adjustable | ![]() | Multiple modes |
![]() | Brushless motor | ![]() | Low noise operation |
Product Information:

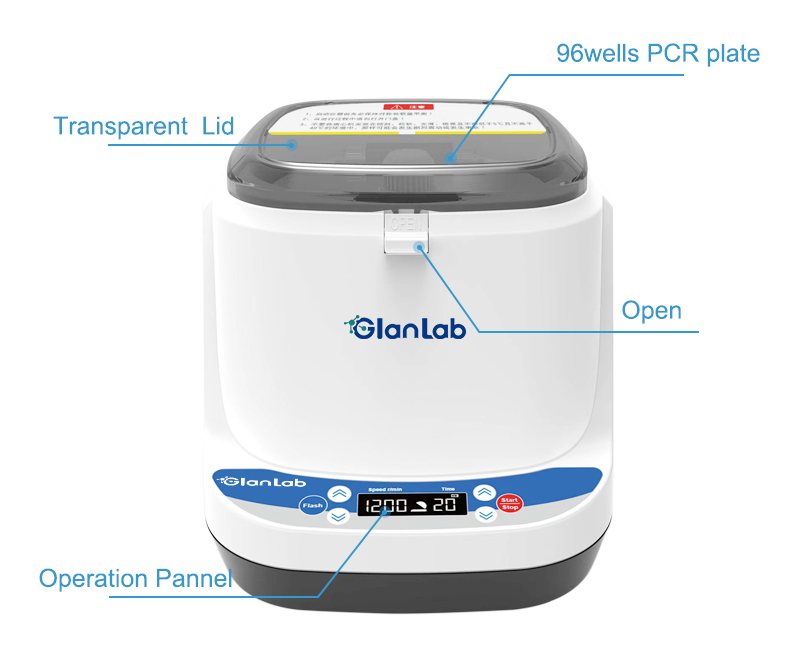

Product Details:
Special for Microplate:
Suitable for 96wells or 384wells microplate and also used for kind of standard PCR micrplate with or without skirt. | |
![]() | ![]() |

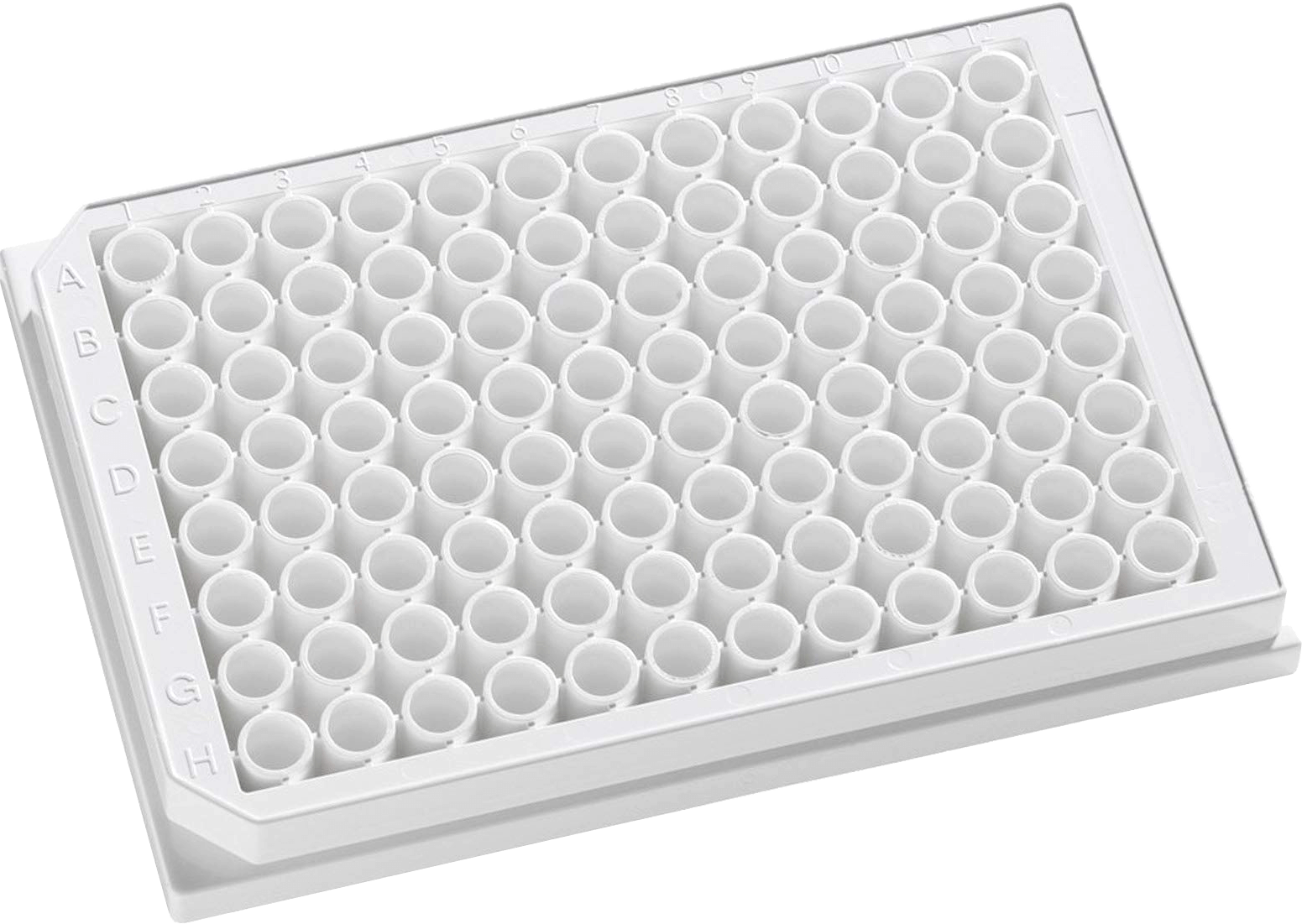

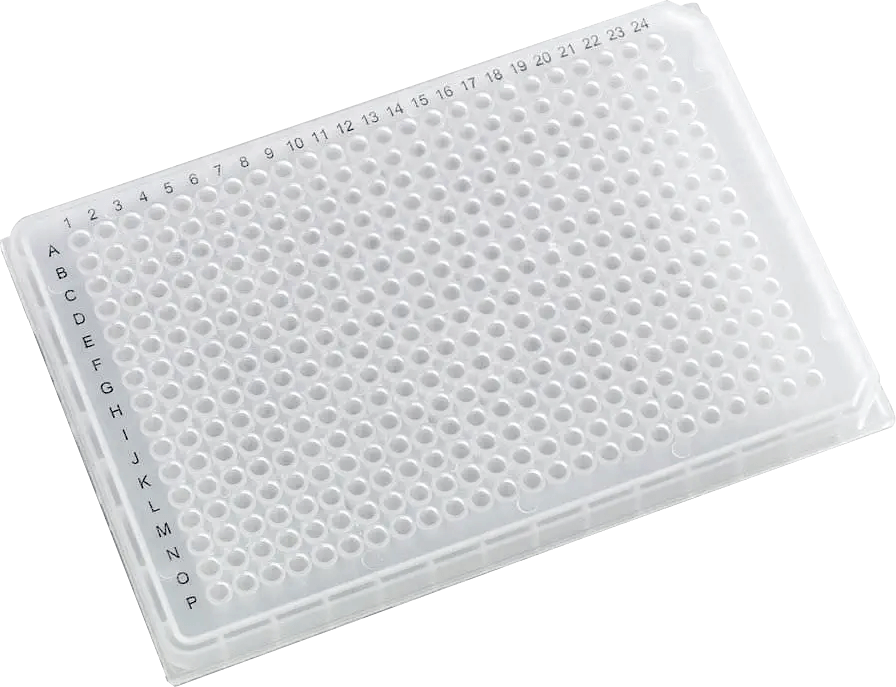

96 wells Plate | 384 wells plate |
Featuring advanced international design concepts and manufacturing technologies, the microplate centrifuge boasts a sleek and aesthetically pleasing appearance, a compact and stable structure, high versatility, and user-friendly operation. It includes 'smooth start-up' and 'smooth braking' features. The microplate centrifuge is ideally suited for 96-well or 384-well plates, as well as small-volume microplates, including skirted and unskirted types and various standard PCR microplates.
Instrument Features:
Instantaneous centrifugation function rises to the maximum speed for about 6 seconds, enabling rapid separation of walled droplets;
Faster acceleration and deceleration rates to complete experiments in a shorter period of time;
Door cover protection, overspeed and unbalance detection system, real-time monitoring of the centrifugation process to ensure Safe operation of the instrument;
When the operation is finished, error or imbalance occurs, the sound signal will indicate and stop the operation at the same time, and the LCD will display the result code;
