Benchtop Vs Floor-Standing Centrifuge: Which Is Better for Your Lab?

Choosing between a benchtop and a floor-standing centrifuge is not simply a matter of machine size. The better option depends on laboratory space, sample format, capacity per run, daily throughput, temperature control, budget, and future expansion. For routine 15 mL and 50 mL tubes, a benchtop model is often sufficient. A floor-standing model becomes more practical for large batches, blood bags, large-volume bottles, or continuous shared workloads. The right choice is the centrifuge that matches the actual workflow.

1. Main Difference in Footprint and Capacity

Benchtop Space vs Floor Space

A benchtop centrifuge is installed on a stable laboratory bench and can usually be added to an existing workspace with limited facility changes. Before ordering, check bench width, depth, load capacity, ventilation clearance, and lid-opening height.

A suitable benchtop centrifuge is practical when the laboratory wants quick sample access and has enough working surface.

However, benchtop models use valuable bench space. If the work surface is already occupied by preparation equipment or analyzers, a floor-standing centrifuge may improve the layout.

Capacity Depends on the Rotor Configuration

Machine size does not directly indicate usable sample capacity. Actual capacity depends on the rotor, buckets, adapters, tube dimensions, and permitted load.

One rotor may hold many 15 mL tubes but fewer 50 mL tubes after adapters are installed. Buyers should compare actual containers per run rather than chamber volume.

Installation and Operator Access

Installation height affects operation. A benchtop unit placed too high may be difficult to load when rotors are heavy. A floor-standing model may offer a lower loading position but still needs room for lid opening, ventilation, cleaning, and maintenance.

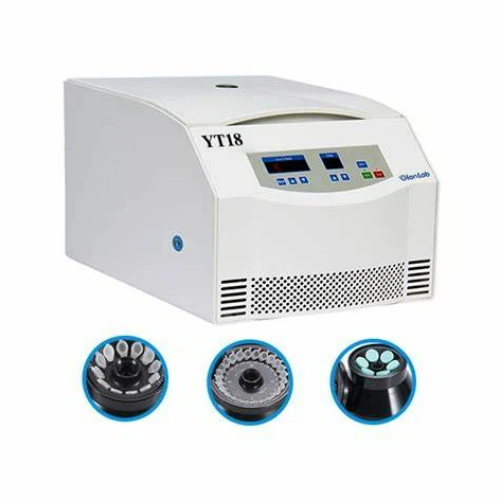

2. When Benchtop Centrifuges Are Enough

Routine 15 mL and 50 mL Tube Processing

Many clinical, research, cell culture, and quality-control laboratories mainly process 15 mL and 50 mL conical tubes. A benchtop model is often enough when the selected rotor holds the required number of tubes and reaches the target RCF.

The buyer should provide tube volume, diameter, height, tubes per run, and required RCF. Saying only that the centrifuge must accept 50 mL tubes is not enough because rotor capacity varies.

Moderate Sample Volume and Daily Throughput

A benchtop centrifuge is usually suitable when sample volume is stable and work can be completed without excessive repeat runs.

Average daily volume should not be the only measure. Peak periods also matter. A centrifuge may meet average demand but still create queues when many samples arrive at once.

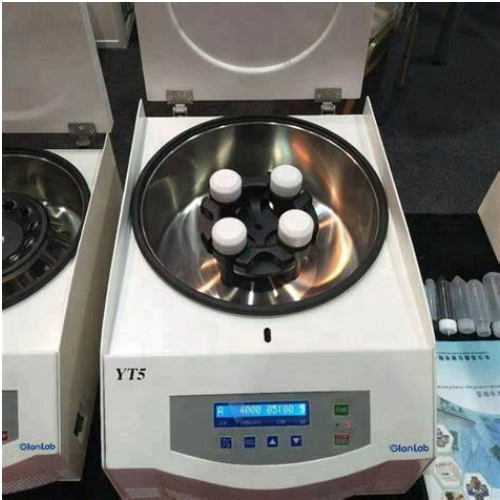

Flexible Rotor Options

A multipurpose benchtop model may support fixed-angle rotors, swing-out rotors, buckets, and adapters.

Fixed-angle rotors are commonly used for pelleting and higher RCF, while swing-out rotors are useful when upright tubes or a horizontal separation interface are required. Buyers should review the complete rotor and adapter list.

Budget and Installation Advantages

Benchtop models usually have a lower entry cost and are easier to transport and install. However, refrigeration, high speed, larger rotors, and multiple adapters can increase the total price.

The budget should include the centrifuge, rotor, buckets, adapters, freight, installation, spare parts, and maintenance.

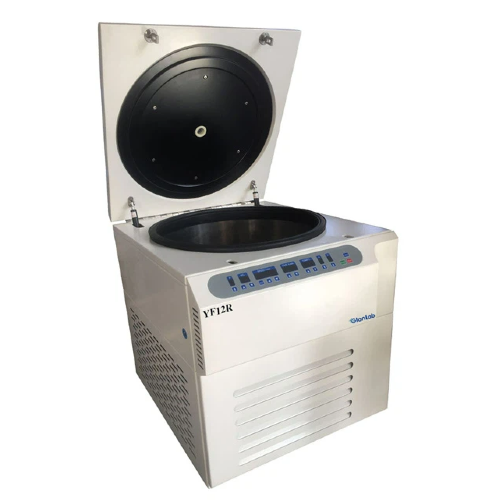

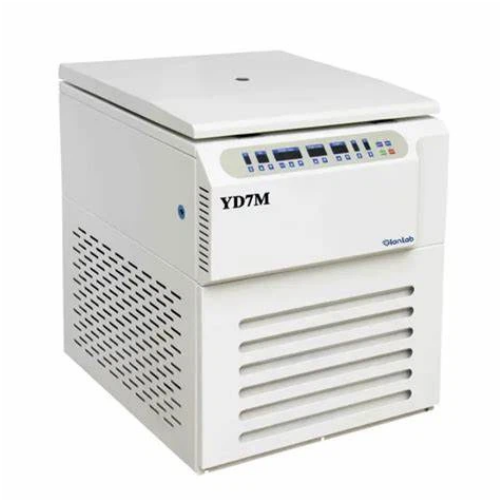

3. When Floor-Standing Centrifuges Make Sense

High Daily Throughput

A floor centrifuge becomes useful when the laboratory processes large numbers of samples repeatedly or when one unit is shared by several departments.

Its main benefit is not higher status but greater workflow capacity. A larger compatible rotor may reduce total runs, sample queues, and repetitive handling.

Blood Bags and Large-Volume Containers

Blood bags, large centrifuge bottles, and other heavy loads often require a larger rotor chamber, specialized buckets, or dedicated carriers.

For blood-bag work, confirm bag size, bags per run, loaded weight, carrier design, required RCF, temperature range, and balancing method. Not every floor-standing model is suitable.

Shared Equipment and Future Expansion

A floor-standing centrifuge may be a better long-term choice when several teams share one machine or future projects will increase sample volume.

Expansion capacity should still be realistic. Excess capacity increases purchase cost, energy use, space requirements, and maintenance.

Logistics and Installation

Floor-standing equipment is heavier and requires more delivery planning. Confirm packaging, unloading, doorway width, corridor turns, elevator capacity, voltage, frequency, plug type, and final placement before ordering.

4. Capacity per Run and Daily Throughput

Calculate Samples per Run

List the exact number and type of containers used in each batch. Two centrifuges with similar stated capacity may hold different numbers of 15 mL or 50 mL tubes.

Ask the supplier to provide capacity for each actual tube or bottle format and confirm whether adapters are included.

Calculate Runs per Day

A useful starting point is:

Daily samples ÷ actual samples per run = minimum number of runs

If 120 tubes must be processed during a peak period, a 24-place rotor requires at least five runs, while a 48-place rotor requires at least three. Also include loading, acceleration, spin time, deceleration, and unloading.

Include the Complete Operating Cycle

Throughput is not determined by spin time alone. It also includes balancing, loading, acceleration, braking, unloading, cleaning, and rotor changes.

A larger rotor may not improve productivity if the workflow frequently switches between tube formats.

Avoid Too Little or Too Much Capacity

Insufficient capacity causes queues and repeated handling. Excess capacity raises cost and may remain unused. The best choice should cover current peak demand and allow reasonable room for growth.

5. Refrigeration and Large-Volume Samples

When Refrigeration Is Necessary

Both benchtop and floor-standing centrifuges can be refrigerated. Cooling should be selected according to sample sensitivity, run duration, target RCF, and laboratory conditions.

Temperature-sensitive cells, proteins, and biological materials may require active cooling, especially during long or high-speed runs. Routine short runs with stable samples may not.

Large Bottles and Large-Volume Samples

A large capacity centrifuge should be selected according to the actual bottle, bag, suspension, or collection container rather than chamber volume alone.

Provide the supplier with container type, volume, dimensions, quantity per run, loaded weight, required RCF, and temperature requirement.

Rotor, Bucket, and Adapter Compatibility

The centrifuge body, rotor, bucket, and adapter must be evaluated as one system. A large chamber is not useful if the correct carrier is unavailable.

Verify container height, bottom shape, cap clearance, maximum loaded weight, and the speed limit of the selected rotor.

Cost and Maintenance of Refrigeration

Refrigerated models usually cost more and may require additional ventilation, power, cleaning, and maintenance. Condensation should be managed, and the chamber should be dried after use.

Refrigeration should be selected because the sample requires temperature control, not simply because it is available.

6. Buying Decision Table

There is no universal winner in the benchtop vs floor standing centrifuge comparison. A benchtop system is usually better for routine tubes, moderate workloads, simpler installation, and controlled cost. A floor-standing system is more suitable when large batches, blood bags, large-volume containers, or shared high-throughput use justify the additional space and investment.

Conclusion

The best centrifuge is the one that matches the laboratory’s real workflow. Choose a benchtop model for routine 15 mL and 50 mL tubes, moderate throughput, easier installation, and lower logistics complexity. Choose a floor-standing model when sustained high throughput, blood bags, large-volume samples, or shared use requires greater capacity.

GlanLab can help compare rotor options, tube compatibility, refrigeration, capacity, voltage, and delivery requirements. To receive a suitable model recommendation, contact us with your sample type, tube or container size, required RPM or RCF, samples per run, daily throughput, temperature requirement, voltage, and destination country.

FAQ

Is a floor-standing centrifuge always more powerful?
No. Speed, RCF, capacity, and refrigeration depend on the exact model and rotor.

Can a benchtop centrifuge process 15 mL and 50 mL tubes?
Yes, if the correct rotor and adapters are available and the required RCF can be reached.

Do blood bags always require a floor-standing centrifuge?
Not always, but blood-bag processing requires a verified carrier, load capacity, RCF, and temperature configuration.

Are refrigerated centrifuges only floor-standing models?
No. Refrigerated versions are available in both formats.
