Centrifuge Tube Size Guide: 1.5ml, 2ml, 5ml, 15ml, 50ml, Blood Tubes And Plates

Choosing a centrifuge by RPM alone is one of the easiest ways to buy the wrong model. Your centrifuge may have a high speed rating, but it will not help if the rotor cannot hold your tubes, if the adapter does not support the tube body, or if capped tubes are too tall for the bucket.

This centrifuge tube size guide helps lab buyers match common tube and plate formats with the right centrifuge category. It covers 0.2ml PCR tubes, 1.5ml and 2ml microtubes, 5ml tubes, blood tubes, 15ml and 50ml conical tubes, 96-well plates, 384-well plates, and deep-well plates. The focus is practical: tube fit, rotor type, adapter compatibility, RCF, capacity, balance, and temperature needs.

Why Tube Size Comes Before Centrifuge Speed

Tube volume is only the first detail. A 15ml tube from one brand may have a different height, cap shape, or shoulder design from another. A 5ml tube may mean a microtube, a clinical tube, or a blood collection tube. A 96-well plate may be skirted, semi-skirted, sealed, low-profile, or deep-well.

The centrifuge body does not decide tube compatibility by itself. Compatibility depends on the rotor, bucket, insert, and adapter. Before choosing a model, buyers should confirm tube diameter, total height, cap clearance, bottom shape, tube brand, sample volume, and required RCF.

Tube size also affects workflow. A rotor for 24 × 1.5ml tubes is useful for small-volume molecular work, but it cannot replace a rotor for 15ml or 50ml conical tubes. A plate centrifuge may be ideal for PCR plates, but unsuitable for routine conical tube processing. The right centrifuge is the one that fits the sample format safely and supports the daily workload.

Quick Tube and Plate Matching Table

0.2ml PCR Tubes and PCR Strips

0.2ml PCR tubes and PCR strips are usually used for quick spin-down, not heavy separation. Labs use them to collect droplets from tube walls, bring reagents to the bottom, or prepare samples before PCR-related steps.

Buyers should confirm whether the centrifuge supports single PCR tubes, 8-strip tubes, or plates. Cap style also matters. Domed caps, flat caps, strip caps, and sealed formats can affect rotor clearance. If your lab uses both PCR strips and 96-well plates, check whether one centrifuge can support both formats.

1.5ml and 2ml Microtubes

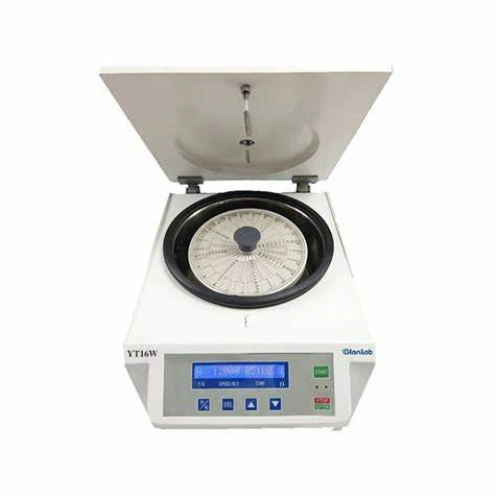

1.5ml and 2ml microtubes are common in DNA/RNA preparation, protein handling, enzyme work, and small-volume research. These tubes are usually matched with a fixed-angle microtube rotor. For labs mainly using this format, a micro centrifuge is usually the first category to evaluate.

When comparing models, check rotor capacity, maximum RCF, lid safety, noise level, braking behavior, and whether cooling is needed. Higher RCF is not always better. The required force depends on the sample, tube rating, reagent system, and lab method.

Capacity should also match daily workload. A small lab may only need a compact rotor, while a busy molecular biology lab may need more positions per run. Always calculate usable balanced loading, not only catalog capacity.

5ml, 7ml, and 10ml Blood Tubes

The term “5ml tube” is not specific enough. It may refer to a 5ml microtube, a small round-bottom tube, a clinical tube, or a blood collection tube. These formats may differ in diameter, height, cap design, and bottom shape.

For blood collection tubes, buyers should pay attention to tube height, cap clearance, rotor angle, and sample capacity. A swing-out rotor is often preferred when horizontal separation is important, while fixed-angle options may be used depending on laboratory SOP.

For routine blood sample preparation, a blood centrifuge should be selected according to tube size, number of samples per run, and daily workload. A small clinic may need a compact model, while a busy lab may need higher capacity and stronger continuous-use performance.

15ml and 50ml Conical Tubes

15ml conical tubes are widely used in cell culture, washing, food testing, environmental testing, teaching labs, and general sample preparation. A centrifuge for 15ml tubes must have a rotor or adapter that matches the tube diameter, height, cap style, and bottom shape.

50ml conical tubes need more attention because they are taller and heavier. Buyers should check the number of 50ml positions per run, adapter depth, tube angle, maximum RCF, and imbalance protection.

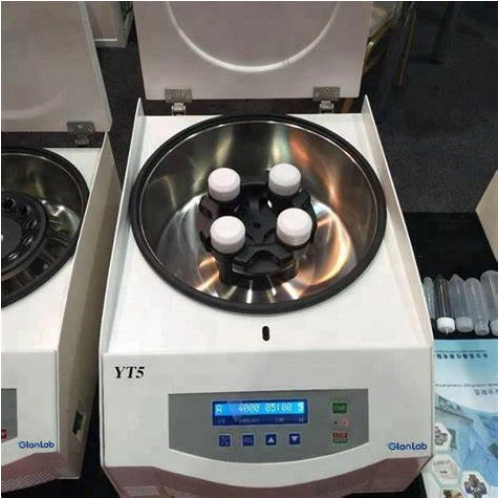

Many labs using 15ml and 50ml tubes choose a benchtop centrifuge because it offers a practical balance of capacity, footprint, and rotor flexibility. Still, not every benchtop model fits every conical tube. The rotor, bucket, adapter, and tube dimensions must be confirmed before ordering.

Cooling may also matter. Short routine runs may not require refrigeration, but longer runs, protein-related samples, cell-related samples, or temperature-sensitive materials may need a refrigerated model.

96-Well, 384-Well, and Deep-Well Plates

Plate users should select by plate format, not only by speed. A 96-well PCR plate, 384-well plate, skirted plate, semi-skirted plate, non-skirted plate, or deep-well plate may require different clearance.

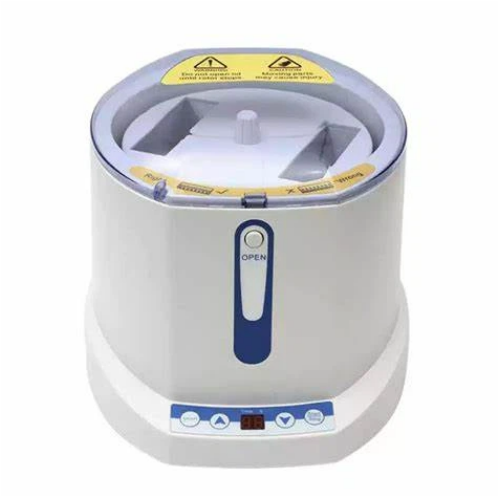

For plate-based workflows, buyers should consider a plate centrifuge instead of assuming that a standard tube centrifuge can handle plates. Plate centrifuges are often used for PCR preparation, droplet collection, ELISA work, and high-throughput sample preparation.

Plate thickness and sealing method should be confirmed. Sealing film, cap mats, skirt structure, and deep-well depth may all affect compatibility. Buyers should provide the exact plate type and dimensions before requesting a recommendation.

Adapters, Balance, and Real Capacity

Adapters help one rotor or bucket support different tube sizes, but they do not make all tubes universal. The adapter must match the centrifuge model, rotor, tube diameter, tube height, cap clearance, and sample volume.

Balance is also critical. Tubes or buckets should be balanced by mass, not only by visual volume. Uneven loading can cause vibration, automatic shutdown, rotor stress, sample loss, or long-term mechanical wear.

The listed capacity of a centrifuge should be checked carefully. A rotor may show 24 positions, but usable capacity depends on tube size, adapter type, balancing rules, and whether mixed tube formats are used.

Buyer Checklist Before Ordering

The selection logic is simple. 1.5ml and 2ml microtubes usually require a micro centrifuge. Blood tubes should be matched with blood or clinical centrifuge configurations. 15ml and 50ml conical tubes often need a benchtop or larger-capacity model with suitable rotors and adapters. PCR plates and microplates require plate-compatible centrifuges.

Conclusion

A centrifuge is only useful if it fits the actual tubes, plates, and sample workflow in your lab. Before comparing speed or price, confirm tube size, tube height, cap clearance, rotor type, adapter support, capacity per run, and RCF requirement.

If your lab uses several formats, such as 1.5ml tubes, 15ml tubes, 50ml tubes, and PCR plates, confirm whether one centrifuge can cover them through different rotors or whether separate models are more practical.

If you are not sure which centrifuge matches your tube size, send your sample type, tube or plate size, tube dimensions, required RPM or RCF, capacity per run, temperature requirement, and voltage to contact us.

FAQ

Can one centrifuge handle 1.5ml, 15ml, 50ml tubes, and plates?

One centrifuge body may support multiple formats if compatible rotors, buckets, and adapters are available. Universal compatibility should not be assumed.

What centrifuge should I choose for 15ml tubes?

For 15ml tubes, many buyers consider a general-purpose benchtop or low-speed centrifuge. The correct choice depends on tube dimensions, adapter type, RCF requirement, and rotor style.

What centrifuge should I choose for 50ml tubes?

For 50ml tubes, check 50ml positions per run, adapter depth, rotor support, maximum RCF, and imbalance protection.

Are blood tubes the same as 5ml, 7ml, or 10ml centrifuge tubes?

Not always. Blood tubes may have similar nominal volumes, but height, cap type, and workflow requirements can differ.

Is RPM enough to choose a centrifuge?

No. Buyers should also check RCF, rotor radius, tube rating, rotor type, adapter compatibility, capacity, and cooling requirement.
