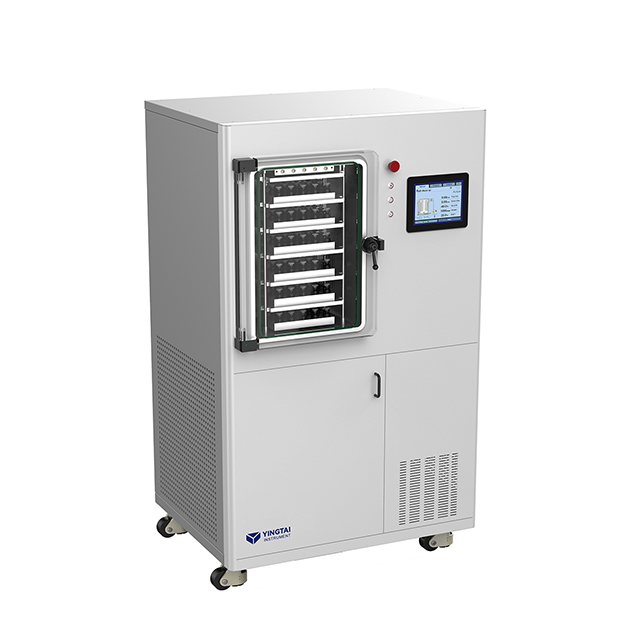

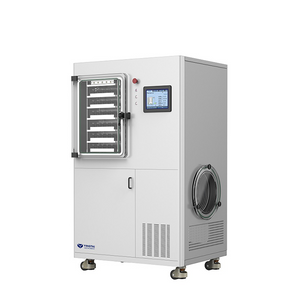

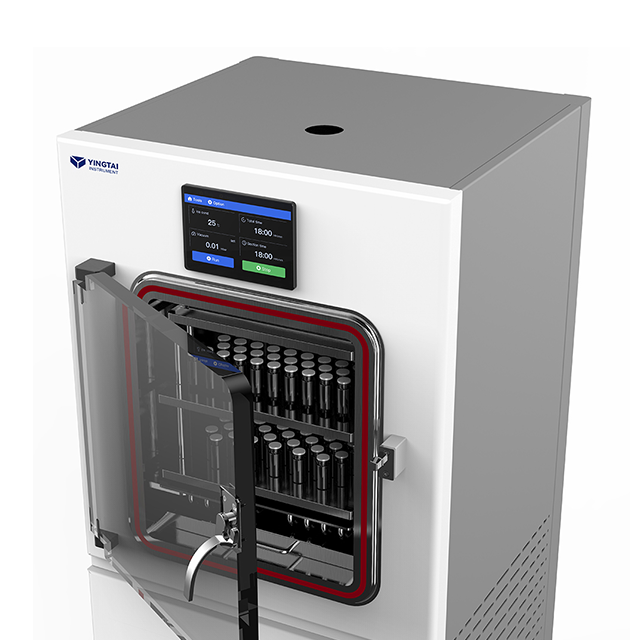

Pilot-Scale Freeze Dryer

Yingtai Pilot-Scale Freeze Dryer ice condesation capacity is 8-24kgs.
  • EX2,EX-5,EX-8,EX12

  • Glanlab

Availability:
Quantity:

Character

High flatness sample shelf:

Silicone oil thermal conductive shelf, high-precision processing method of upper and lower clamping, shelf temperature uniformity can reach ±0.5°c


Integrated cavity:

Integrated chamber, the shelf and cold trap are located in the same chamber, the steam conduction is faster and the freeze-drying effect is better


Refrierating and heating control system:

Using thermally conductive silicone oil with a high temperature range and precise PID control algorithm, the control accuracy can reach ±0.5°C. Sample shelf temperature range: -70°C~ +80°C


Freeze-drying endpoint testing system:

The pressure comparison method is used to determine the freeze-drying end point. The freeze-drying end point test can be automatically performed after the analytical drying stage to ensure that the moisture content of the material reaches the standard requirements.


Vacuum precise control and adjustment system:

The sublimation and analytical drying processes are controlled and adjusted with high precision to make the freeze-drying process warmer and the sample sublimation more reliable.


Pulse backfill system:

Three backfilling modes can be selected: slow, medium and fast, which avoids the problem of effective substances being blown away and lost due to the aeration of granular and flocculent materials after freeze-drying.


Manual automatic mode selection:

Manual mode is used to explore process parameters (strong human intervention), automatic mode is used in the mature stage of the process, one-click operation, simple and convenient


Data recording and analysis system:

Through the PC host computer, all operating parameters and background parameters of the equipment can be recorded in real time, and all parameter action changes and action changes of operating components can be recorded.


Freeze-drying process recipe storage function:

The host can store 60 sets of fixed or user-defined freeze-drying process recipes, and the PC can store >10,000 programs (depending on the computer hard drive)


Eutectic point test function:

The eutectic point temperature of the product can be tested offline and online, and the spectrum can be analyzed manually or automatically (optional)


Remote control system:

The operating status of the device can be monitored remotely, and the device can be monitored in real time via WiFi or the cloud.


Mobile phone monitoring system:

You can monitor the operating status of the equipment with your mobile phone, which is simple and convenient (optional)


Cold trap defrost system:

The hot air defrosting method has high safety performance; the defrosting speed is fast, which solves the inconvenience caused by traditional immersion defrosting.


Parameter

Model

EX2

EX5

EX8

EX12

Freeze-area

0.24m²

0.38m²

0.96m²

1.45m²

Ice coagulating capacity

4kg

9kg

12kg

18kg

Shelf temperature

70℃~+80℃

-65℃~+70℃

Cold trap temperature

-70/-90℃

-70/-90℃

-70℃/-90℃

-70℃/-85℃

Cold trap volume

9L

15L

18L

30L

chamber type

single

double

Shelf size

275*400 mm

275*400 mm

365*465 mm

365*465 mm

Shelf spacing

100mm(adjustable)

100mm(adjustable

70mm(adjustable)

70mm(adjustable)

Sample quantity (4R Cillin bottle)

558

1395

2630

4230

Shelf heating and cooling method

Thermal conducting silicone oil medium(temperature resistance: -100℃~+600℃)

Chamber and shelf surface

High vacuum stainless steel tube/KF25-40

vacuum line

High vacuum stainless steel tube

KF50

External valve port

6/

12/

18/

equipment power

3.8kw

5.5kw

6.5kw

8kw

equipment size

700*588*1600 mm

1030*700*1630 mm

1030*700*1850 mm

1500*850*1900 mm

Capping mode

Hydraulic system gland device/no gland

hydraulic pressure

Suitable clean room

Suitable

Vacuum sensor type

Pirani Vacuum sensor/Capacitive vacuum sensor

Remote control and alarm

Support 2G/4G/GSM/Wi-Fi

Terminal judgment function

Pressure contrast method

Pressure test/pressure contrast method

Freeze dryer front door cover

Stainless steel/Plexiglass

Stainless steel

Inert gas filling

(Optional) Sufficient amount and time for the program to run itself

User function customization

Can be customized and modified according to user needs

sterilization method

H2O2/steam sterilization
