Blood Tube Centrifuge Guide: Match Tube Size, Rotor And Capacity

A blood tube centrifuge should be selected according to the exact tube dimensions, rotor configuration, adapters, tubes per run, and daily sample volume. Labels such as 5 mL, 7 mL, or 10 mL describe nominal capacity, but they do not fully describe the tube’s diameter, height, cap, or bottom shape.

GlanLab recommends confirming the complete tube-and-rotor configuration before ordering a blood centrifuge. Clinics and laboratories should not assume that one model accepts every blood collection tube brand. Supplying the tube product number and external dimensions helps the supplier confirm fit, usable capacity, and safe loading.

1. Start With Blood Tube Dimensions

Nominal Volume Does Not Define Tube Size

Two blood collection tubes with the same stated volume may have different external dimensions. A 5 mL tube can be longer than another 5 mL tube, while some 10 mL tubes may require a wider or deeper holder.

Before comparing centrifuges, record the tube’s outer diameter, total height, cap dimensions, and bottom shape. These details determine whether the tube fits the rotor opening, sits correctly in an adapter, and remains below the centrifuge lid.

Measure the Tube With the Cap Installed

Vacuum blood collection tubes should be measured at their widest and tallest points. The total height must include the cap because a tall cap may interfere with the lid or nearby tubes.

Common vacuum tube formats may include 13 × 75 mm, 13 × 100 mm, or 16 × 100 mm, but these should only be treated as references. The exact dimensions must come from the tube manufacturer or direct measurement.

For additional examples covering blood tubes and other laboratory formats, see the centrifuge tube size guide.

2. Common Blood Tube Capacities

5 mL Blood Tubes

Five-milliliter tubes are common in routine serum and plasma workflows, but their dimensions are not standardized across all brands. Some fit standard blood tube inserts, while others need a dedicated sleeve or adapter.

The laboratory should confirm whether the selected holder supports the tube body rather than leaving the tube suspended by the cap or upper rim.

7 mL Blood Tubes

A 7 mL label does not guarantee the same diameter or height across different collection systems. Changing tube suppliers may therefore require another compatibility check, even when the stated volume remains unchanged.

Laboratories should also distinguish between draw volume and the tube’s total physical capacity. These values do not always describe the same thing.

10 mL Blood Tubes

Ten-milliliter blood tubes may be wider, taller, or heavier when filled. They can require deeper buckets, larger inserts, or fewer positions per rotor.

A centrifuge may hold many smaller tubes but accept fewer 10 mL tubes after the correct adapters are installed.

These categories are starting points only. Final compatibility depends on the tube, rotor, bucket, insert, and adapter combination.

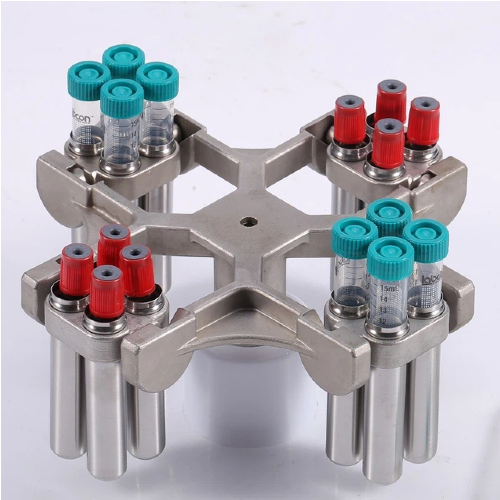

3. Swing-Out Rotor and Adapters

Why Swing-Out Rotors Are Common for Blood Tubes

A swing-out rotor keeps the buckets vertical while the centrifuge is stopped. As speed increases, the buckets move outward and the tubes approach a horizontal position.

This arrangement makes upright loading convenient and can support a flatter separation interface in many blood tube workflows. However, a swing-out rotor should not automatically be treated as suitable for every sample. The laboratory SOP and tube instructions remain the main references.

Check the Complete Rotor Assembly

The bucket alone does not confirm tube compatibility. The complete configuration should be reviewed:

Rotor → bucket → insert or adapter → blood tube

A large bucket may support several adapter types, but every insert has limits for tube diameter, height, and maximum load. The tube should remain stable without excessive movement.

Adapters Affect Usable Capacity

Adapters help one rotor accept several tube formats, but they may reduce the number of available positions. A bucket advertised for a certain capacity may hold fewer tubes after the required inserts are installed.

Ask the supplier to confirm:

Tube dimensions accepted by the adapter

Number of adapters included

Maximum tube height

Balanced loading arrangement

Maximum safe load per bucket

When possible, provide tube photographs or physical samples before the configuration is finalized.

4. Capacity per Run vs Daily Sample Volume

Advertised Capacity May Differ From Practical Capacity

A 24-position rotor is only a 24-tube solution when all positions accept the selected blood tube and the load can be balanced correctly. Wider tubes, mixed sizes, and larger adapters can reduce practical capacity.

The laboratory should calculate usable tubes per run using the actual blood collection tubes rather than relying only on the rotor name.

Plan for the Busiest Period

Average daily volume may hide short periods of high demand. A centrifuge could process all samples by the end of the day but still create delays when several batches arrive at once.

Use the following calculation:

Peak blood tubes per hour ÷ usable tubes per balanced run = minimum cycles during the busiest hour

Total cycle time should include loading, acceleration, centrifugation, braking, unloading, and basic cleaning.

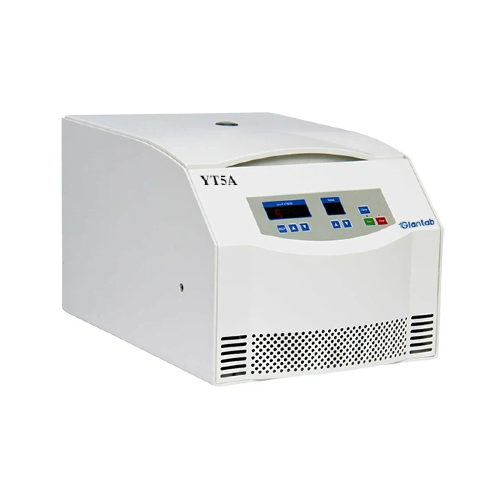

When a Low-Speed Centrifuge Is Practical

Routine blood tube processing often depends more on capacity, swing-out options, and stable operation than on very high rotational speed. A low speed centrifuge may provide broader rotor choices for clinics, hospitals, or testing facilities handling multiple blood tubes.

The exact model must still be matched to the tube dimensions, approved RCF or RPM, run time, and adapter requirements.

5. Balancing and Safety for Blood Tubes

Balance Tubes Symmetrically

Opposing tubes should be matched according to the rotor instructions. Similar fill volume does not always mean equal mass when the tubes, caps, additives, or adapters differ.

When a separate balance tube is needed, use a compatible tube and suitable balancing liquid. Correct balancing helps reduce vibration, rotor wear, and unstable operation.

Install Swing-Out Buckets Correctly

Buckets and inserts should be installed according to the rotor manual. Opposing positions must be arranged symmetrically, and all required buckets should be fitted before operation.

Before each run, staff should check for:

Cracked or leaking blood tubes

Loose caps

Damaged adapters

Corrosion or deformation

Incorrect bucket installation

Residue inside the rotor or holder

Confirm Lid Lock and Imbalance Protection

A safety lid lock should prevent the lid from opening while the rotor is moving. The centrifuge should only begin operation after the lid is secured.

Imbalance detection provides additional protection, but it does not replace correct loading. Operators must still follow the rotor’s approved loading pattern and maximum capacity.

6. Quotation Checklist

A useful quotation should identify the centrifuge, rotor, buckets, and adapters as one complete configuration.

Tube and Capacity Information

Operating and Installation Information

Where tube fit is uncertain, submit a technical drawing, clear photographs with a ruler, or physical samples. Written compatibility confirmation is preferable before ordering.

Conclusion

Selecting a blood tube centrifuge requires more than choosing a rotor marked for 5, 7, or 10 mL tubes. Tube diameter, vacuum tube height, cap clearance, adapters, swing-out configuration, tubes per run, daily workload, balancing, and lid safety must be considered together.

GlanLab recommends submitting the exact tube product number and dimensions rather than assuming compatibility across different blood collection brands. To confirm a centrifuge, rotor, and adapter configuration, contact us with your tube details, required capacity, operating settings, and local voltage.

FAQ

Can one rotor hold 5, 7, and 10 mL blood tubes?

Possibly, when matching inserts are available. Confirm every tube’s dimensions.

Is tube volume enough to confirm compatibility?

No. Diameter, height, cap clearance, and bottom shape also matter.

Is a swing-out rotor suitable for blood tubes?

It is common, but the tube instructions and laboratory SOP should guide selection.

How many tubes should a centrifuge hold?

Choose capacity from peak sample demand and usable balanced positions.

What safety functions should be checked?

Look for a secure lid lock, imbalance protection, and clear loading instructions.
