YT4A
5mL 7mL 10mL 15mL 20mL 50mL
4000rpm
2390xg
No
6×50ml
| Quantity: | |
|---|---|

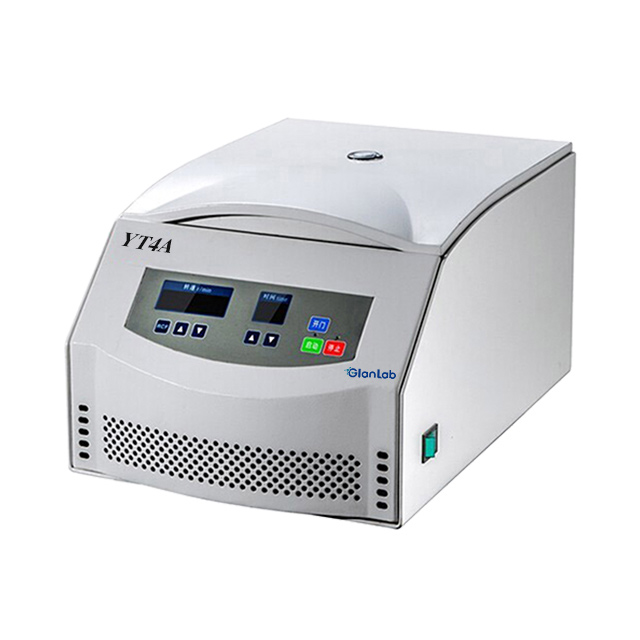

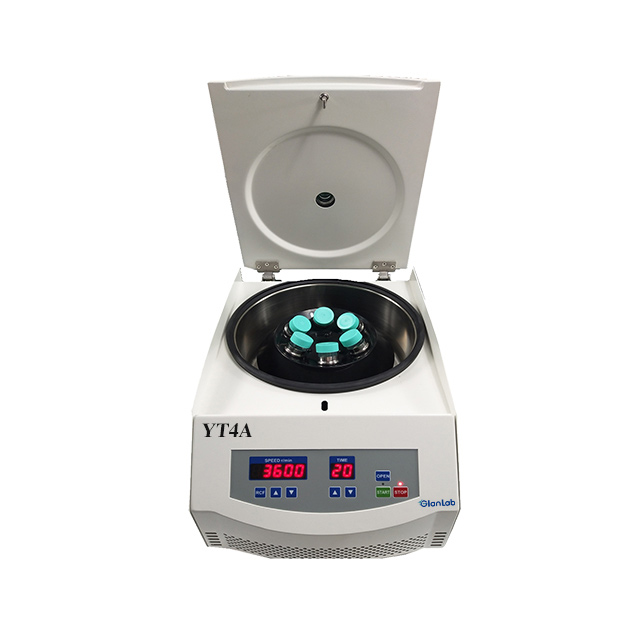

YT4A 4000rpm(2390×g), 6×50ml，Low Speed Centrifuge, Blood Centrifuge
YT4A Features:
1. YT4A centrifuge is of microprocessor control, less noisily, it is widely used to qualitative analysis of blood serum, plasma and urea in the fields of hospital, blood center, laboratory and biochemistry.
2. Brushless motor, free maintenance, no powder pollution, quick in speed up and down.
3. The flexible axle driven system which drive the rotor directly, smooth in operation and small vibration.
4. There are many rotors for your choice, suitable for different specifications meet customers’ different requirements of separation.
5. Micro computer control system, LED display the RCF，time and speed.
6 .Electric lid lock, compact design, super speed and imbalance protection.
YT4A Technical Parameters:
| Max. Speed | 4000rpm |
| Max. RCF | 2390×g |
| Max. Capacity | 6×50ml |
| Time Range | 0~99min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 45 |
| Temperature | Normal |
| Acc/Dec | 10 Kinds |
| Speed Accuracy | ±10r/min |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 485×320×255mm |
| Net Weight(Kg) | 18KG |
| Certificates | CE,ISO & Calibration report are available |

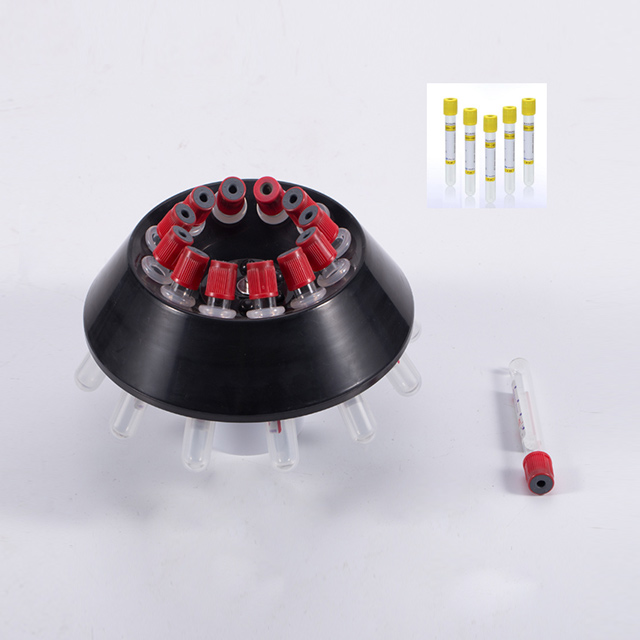

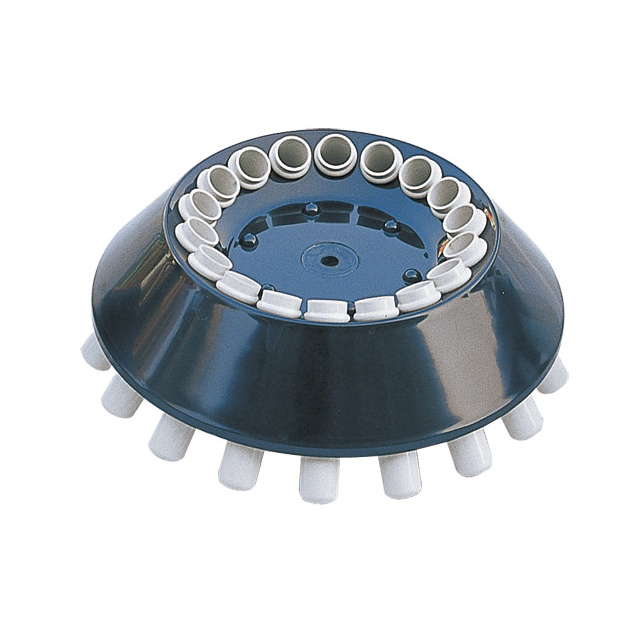

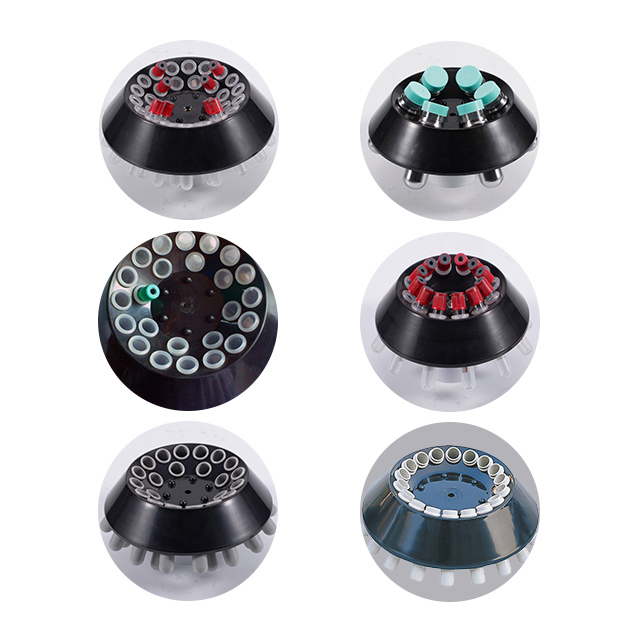

Matched Rotors for YT4A
| Order No. | Rotor | Max Speed (rpm) | Max Volume (ml) | Max.RCF （×g） |
NO31605
| Angle Rotor | 4000 | 30×7/5ml | 2250 |

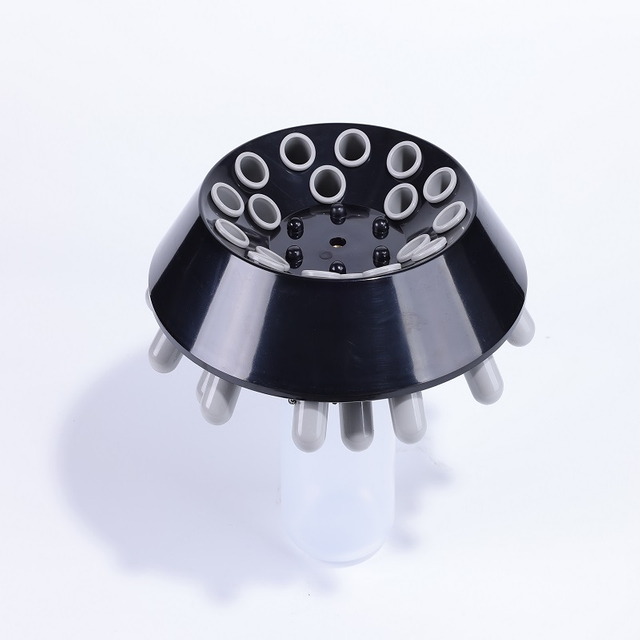

NO31604
| Angle Rotor | 4000 | 18×10ml | 2250 |
NO31607
| Angle Rotor | 4000 | 24×10ml | 2200 |
NO31602
| Angle Rotor | 4000 | 12×15/7/5ml | 2150 |
NO31603
| Angle Rotor | 4000 | 12×20ml | 2220 |

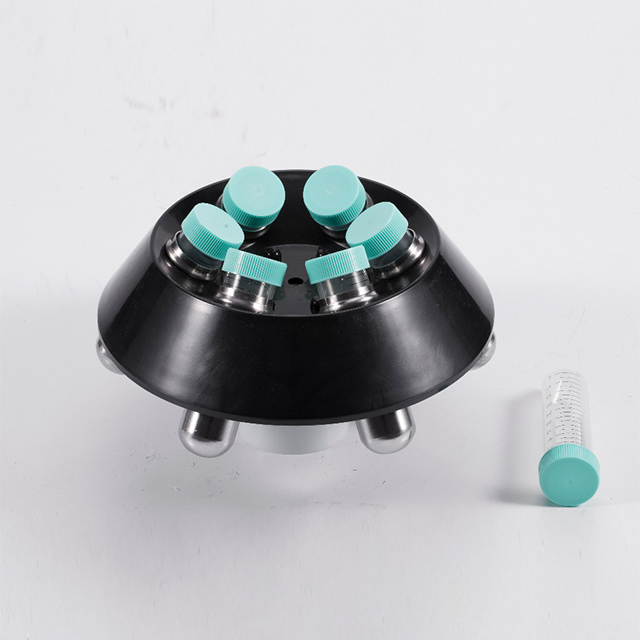

NO31606
| Angle Rotor | 4000 | 6×50ml | 2100 |
NO31601
| Angle Rotor | 4000 | 12×10/7/5ml | 2150 |
NO32665
| Swing Rotor | 4000 | 6×10/7/5ml | 2390 |
