BD1-9, BD2-9, BD1-12,BD2-12
Glanlab
Availability: | |
---|---|
Quantity: | |
Features:
Large capacity water capture freeze dryer.

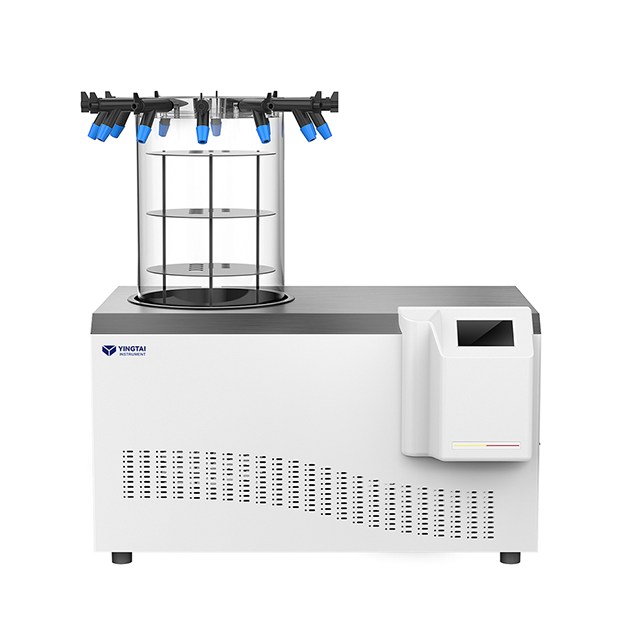

Tabletop medium-sized freeze dryer.
Suitable for drying medium-sized samples.
Apply to drying in laboratories such as cosmetics, fermentation broth, soil, materials, etc.
product description:
9kg-12kgs water capture capacity, which can meet the needs of laboratories with large freeze-drying requirements for water capture capacity.
-70°C/-90°C ultra-low temperature cold trap, which can capture lower temperature organic solvents.
Unique refrigeration technology, the cooling time of the cold trap from the start of the low-temperature refrigeration system to the target value is ≤3 minutes.
Direct-capture large coil cold trap, higher efficiency, better ice capture effect.
Hemispherical cold trap bottom surface is more conducive to the discharge of condensed water.
The cold trap and condenser coil are all Teflon anti-corrosion treatment, which can freeze-dry a large amount of ultra-low temperature organic solvents.
One-click hot gas defrost, with defrost compressor protection program.
Large flat flange silicone seal, permanently no need to apply any auxiliary sealing silicone grease.
High-precision ultra-wide width detection, vacuum sensor with full-range automatic temperature compensation, making vacuum display more accurate.
The cavity vacuum can be read and controlled accurately, and the vacuum control accuracy is ≤0.1mbar.
Removable sample shelf with dedicated holes for centrifuge tube placement, making placement and height adjustment easier.
Configuration of various types of chambers and T-frames can fully satisfy users' sample placement.
Optional configuration of eutectic point detection system and data export system.
The vacuum pump and sample placement chamber can be combined at will according to user needs, making the configuration more flexible and convenient.
Techinical parameter
9-12L Floor tabletop and floor standing one for lab usage
Tabletop | BD1-9 | BD2-9 | BD1-12 | BD2-12 |
Floor standing | BH1-9 | BH2-9 | BH1-12 | BH2-12 |
Water Capture capacity | 9L | 12L | ||
Cold trap temperature | -70 C | -90℃ | -70C° | -90℃ |
Cold trap volume | 15L | 20L | ||
Freeze dried chamber | High permeability organic glass/multi manifold external valve/stainless steel chamber | |||
Sample shelf | Stainless steel φ 260mm/485mm. 3-10 layers/optional ●Electric heating/manual capping/optional | |||
Vacuum pump | Extreme vacuum 4 * 10-4mbar, pumping capacity ≥ 200L/can be equipped with various types of pumps | |||
Oil mist filter | Standard configuration | |||
Vacuum pump connection pipe | Single forming stainless steel flexible pipe DN16 ISO-KF L-1.5m | |||
anti-corrosive treatment | Cold trap, condensing coil/all equipped with PTFE anti-corrosion treatment as standard. Freeze-drying organic solvents | |||
External valve | 1-48 ports/optional | |||
Eutectic point judgment | Support/Optional | |||
Data audit trail | Support/Optional | |||
Power | 0.9kw | 1.5kw | 1kw | 1.6KW |
Size | 390*468*448mm | 480*498*487mm |
