BD1-1, BD1-6,BD2-6
Glanlab
Availability: | |
---|---|
Quantity: | |

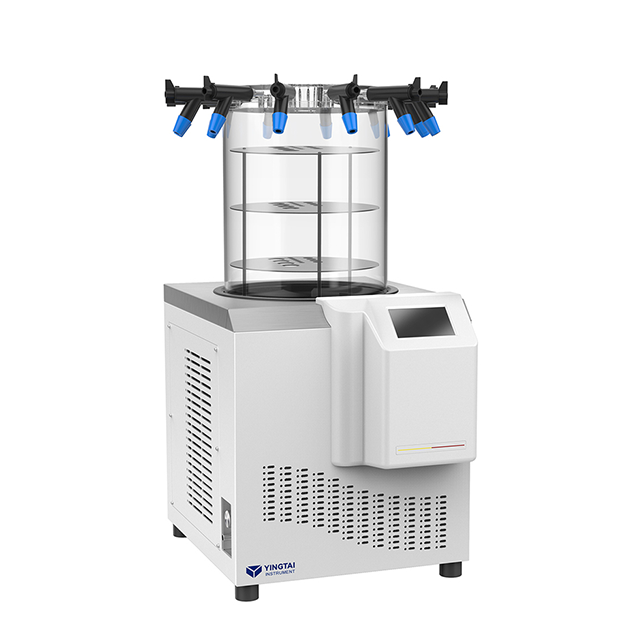

Character of Yingtai laboratory scale freeze dryer
Small size, and light weight.
Compact construction of tabletop freeze dryer.
Suitable for small samples drying.
Advantage of Yingtai 3kgs smallest lab scale freeze dryer
3kg water capture capacity, which can meet the needs of general laboratory freeze-drying capacity.
-70°C ultra-low temperature cold trap, which can capture conventional organic solvents.
Direct-capture coil cold trap with higher efficiency and better ice-catching effect.
The cold trap and condenser coil are all Teflon anti-corrosion treatment, which can freeze-dry organic solvents
Large flat flange type silicone seal, effectively guarantee the vacuum tightness, no need to apply any auxiliary sealing silicone grease forever.
One-button operation, the host and the vacuum pump are linked, no manual operation required.
The Pirani vacuum sensor with automatic temperature compensation can accurately detect the vacuum degree in the chamber at each stage.

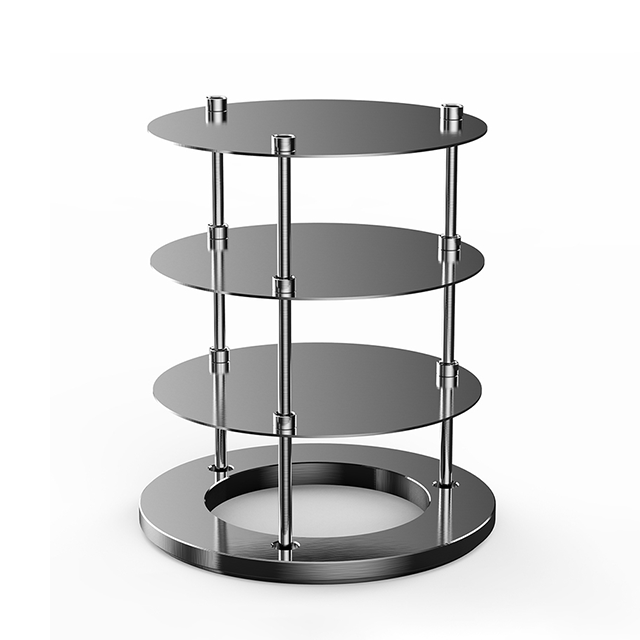

Removable sample shelf with special holes for centrifuge tubes, making it easier to place and adjust the height.
Various types of chambers and T-frame configurations can fully meet the user's sample placement.
Vacuum pumps and sample placement chambers can be freely combined according to user needs, making the configuration more flexible and convenient.
Techinical parameter
Item No | BD1-3 | BD1-6 | BD2-6 |
24/h water capture capacity | 3kg | 6kg | 6kg |
Cold trap temperature | -70℃ | -70℃ | -90℃ |
Cold trap volume | 5L | 10L | 10L |
Freeze dried chamber | High permeability organic glass/multi manifold external valve/stainless steel chamber | ||
Sample shelf | φ 200mm stainless steel with 3-5 layers available | ●Stainless steel φ 260mm/485mm. 3-10 layers/optional ●Electric heating/manual capping/optional | |
vacuum pump | Standard configuration | ||
Oil mist filter | Extreme vacuum 4 * 10-4mbar,with a pumping capacity of 78L~200L/optional pump of various types | ||
Vacuum pump connection pipe | Single forming stainless steel flexible pipe DN16 ISO-KF L-1.2m | ||
anti-corrosive treatment | Cold trap, condensing coil/all equipped with PTFE anti-corrosion treatment as standard. Freeze-drying organic solvents | ||
External valve | 6/optional | 1-48 pieces/optional | |
Eutectic point detection system | Support/Optional | ||
Data output analysis | Support/Optional | ||
Power | 0.6kw | 1.1kw | 0.5kw |
