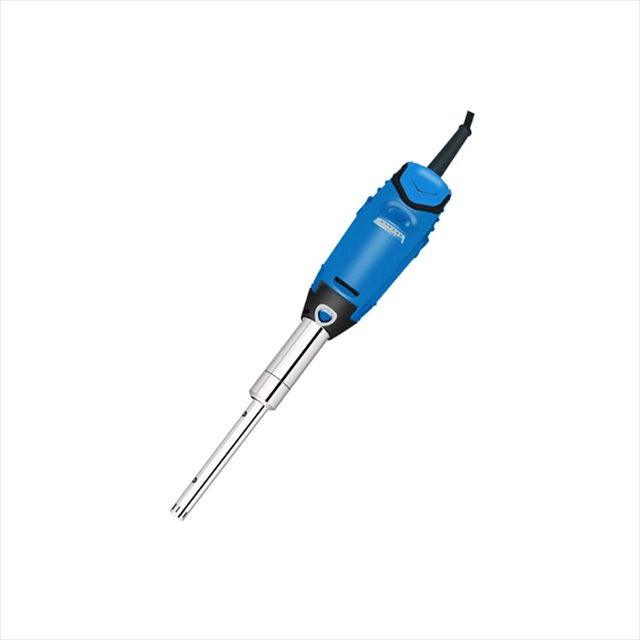

BK-H6B Handheld High-Speed Homogenizer GlanLab

K-H6B type is suitable for mixing, emulsification and homogenization of liquid and liquid; dispersion of liquid and solid powder; It can be used in pharmaceutical, biochemical, food, nanomaterials, coatings, adhesives, daily chemicals, printing and dyeing, petrochemicals, etc.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Speed range: 1000-32000r/min
Single-handed control and user-friendly design: designed for one-handed control, this device ensures easy operation, powerful performance, and improved experimental outcomes.
Enhanced safety with double insulation: equipped with double insulation protection, this device prioritizes user safety during operation.
High-quality stainless steel construction: all material-contacting parts of the working head are made from premium stainless steel, offering excellent corrosion resistance.
Easy disassembly with coupling connection: the working head is connected to the drive motor via a coupling, enabling easy and flexible disassembly when needed.
Stepless speed control for stability: the stepless speed controller allows convenient speed adjustment and ensures stable operation for precise control.

Parameters

Model	BK-H6B
Speed Range	1000-32000r/min
Working Volume	0.2-150ml (H2O)
Standard Dispersing Shaft	10G
Max. Viscosity	2000mpas
Consumption	120W
Speed Control	6 stage
Speed Controller	Stepless speed controller,
Material Of Dispersing Shaft	SS316L & PTFE
Process Type	Micro batch processing
Power Supply	220V 50/60HZ
Relative Humidity	80%

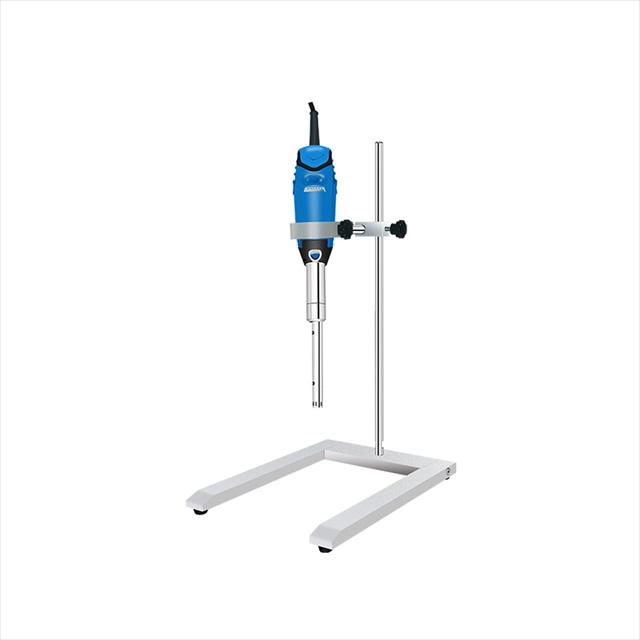

Optional Stand	Single column stand
Net Weight	0.6kg
Package Size(WDH)	470335200mm
Gross Weight	6kg

Dispersing Shaft

Type	Working Volume （ml）	Viscosity （cp）		Speed（m/s）	Length(mm）	Diameter(mm)
6G	0.2-50	100	5		125	6
8G	10-60	500	8		150	8
10G	30-150	2000	10		185	10
6G-ST	0.2-50	100	5		125	6
8G-ST	10-60	500	8		150	8
10G-ST	30-150	2000	10		185	10
