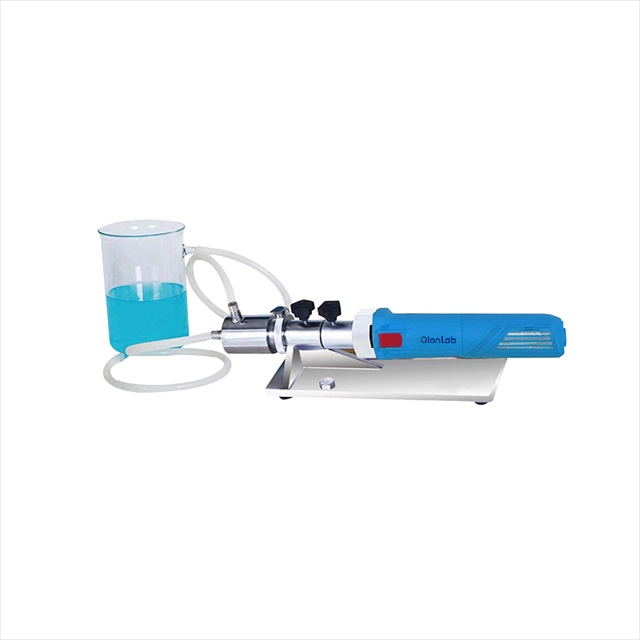

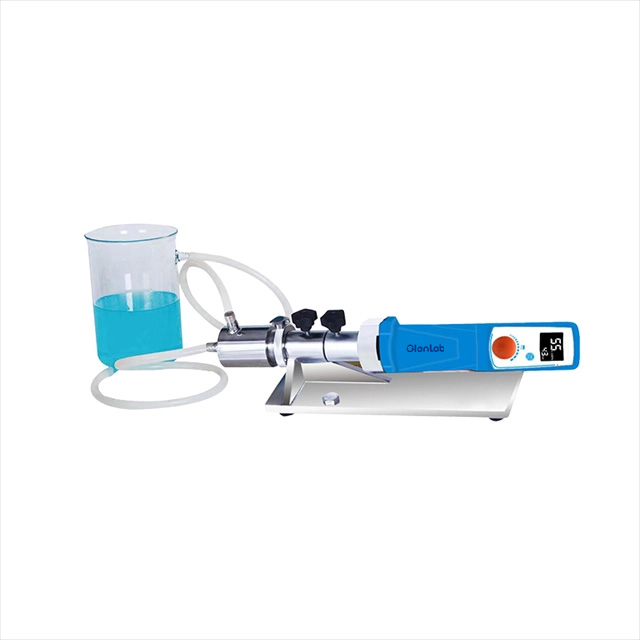

BK-OH25/BK-OH25D Online Homogenizer GlanLab

The Online Homogenizer offers exceptional mixing efficiency in a lightweight, modular design, making it easy to operate and ideal for continuous, long-term use. Its advanced shear cavity design ensures that 100% of the material passes through without any dead zones, achieving high levels of homogenization and efficiency. This homogenizer is well-suited for laboratory setups that simulate online processing conditions, allowing for both circulation and continuous online processing.
Availability:
Quantity:

Features:

  • Speed range: (model BK-OH25) 7500-30000rpm, (BK-OH25D) 4000-26000rpm

  • Brushless DC motor: with the advantages of higher efficiency, longer lifespan and lower maintenance requirements, this kind of motor can be a preferred choice for applicaton.

  • Continuous processing: online homogenizers enable uninterrupted homogenization, enhancing efficiency and consistency in production.

  • High mixing efficiency: with better sealing effect, unique stator and rotor structure, the homogenizer can produce super strong shear force, ensuring thorough mixing and emulsification, resulting in uniform particle sizes and stable emulsions.

  • Modular structure: many models feature a modular design, facilitating easy integration into existing systems and scalability based on production needs.

  • Ease of operation: designed for user-friendly operation, including intuitive controls and require minimal manual intervention.

  • Durability: the working head and machine base are made of stainless steel, which is corrosion-resistant.


Parameters

Model

BK-OH25

BK-OH25D

Item No.

1004027001

1004028001

Motor Power

1250W

750W

Motor Type

Brushless DC motor

Speed Range

7500~30000rpm

4000~26000rpm

Adjustment Method

Gear adjustment

Knob speed control

Speed Display

Scale display

Digital display

Stirring Amount(H20)

1~30L/min

1~20L/min

Maximum Processing Viscosity

10000CP

10000CP

Standard Working Head

25DG

20DG

Standard Working Chamber

Stainless steel unjacketed working chamber

Contact Material

SUS316L

Mechanical Seal Material

SiC

Inlet&Outlet Outer Diameter

12(hose interface)

Outer Size

460*120*120mm

460*120*120mm

Power Supply

Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz

Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz(The power will decrease)

Packing Size

600*300*300mm

Gross Weight

10kg
