D-160 High Speed Handheld Homogenizer GlanLab

D-160 high-speed handheld homogenizer is a compact, portable device used for quick and efficient blending, emulsifying, and dispersing of samples. Operating at high rotational speeds, it allows for one-handed operation, making it ideal for small-volume tasks in laboratory and field settings. Its lightweight design and interchangeable dispersing heads make it versatile for processing various liquid samples, commonly used in research, pharmaceutical, and biotechnology applications where precision and convenience are essential.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Speed range: 8000-32000rpm
Lightweight design: compact and handheld, allowing for convenient one-handed operation.
Versatile dispersing heads: compatible with dispersing heads for liquid samples ranging from 0.1 to 250 ml.
Corrosion-resistant 316L stainless steel dispersing head: made from high-quality stainless steel, resistant to corrosion and suitable for high-temperature sterilization.
Easy to disassemble and clean: dispersing head is designed for quick disassembly and cleaning, paired with a high-speed, efficient motor.
Adjustable speed control: 10-speed settings with a range of 8000 to 32000 rpm for flexible processing needs.
Suitable for various environments: it can operate effectively within atemperature range from 0 to 40°, allowing use across a variety of environment.

Parameters

Model	D-160
Item No.	8034111000
Recommended Configuration	Package 1: D160 drive, H370 Stand, DS-160/5 shaft, volumes from 0.1-50ml Package 2: D160 drive, H370 Stand, DS-160/10 shaft, volumes from 1-250ml
Speed Range	8000-32000rpm
Max. Circum. Speed	6.3-14m/s
Speed Control	10 stage
Working Volume (H2O)	0.1-50ml (Dispersing shaft DS-160/5) 1-250ml (Dispersing shaft DS-160/10)
Max. Viscosity	5000mPas
Material of Dispersing Shaft	SS316& PTFE seal ring
Noise	≤72dB
Ambient Temp.	0-40°C
Relative Humidity	85%RH
Protection Type	IP20
Consumption	160W
Motor Type	AC carbon brush motor
Power Supply	AC110/220V±10%, 50/60Hz(Customizable)
Standard Accessory	Base stand+DS-160/5 dispersing shaft Or Base stand + DS-160/10 dispersing shaft
External Size(WDH)	4555190 mm
Package Size (WDH)	470240250mm
Gross Weight	4kg

Optional Accessories

Cat. No.	Combination Stator + Rotor	Model	Working Volume (ml)	Diameter of Stator	Diameter of Rotor	Min./Max. Immersion Depth	Application
18900113	DS-160/5	D-160	0.1〜50	5mm	3mm	7/50mm	Small amounts of solid-liquid mixtures

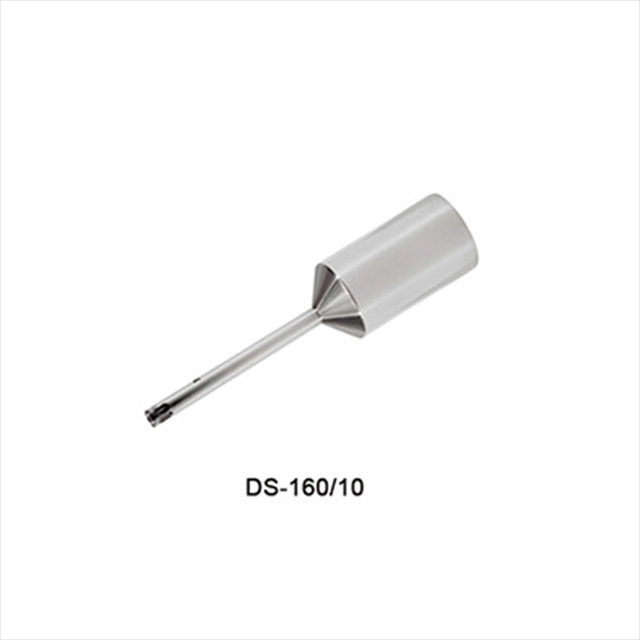

18900114	DS-160/10	D-160	1-250	10mm	6mm	10/120mm	Small amounts of solid-liquid mixtures

D-160 Homogenizer High-Speed Handheld Homogenizer Laboratory Homogenizer D-160 D-160 handheld homogenizer for laboratory use tissue homogenizer for genetic research and pathology
