The TL 24 series of biological Microscope
TL 24 series biological microscope is equipped with 195 achromatic objective and large field eyepiece, with the characteristics of beautiful appearance, clear imaging, broad vision, convenient operation and so on, etc. It can be widely used in biology, medicine, industry, agriculture and other fields, and is an ideal instrument for medical, teaching, scientific research and other units.
Details of TL24 series biological microscope
* Optical system: equipped with limited far flat field optical system, complete machine mildew prevention design and large field eyepiece, with beautiful appearance, clear imaging, broad vision, convenient operation and other characteristics, can be widely used in biology, medicine, industry, agriculture and other fields, is the ideal instrument for medical, teaching, scientific research and other units.
* Observation head device: the cylinder can rotate 360 degrees, the displacement of the center of the mirror is 0.06mm; 30 tilting; the hinge double observation (the left and right systems are 2.0% different; the lens end position is 0.1mm at zero vision) and the third party connection port, pupil distance adjustment range of 55-75mm, fixed observation tube head is internal hexagon screw or select portable screw.
* Eyepiece configuration: random eyepiece WF10X / 18mm; the magnification accuracy of eyepiece shall not exceed ± 2%. There is a card slot on the eyepiece tube to lock and position the eyepiece to prevent falling. Binocular vision is adjustable, making binocular observation easier.
* Objective: Broadband coated ED-N195 pure copper achromatic objective; objective magnification accuracy not exceeding ± 5%; 4X, 10X, 40X (spring), 100X (spring, oil); objective error 10-40 Afocal 0.06mm; 40-100 Afocal 0.03mm.
* Loading platform: triangular rail XY composite mechanical moving loading platform; 0.005 lateral to 5N horizontal force, corrosion resistance and wear resistance. Rectangular, size 110X120mm, stroke 7030mm, minimum read value 0.1 mm.
Specification

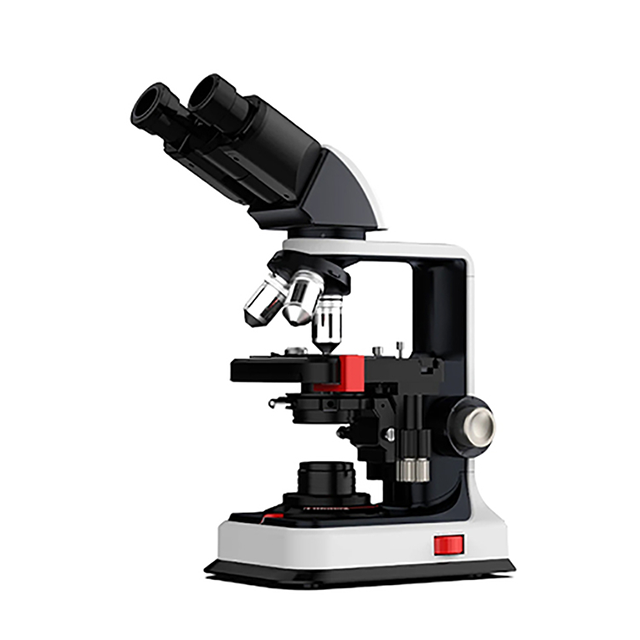

Specification configuration | TL24A | Binocular observation head, 45° tilt, 360 degrees can be rotated, pupil distance can be adjusted, adjustment range 50-75mm |
TL24B | Three-eye observation head, 45° tilt, 360 degrees can be rotated, pupil distance can be adjusted, adjustment range 50-75mm | |

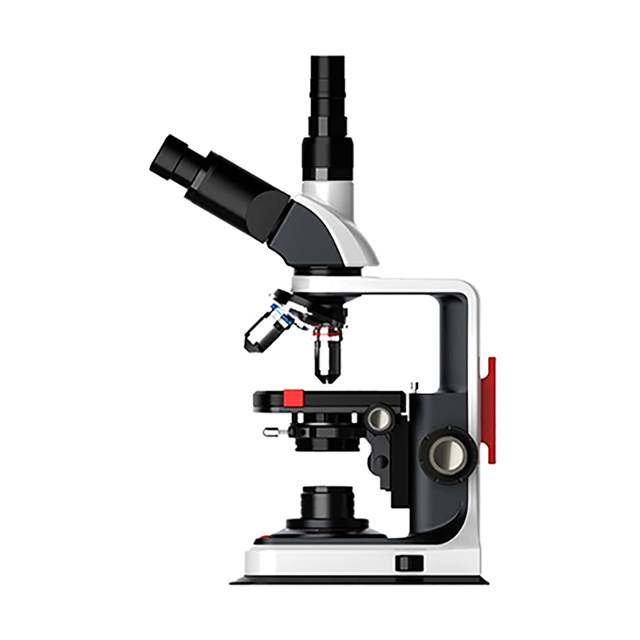

TL24M | Three-eye viewing head, equipped with 5 million pixel imaging system CMOS camera | |
TL24P | Three-eye viewing head, equipped with 10.1 inch integrated flat panel display | |
Eyepiece | Wide-angle eyepiece WF10X,field of view 18mm,optional WF16X,WF25X | |
Converter | Quadruple Revolving Converter | |
0bjective | 195mm achromatic objective,4X,10X,40X,100X(oil) | |
Condenser | ABBE N.A.1.25Condenser with Iris Diaphragm &Filter | |
Stage | Double Layer Mechanical Stage,Size110mmx120mm,Moving Range :70mmx30mm | |
Focusing | Crude motion, micromotion and coaxial focal adjustment system with a minimum focal range of 0.02mm Coarse and Fine Focusing | |
Light source | 1W LED,with Rechargeable Battery,Type C USB cable | |
Attachments | Dust bag,Type C power cord |
