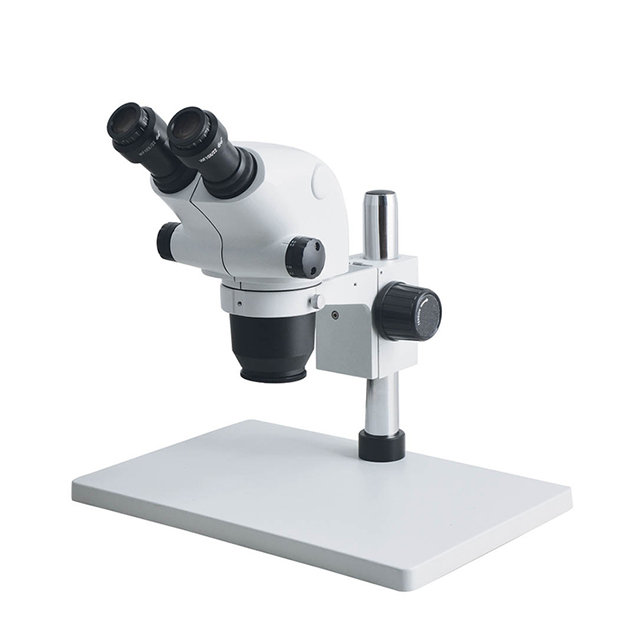

6.5-65 x continuous zoom stereo microscope | XTL-6565A | XTL-6565B | XTL-6565D | XTL-6565C |
Zoom Body | Binocular head,45°decline,360°rotate | ● |
| ● |
|
| Zoom Body | Trinocular head,45°decline,360°rotate |
| ● |
| ● |
Eyepiece | WF10X22mm | ● | ● | ● | ● |
Objective | zoom objective 0.65X---6.5X | ● | ● | ● | ● |
Zoom Rate | 1:10 | ● | ● | ● | ● |
Total Amplific- ation Rate | the standard configuration is 6.5X-65X | ● | ● | ● | ● |
Auxiliary Lens | 0.3X,0.5X,0.7X,1X,1.5X,2X For Option | O | O | O | O |
Working Distance | 110mm | ● | ● | ● | ● |
Djopte | 55mm-75mm | ● | ● | ● | ● |
Focus arm | 76mm Diameter,32mm pole size | ● | ● | ● | ● |
plate | Black/White plate,Glass plate for option | ● | ● | ● | ● |
Dptiona | Stand | O | O |
|
|
Stand | BL3 base,column support upper and lower light source 3 WLED | ● | ● |
|
|
| Stand | 811 base column support large flat base has no light source |
|
| ● | ● |
External light source | LED illumination | ○ | O | O | O |
Optional | Photography,camera accessories CCD Coupler | 〇 | Q | Q | o |
Optiona | Display attachment Monitor | O | O | O |
|
