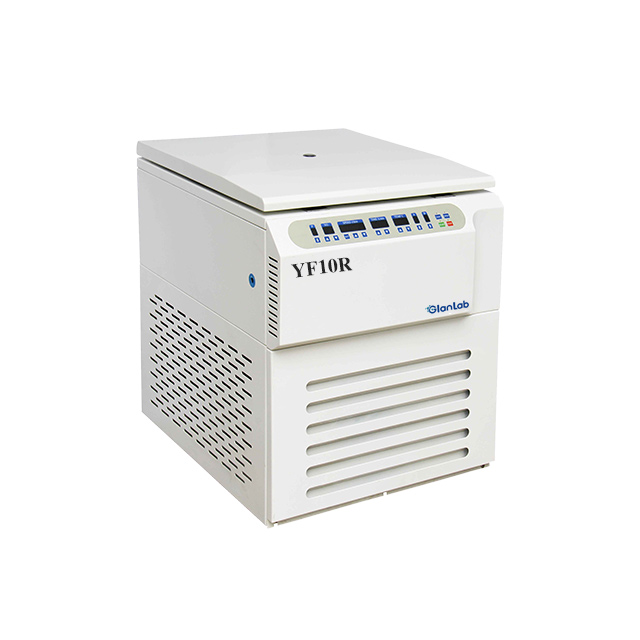

YF10 6*1000ml Large Capacity with Speed To 10000rpm Centrifuge ,Refrigerated Centrifuge for Pharmaceutical Factory And Laboratory
Features:
* Widely used in the field of pharmaceutical factory and laboratory；
* Brushless frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down；
* Digital display which indicates the program, speed, time,RCF, temperature；
* Micro computer control, there are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice；
* Kinds of rotors for your choice；
* Electric lid lock, compact design, super speed and imbalance protection；
* The centrifuge body is made of high-quality steel, safe and reliable.
YF10 Technical Parameter
| Max. Speed | 10000rpm |
| Max. RCF | 15730 x g |
| Max. Capacity | 6x1000ml |
| Timer | 1～9h59min |
| RPM/RCF Convert | Yes |
| Noise（dB） | ≤ 65 |
| Temperature Range | -20～40°C |
| Acc/Dec | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | ±1°C |
| Voltage（V/Hz） | AC 380V/220V 50HZ/60HZ |
| Dimension（LxWx Hmm） | 940x735x1260mm |
| Net Weight（Kg） | 380KG |
| Certificates | CE,ISO & Calibration |
Matched Rotors for YF10R
| Product No. | Rotor Type | Max Speed(rpm) | Volume(ml) | Max RCF(g) |
G10-1

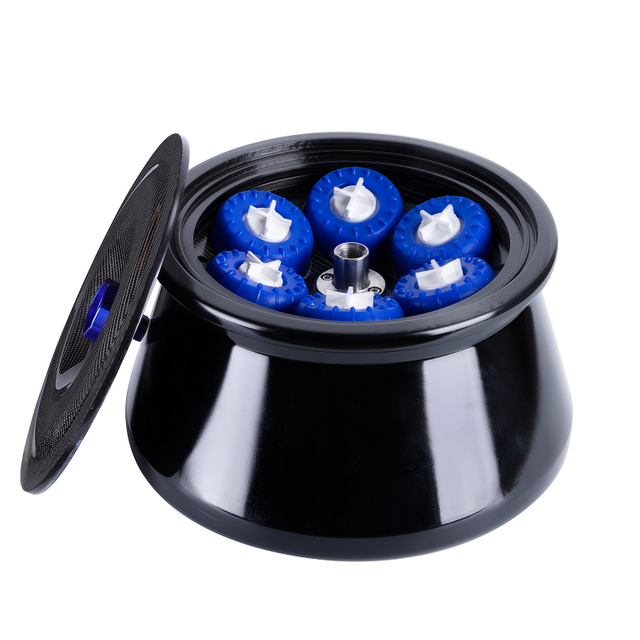

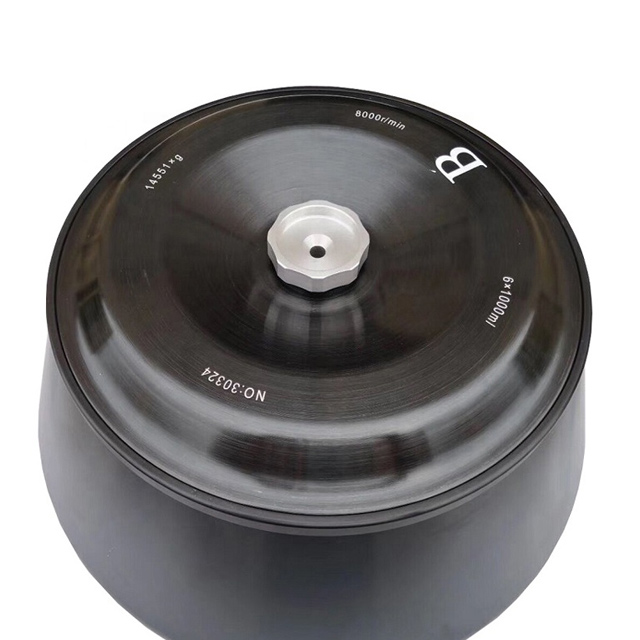

| Angle Rotor | 7200 | 6x1000ml | 12326 |
G10-2

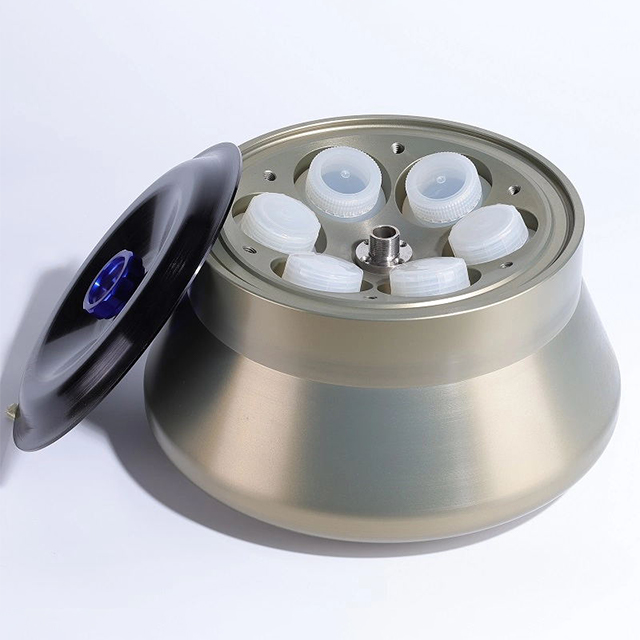

| Angle Rotor | 9000 | 6x500ml | 14860 |
G10-3 | Angle Rotor | 10000 | 6x300ml | 15730 |
G10-4

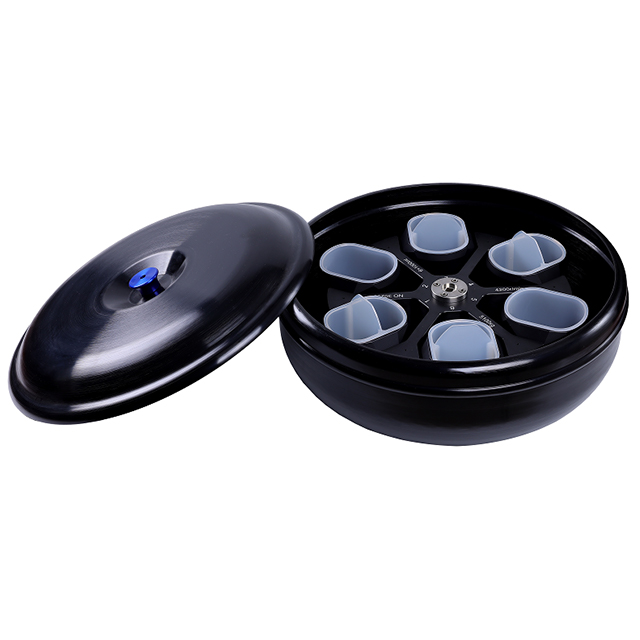

| Swing Rotor | 4200 | 6x1000ml | 5100 |
