YF21R
21000
5mL, 10mL, 20mL, 30mL, 50mL, 70mL, 100mL, 300mL, 500mL, 800mL, 1000mL, 1800mL, 2000mL
46140 x g
Yes
4x800ml
| Quantity: | |
|---|---|

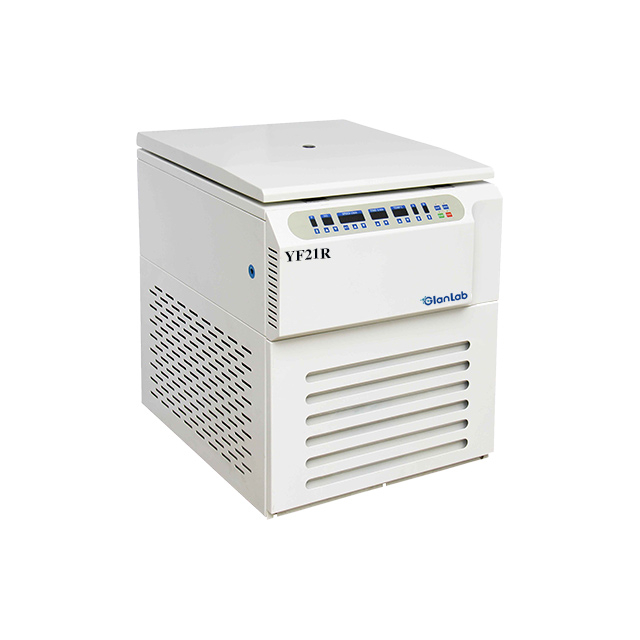

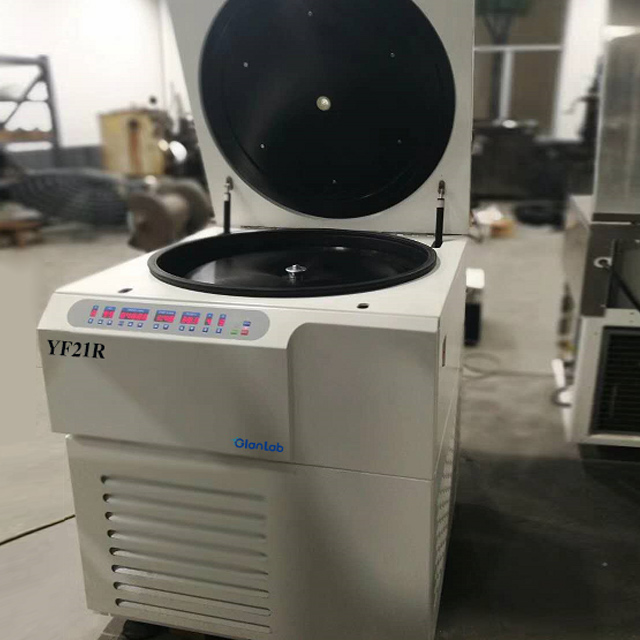

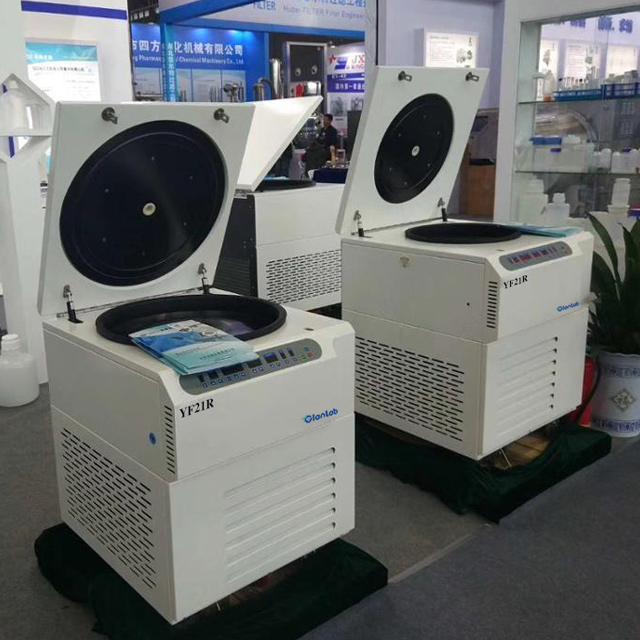

YF21R 21000rpm/46140xG Speed,4*800ml,-20～40 °C Refrigerated Floor Standing Centrifuge, Continuous Rotor Available,10 Acc/Dec
Features：
* 10 kinds of programs and 10 kinds of acceleration and deceleration for you to choose；
* Microcomputer control system, LED(digital) display temperature, time, speed；
* Automatic electric lock cover, compact structure, super fast speed, unbalanced protection；
* Imported compressor，fluorine free，double cycle cooling，cold and hot alternating easily, free environment pollution and precise in temperature control；
* Brush-less frequency motor which in great torque, free maintenance, no powder pollution, quick speed up and down；
* Flexible axle driven system which drives the rotor directly, smooth in operation, low noise, and small vibration；
* Centrifugal body is made of high quality steel, safe and reliable.
YF21R Technical Parameter
| Max. Speed | 21000rpm |
| Max. RCF | 46140 x g |
| Max. Capacity | 4x800ml |
| Timer | 1～9h59min |
| RPM/RCF Convert | Yes |
| Noise（dB） | ≤ 65 |
| Temperature Range | -20～40°C |
| Acc/Dec | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | ±1°C |
| Voltage（V/Hz） | AC 220V 50HZ/60HZ |
| Dimension（LxWx Hmm） | 800x740x930mm |
| Net Weight（Kg） | 300KG |
| Certificates | CE,ISO & Calibration report |

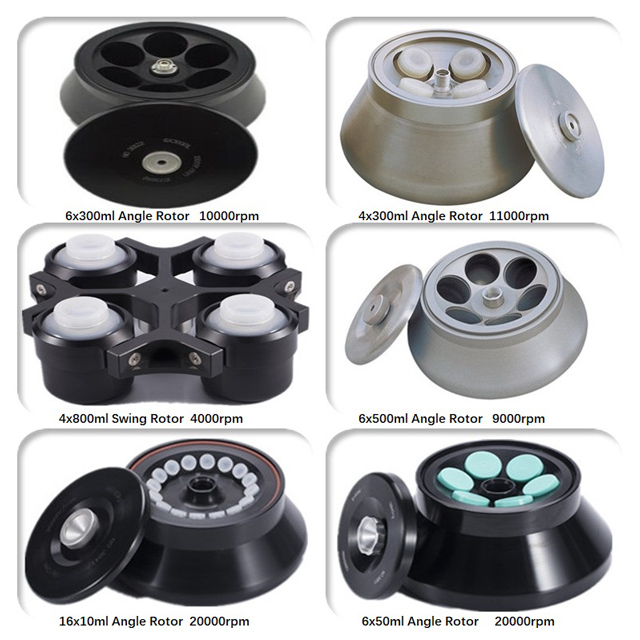

Matched Rotors for YF21R
| Rotor No. | Rotor Type | Max Speed(r/min) | Volume(ml) | Max RCF(g) |
21M-1
| Angle Rotor | 21000 | 12x10 | 44440 |
21M-2
| Angle Rotor | 20000 | 16x10 | 46140 |
21M-3
| Angle Rotor | 20000 | 8x30/20 | 42040 |
21M-4
| Angle Rotor | 20000 | 6x50 | 44700 |
21M-5

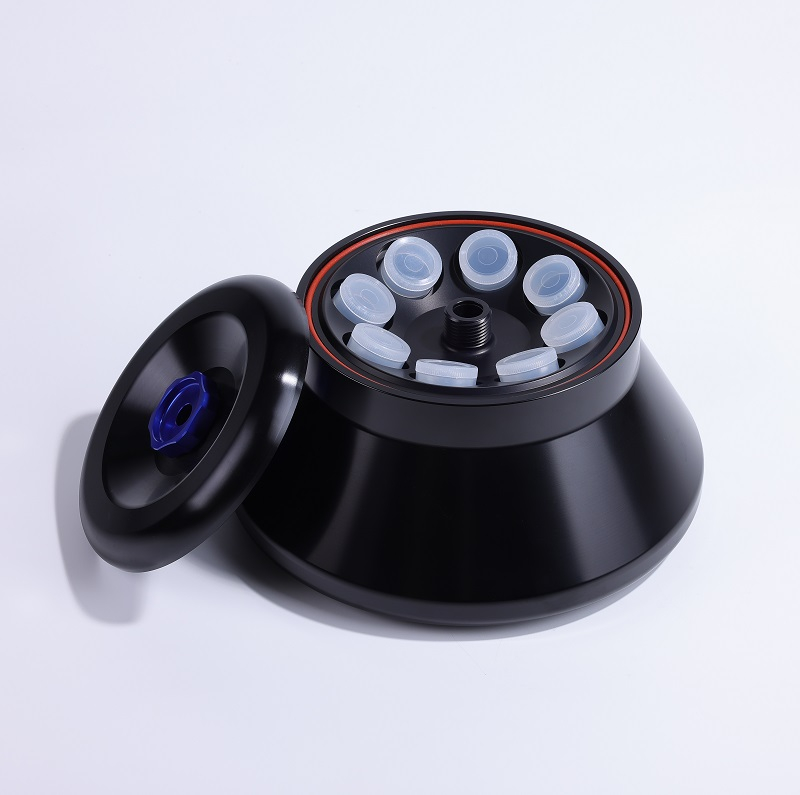

| Angle Rotor | 15000 | 8x50 | 27540 |
21M-6 | Angle Rotor | 15000 | 6x70 | 25480 |

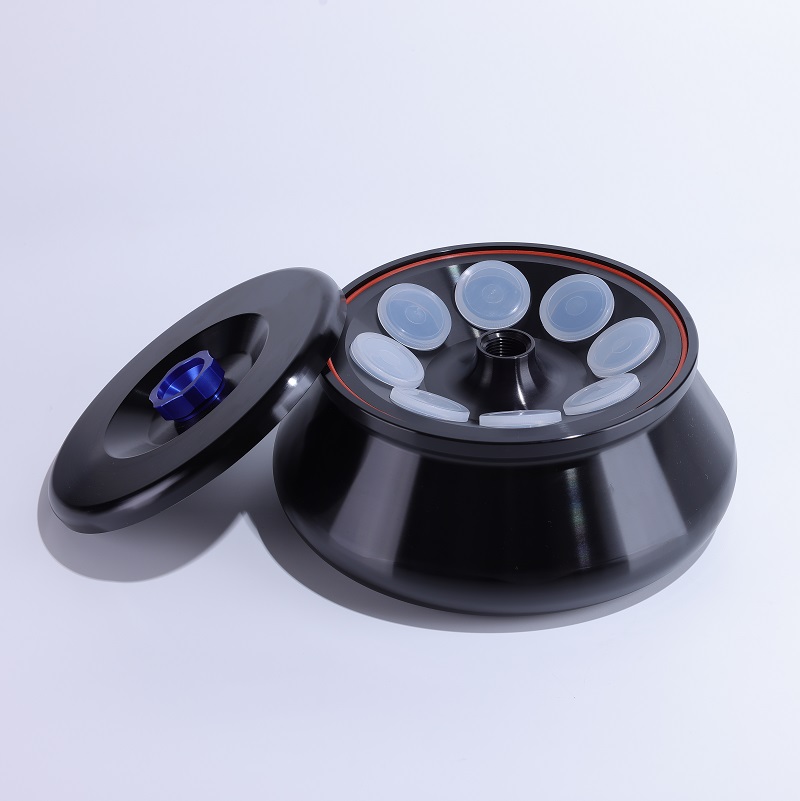

21M-7
| Angle Rotor | 12000 | 8x100 | 19610 |
21M-8

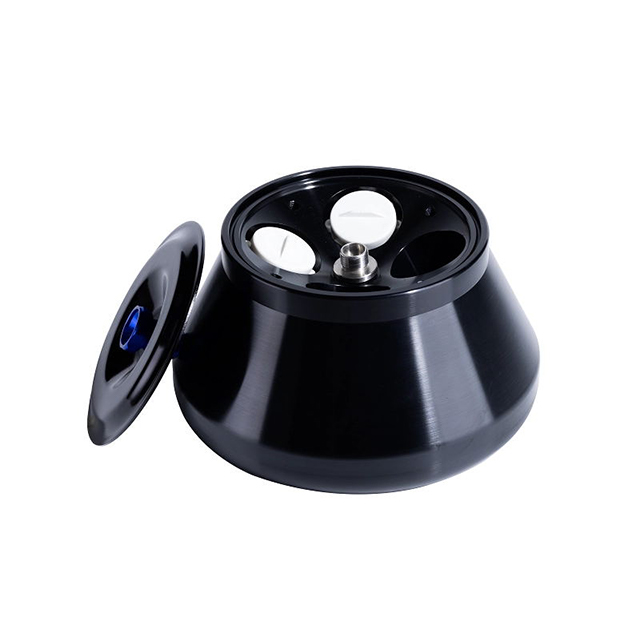

| Angle Rotor | 11000 | 4x300 | 18120 |
21M-9 | Angle Rotor | 10000 | 6x300 | 15730 |

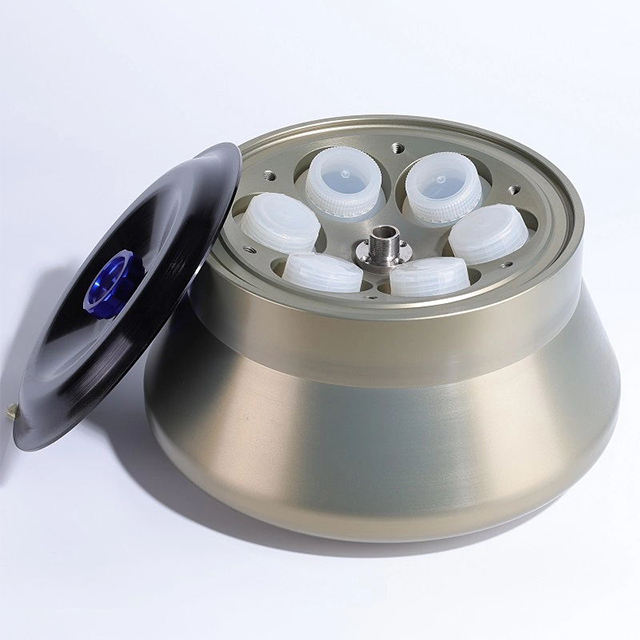

21M-10
| Angle Rotor | 9000 | 6x500 | 14860 |
21M-11
| Swing Rotor | 4000 | 4x800 | 3450 |
21M-12 | Swing Rotor | 15000 | 4x5 | 21670 |

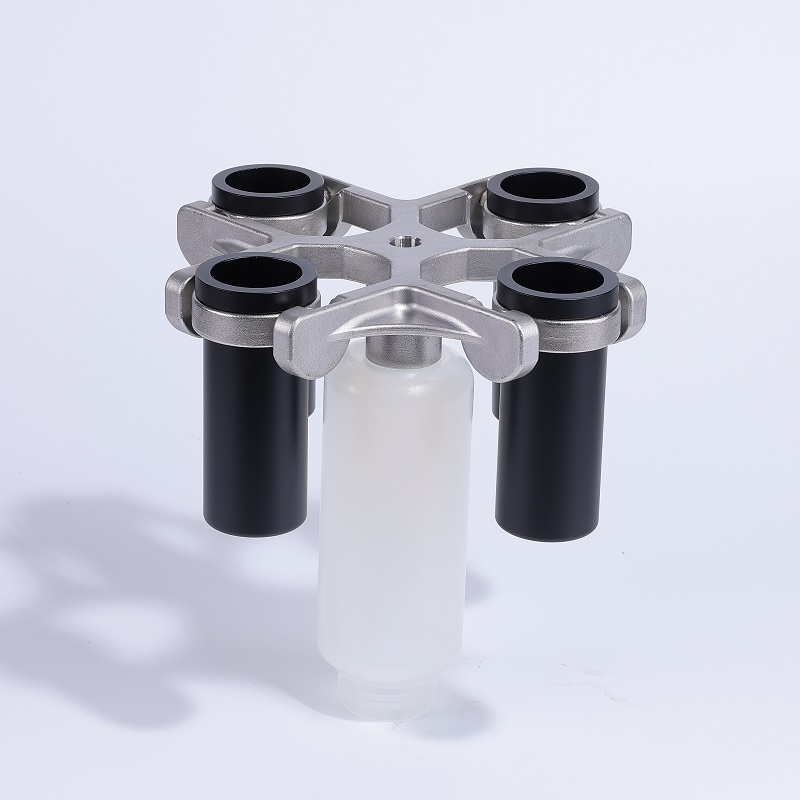

21M-13
| Swing Rotor | 13000 | 4x30 | 23580 |

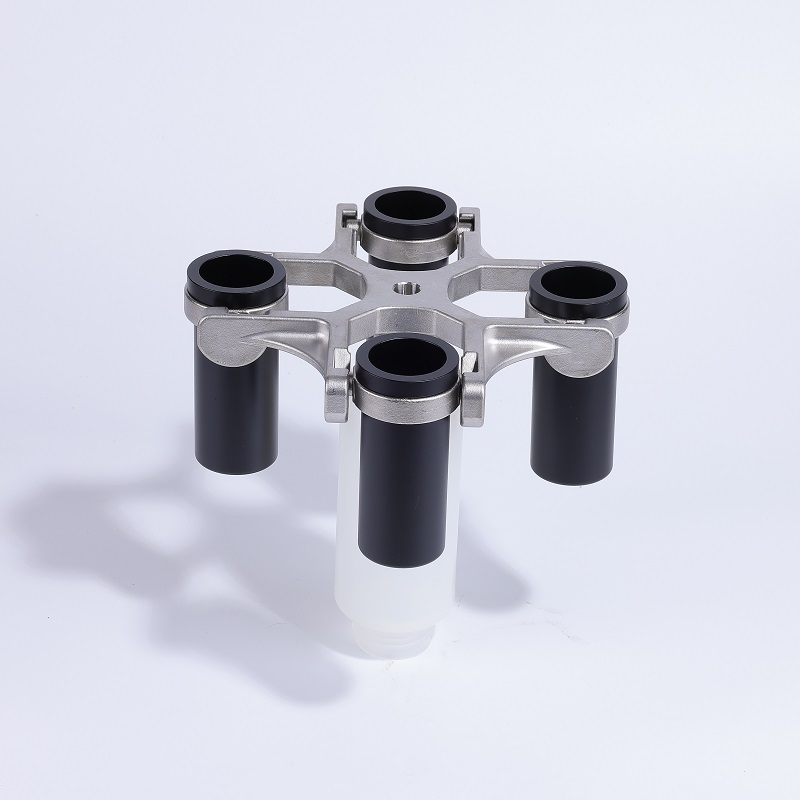

21M-14
| Swing Rotor | 10000 | 4x50 | 16240 |
Matched Continuous Centrifugal Rotors
| Product No. | Rotor Type | Max Speed(rpm) | Volume(ml) | Max RCF(g) | Standard Flow | Deposit |
| No30128 | Continuous Centrifugal Rotor | 17000 | 1000 | 31390xg | 285-350ml/min | 500ml |
| No30129 | Continuous Centrifugal Rotor | 14000 | 1800 | 21710xg | 220-500ml/min | 500ml |
| No30130 | Continuous Centrifugal Rotor | 8000 | 3000 | 9450xg | 220-500ml/min | 1600ml |
| No30131 | Continuous Centrifugal Rotor | 8000 | 1800 | 8600xg | 220-500ml/min | 1000ml |
