YT16
16000
0.5mL, 1.5mL, 2mL, 5mL, 7mL, 10mL, 15mL, 20mL, 30mL, 50mL, 70mL, 100mL, PCR/ELISA Plate
20600×g
Yes
6×100ml
| Quantity: | |
|---|---|

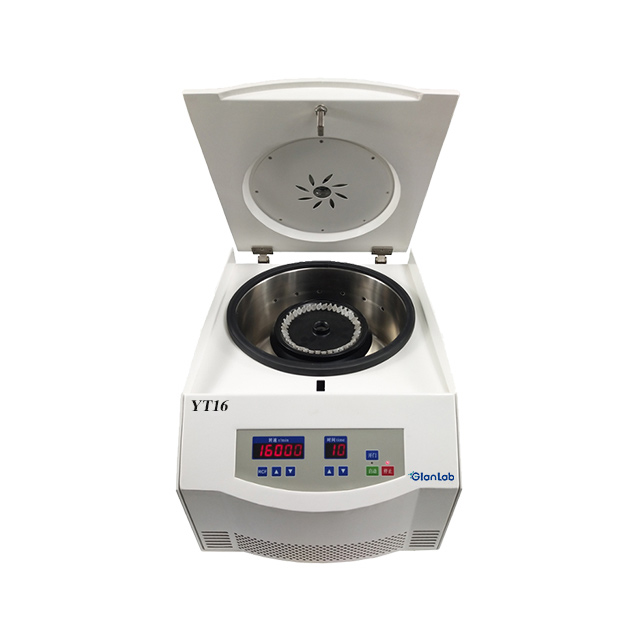

YT16 Max 16000rpm,Max 6×100ml, TableTop High Speed Centrifuge，Micro or Large Capacity
Application：
Widely used in the field of biochemistry,biological products,pharmaceutical factory and laboratory.
Features:
* Brush-less frequency motor,in great torque, free maintenance, no powder pollution, quick in speed up and down.
* Microprocessor control
* Digital display in time, speed and RCF.
* 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
* Automatically electric lid lock, over speed, over temperature protection and imbalance protection.
* High quality steel centrifuge body , stainless steel chamber,3 tiers protection,safe and reliable.
* Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction
YT16 Tecgnical Parameter
| Max. Speed | 16000rpm |
| Max. RCF | 20600×g |
| Max. Capacity | 6×100ml |
| Time Range | 0~99min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 65 |
| Acc/Dec | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | ±1℃ |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (L x W x Hmm) | 513×370×320mm |
| Net Weight(Kg) | 42KG |
| Certificates | CE,ISO & Calibration report are available |
YT16R Tecgnical Parameter
| Max. Speed | 16000rpm |
| Max. RCF | 20600×g |
| Max. Capacity | 6×100ml |
| Time Range | 1～9h59min |
| Noise (dB) | ≤ 58dBA |
| Speed Accuracy | ±20r/min |
| Temperature Range | -20~40℃ |
| Temperature Accuracy | ±1℃ |
| Voltage(V/Hz) | AC 220V/110V 50HZ 10A |
| Size (L x W x Hmm) | 570×620×380mm |
| Net Weight(Kg) | 84KG |
Matched Rotors for YT16/YT16R
| Order No | Rotor | Max speed (rpm) | Max Volume(ml) | Max RCF (g) |
G16-1
| Angle rotor | 14000 | 4×8PCR | 12070 |
G16-2
| Angle rotor | 13000 | 6×8PCR | 16080 |
G16-3
| Angle rotor | 14000 | 8×8PCR | 13390 |
G16-4
| Angle rotor | 13000 | 12×8PCR | 17220 |
G16-5

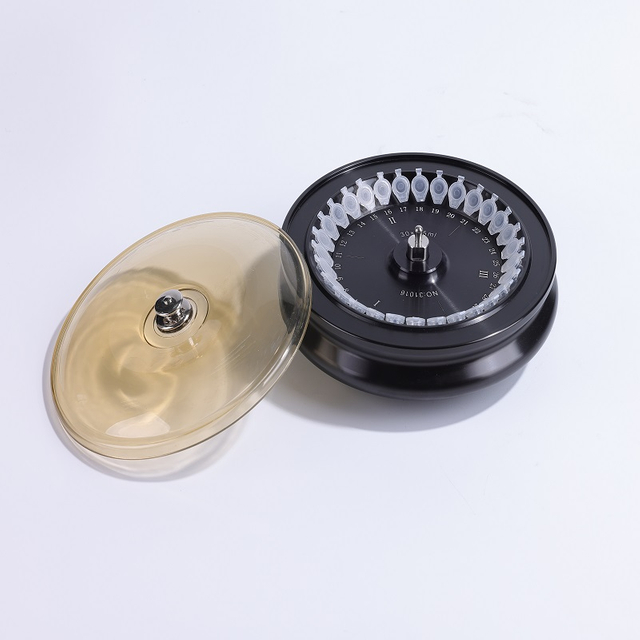

| Angle Rotor | 15000 | 30×0.5ml | 18510 |
G16-6
| Angle Rotor | 14000 | 40×0.5ml | 19970 |
G16-7

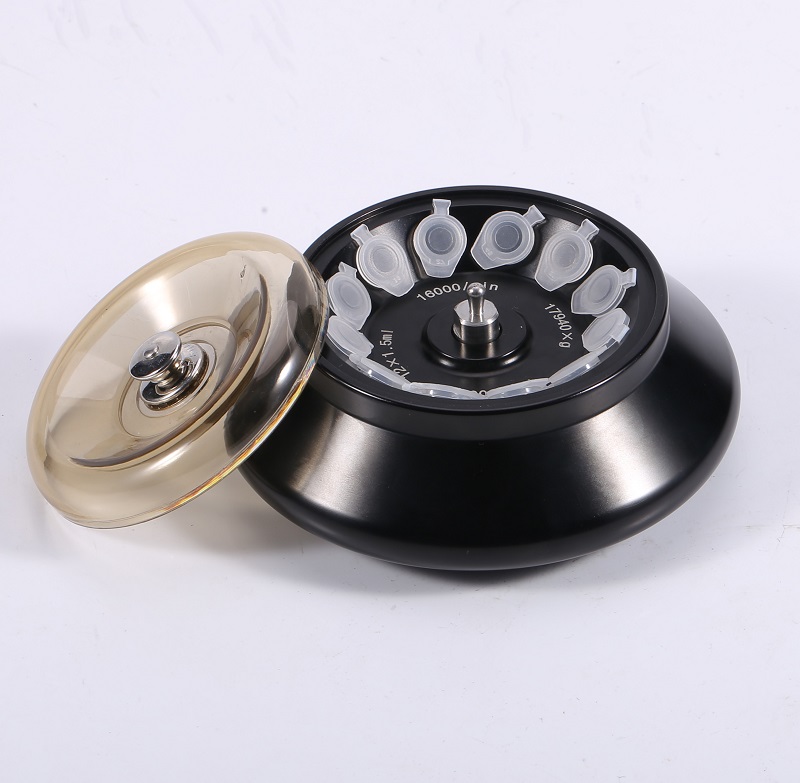

| Angle Rotor | 16000 | 12×1.5/2ml | 17940 |
G16-8

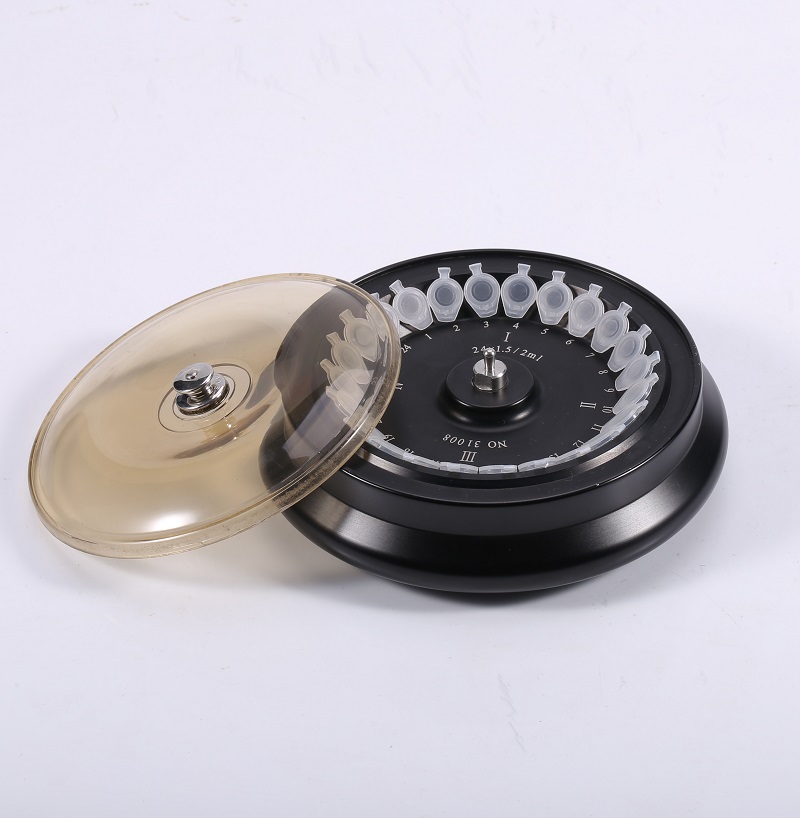

| Angle Rotor | 15000 | 24×1.5/2ml | 20600 |
G16-9
| Angle Rotor | 13500 | 30×1.5/2ml | 19340 |
G16-10
| Angle Rotor | 11000 | 48×1.5/2ml | 12840 |
G16-11
| Angle Rotor | 15000 | 16×5ml | 19350 |
G16-12

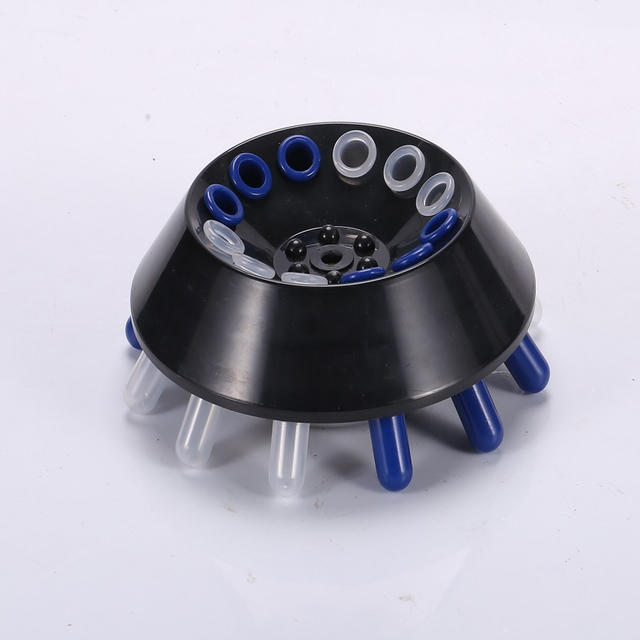

| Angle Rotor | 14000 | 12×7ml | 16370 |
G16-13

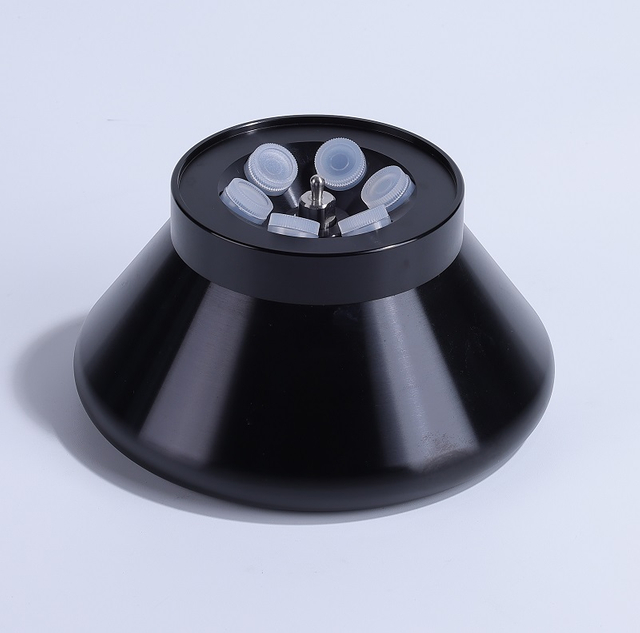

| Angle Rotor | 14000 | 6×10ml | 16460 |
G16-14
| Angle Rotor | 13000 | 12×10ml | 14510 |
G16-15
| Angle Rotor | 10000 | 12×15ml | 11840 |
G16-16 | Angle Rotor | 5000 | 24×15ml | 3080 |
G16-17
| Angle Rotor | 5000 | 30×15ml | 3830 |
G16-18
| Angle Rotor | 12000 | 8×20ml | 14510 |
G16-19
| Angle Rotor | 12000 | 6×30ml | 14000 |
G16-20
| Angle Rotor | 11000 | 6×50ml | 13480 |
G16-21 | Angle Rotor | 12000 | 6×70ml | 10810 |
G16-22

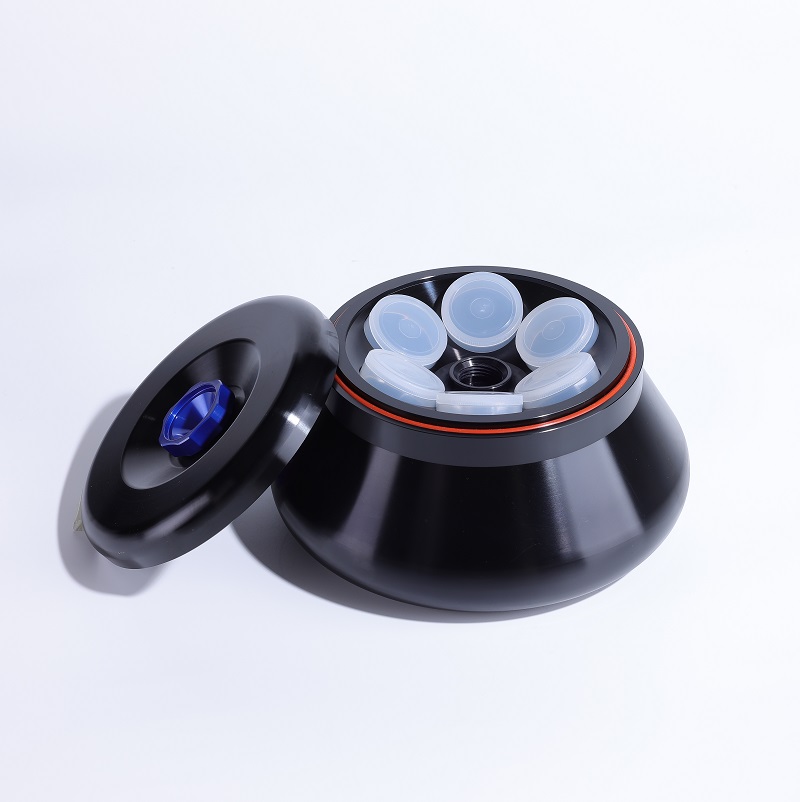

| Angle Rotor | 8000 | 6×100ml | 7280 |
G16-23
| Angle Rotor | 12000 | 24 pieces capillary vessel | 15800 |
G16-24
| Microplate rotor | 4000 | 2×3×48 Well | 2300 |
