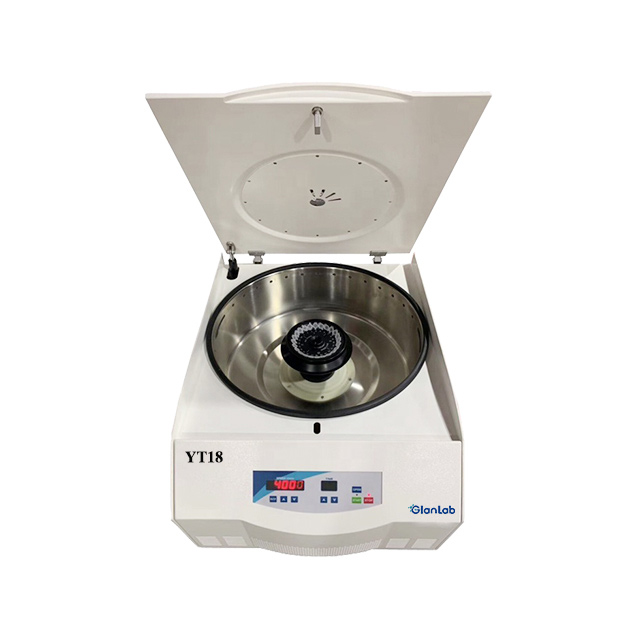

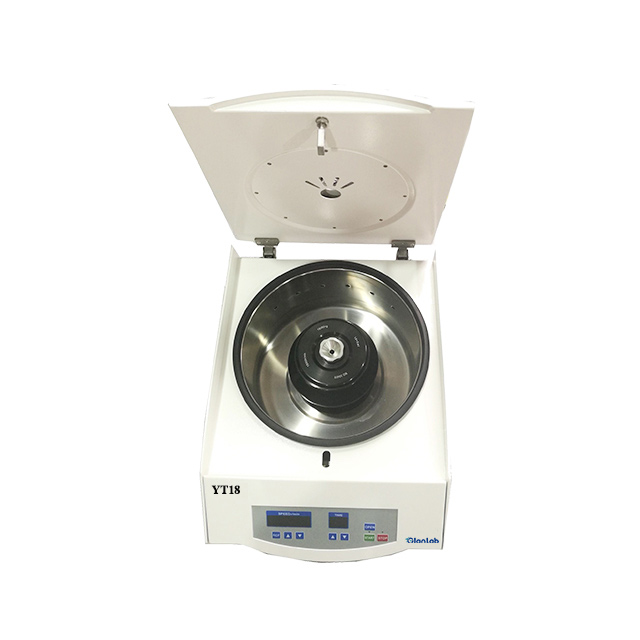

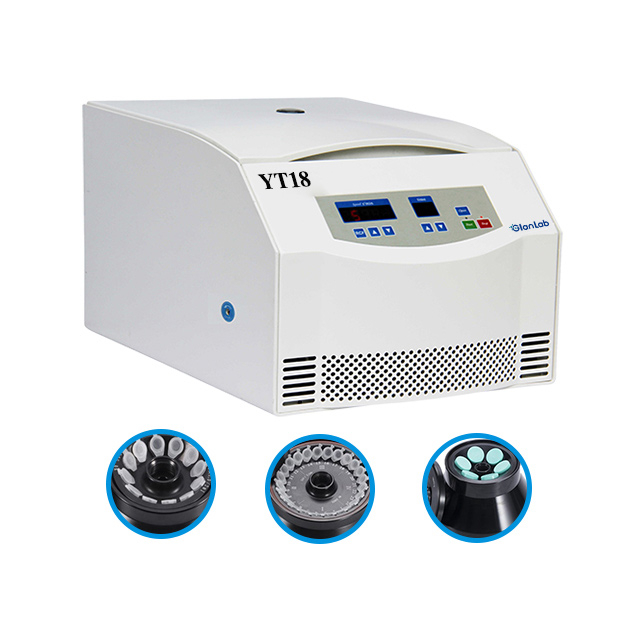

YT18 Series High Speed Refrigerated Blood Micro Large Capacity Centrifuge

YT18 is widely used in the field of animal and plant molecular biology, which is the ideal instrument for separating the chemical substances in the cell and purifying the microorganisms, viruses, bacteria and subcellular etc.

Model:
YT18
Capacity*:
0.5mL 1.5mL 5mL 7mL 10mL 15mL 30mL 50mL 85mL 100mL 800mL
Max. Speed:
21000rpm
Max. RCF:
30910 x g
Support Refrigeration:
Yes
Max.Capacity:
4x800ml

Availability:

Quantity:



Inquire Add to Basket

Product Description

YT18 4000-21000rpm, Various Rotors, High/Low Speed Universal Tabletop Centrifuge

Features:

* Max. speed 21000rpm, max volume 4x800ml, can be used for 5ml/10ml/15ml/30ml/50ml/100ml centrifuge tubes.

* Brushless DC motor in great torque, no powder pollution, free maintenance, quick in speed up and down.

* Can store 10 programs, automatically calculate and synchronously display the RCF data. Digital display indicates the speed, time, temperature and RCF. The parameters can be changed in operation, no need to stop the centrifuge which is quite convenient.

* The centrifuge body is made of high-quality steel, and with high-quality steel centrifuge chamber, safe and reliable.

* Automatically electric lid lock, over speed/over temperature protection and imbalance protection.

* There are many kinds of rotors for your choice, both in high speed and low speed.

YT18 Technical Parameter

Max. Speed	21000rpm
Max. RCF	30910×g
Max. Capacity	4×800ml
Time Range	0~99min
Noise (dB)	≤65dBA
Speed Accuracy	±20r/min
Voltage(V/Hz)	AC 220V/110V 50HZ 10A
Size (L x W x Hmm)	685×500×385mm
Net Weight(Kg)	70KG

YT18R Technical Parameter

Max. Speed	21000rpm
Max. RCF	30910×g
Max. Capacity	4×800ml
Time Range	1~99h59min
Noise (dB)	≤ 58
Temperature	-20℃-40℃
Speed Accuracy	±20r/min
Temperature Accuracy	±1℃
Voltage(V/Hz)	AC 220V/110V 50HZ/60HZ
Size (W x D x Hmm)	720×710×410mm
Net Weight(Kg)	130KG

Matched Rotors for YT18/YT18R

Order No	Rotor	Rotor Max Speed(r/min)	Volume(ml)	RCF(×g)
G18-1	Swing Rotor	4000	4×800ml	3450

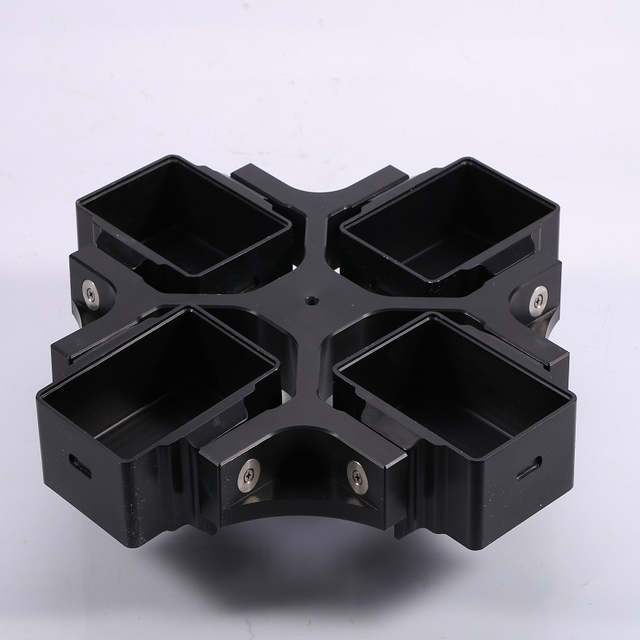

G18-2	Microplate rotor	4000	4×4×96 well	2940
G18-3	Microplate rotor	4000	2×4×96 well	3210
G18-4	Microplate rotor	4000	2×3×48 well	2300
G18-5	Swing rotor	4000	4×40×7ml vacuum tube	3270
G18-6		4000	4×40×5ml vacuum tube	2890
G18-7		4000	4×28×10ml vacuum tube	3130
G18-8	Swing Rotor	4000	Fat bottle	3830
G18-9	Fixed Rotor	16000	4×8PCR	15760
G18-10	Fixed Rotor	15000	6×8PCR	21420
G18-11	Fixed Rotor	16000	8×8PCR	17480
G18-12	Fixed Rotor	15000	12×8PCR	22930
G18-13	Fixed Rotor	15000	40×0.5ml	22920

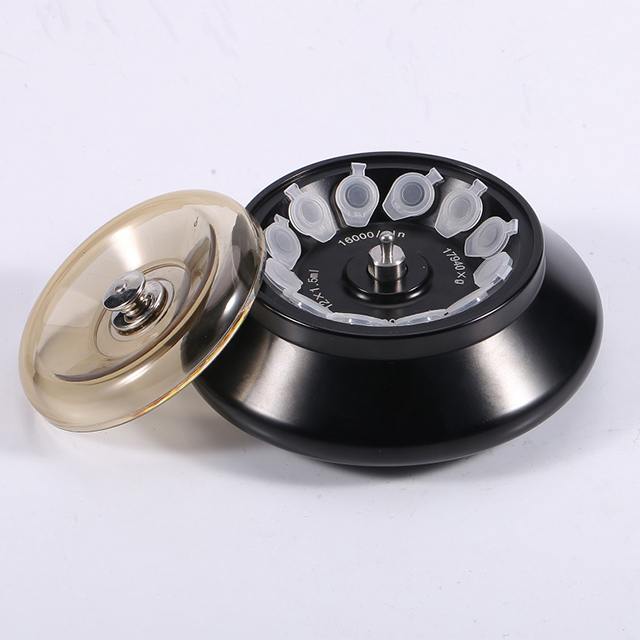

G18-14	Fixed Rotor	21000	12×1.5ml	30910

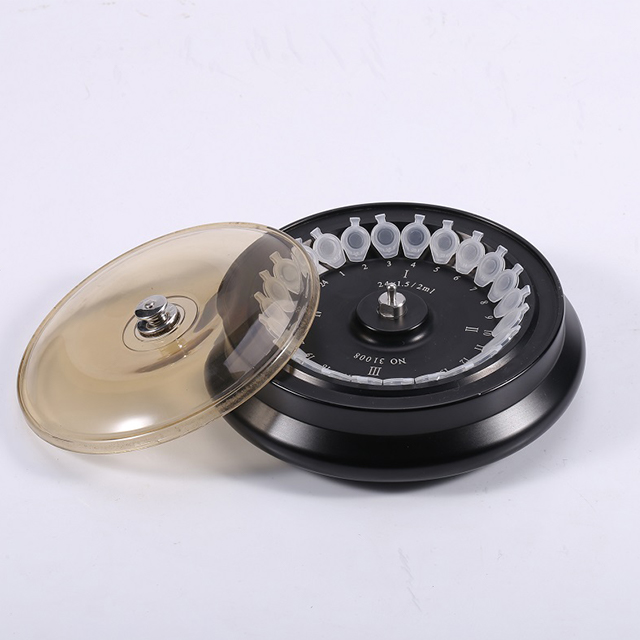

G18-15	Fixed Rotor	16000	24×1.5ml	23440
G18-16	Fixed Rotor	14000	30×1.5ml	20800
G18-17	Fixed Rotor	13000	48×1.5ml	17930
G18-18	Fixed Rotor	16000	16×5ml	22020
G18-19	Fixed Rotor	16000	6×10ml	21500
G18-20	Fixed Rotor	15000	12×10ml	22680
G18-21	Fixed Rotor	13000	16×10ml	19490
G18-22	Fixed Rotor	13000	8×15ml	17790
G18-23	Fixed Rotor	11000	12×15ml	14330
G18-24	Fixed Rotor	5000	24×15ml	3500
G18-25	Fixed Rotor	5000	30×15ml	3830
G18-26	Fixed Rotor	14000	6×30ml	19060
G18-27	Fixed Rotor	13000	6×50ml(conical)	18840
G18-28	Fixed Rotor	13000	6×50ml(round)	18730
G18-29	Fixed Rotor	5000	12×50ml	3860
G18-30	Fixed Rotor	4000	24×50ml	2970
G18-31	Fixed Rotor	13000	4×85ml	18940
G18-32	Fixed Rotor	12000	4×100ml	14850
G18-33	Fixed Rotor	10000	6×100ml	11380
G18-34	Fixed Rotor	4000	12×100ml	2970
G18-35	Fixed Rotor	12000	24 capillaries	15800
G18-36	Swing Rotor	15000	4×5ml	19920
G18-37	Vertical rotor	16000	16×5ml	16450
G18-38	Vertical rotor	14000	8×30ml	19750
