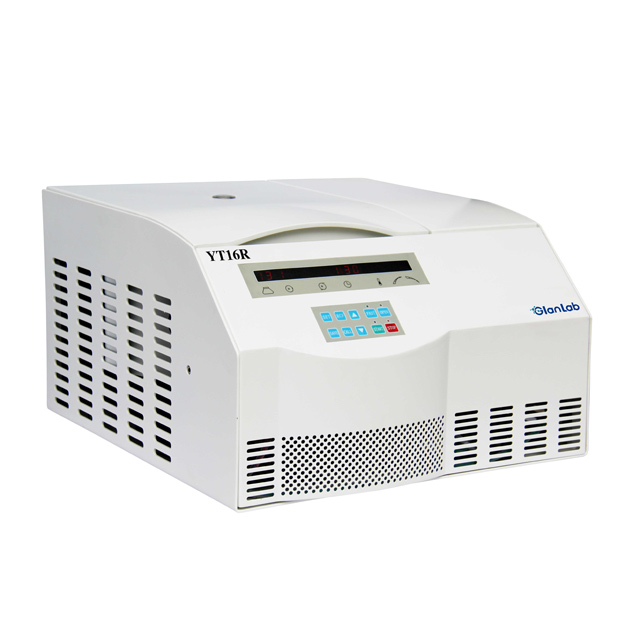

YT16R Desktop High-speed Refrigerated Centrifuge 16000r/min Max RCF 20600*g

YT16R is a high speed universal centrifuge which could hold 0.5ml/1.5ml/2ml/15ml/30ml/50ml/100ml. YT16 support conical bottom centrifuge tube.
  • YT16R

  • 16000rpm

  • 20600×g

  • Yes

  • 6×100ml

Availability:
Quantity:

YT16R Max 16000rpm,Max 6×100ml, TableTop High Speed Centrifuge,Micro or Large Capacity


Application:

Widely used in the field of biochemistry,biological products,pharmaceutical factory and laboratory.


Features:

* Brush-less frequency motor,in great torque, free maintenance, no powder pollution, quick in speed up and down.

* Microprocessor control

* Digital display in time, speed and RCF.

* 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.

* Automatically electric lid lock, over speed, over temperature protection and imbalance protection.

* High quality steel centrifuge body , stainless steel chamber,3 tiers protection,safe and reliable.

* Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction


YT16 Tecgnical Parameter

Max. Speed16000rpm
Max. RCF20600×g
Max. Capacity6×100ml
Time Range0~99min
RPM/RCF ConvertYes
Noise (dB)≤ 65
Acc/Dec10 Kinds
Speed Accuracy±20r/min
Temperature Accuracy±1℃
Voltage(V/Hz)AC 220V/110V  50HZ/60HZ
Size (L x W x Hmm)513×370×320mm
Net Weight(Kg)42KG
CertificatesCE,ISO & Calibration report are available


YT16R Tecgnical Parameter

Max. Speed16000rpm
Max. RCF20600×g
Max. Capacity6×100ml
Time Range1~9h59min
Noise (dB)≤ 58dBA
Speed Accuracy±20r/min
Temperature Range-20~40℃
Temperature Accuracy±1℃
Voltage(V/Hz)AC 220V/110V  50HZ 10A
Size (L x W x Hmm)570×620×380mm
Net Weight(Kg)84KG


Matched Rotors for YT16/YT16R

Order NoRotorMax speed (rpm)Max Volume(ml)Max RCF (g)
G16-1Angle rotor140004×8PCR12070
G16-2Angle rotor130006×8PCR16080
G16-3Angle rotor140008×8PCR13390
G16-4Angle rotor1300012×8PCR17220
G16-5Angle Rotor1500030×0.5ml18510
G16-6Angle Rotor1400040×0.5ml19970
G16-7Angle Rotor1600012×1.5/2ml17940
G16-8Angle Rotor1500024×1.5/2ml20600
G16-9Angle Rotor1350030×1.5/2ml19340
G16-10Angle Rotor1100048×1.5/2ml12840
G16-11Angle Rotor1500016×5ml19350
G16-12Angle Rotor1400012×7ml16370
G16-13Angle Rotor140006×10ml16460
G16-14Angle Rotor1300012×10ml14510
G16-15Angle Rotor1000012×15ml11840
G16-16Angle Rotor500024×15ml3080
G16-17Angle Rotor500030×15ml3830
G16-18Angle Rotor120008×20ml14510
G16-19Angle Rotor120006×30ml14000
G16-20Angle Rotor110006×50ml13480
G16-21Angle Rotor120006×70ml10810
G16-22Angle Rotor80006×100ml7280
G16-23Angle Rotor1200024 pieces capillary vessel15800
G16-24Microplate rotor40002×3×48 Well2300
