YF20R
0.5mL 1.5mL 5mL 7mL 10mL 15mL 30mL 50mL 85mL 100mL 800mL
21000rpm
30910
Yes
4x800ml
| Quantity: | |
|---|---|

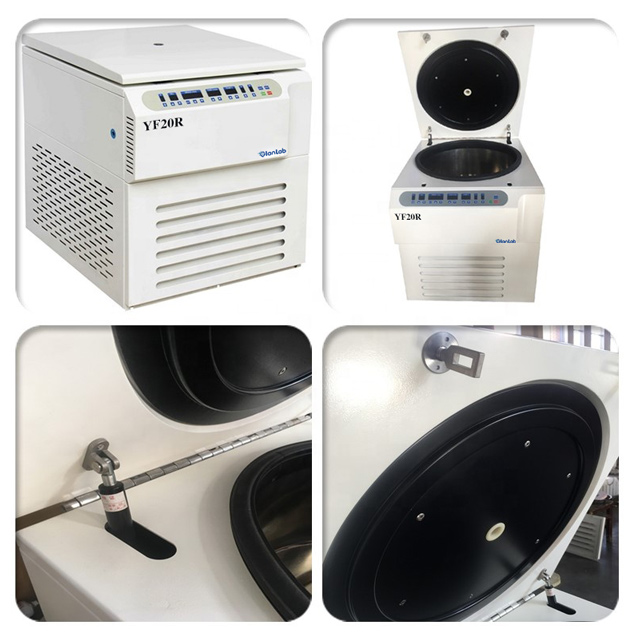

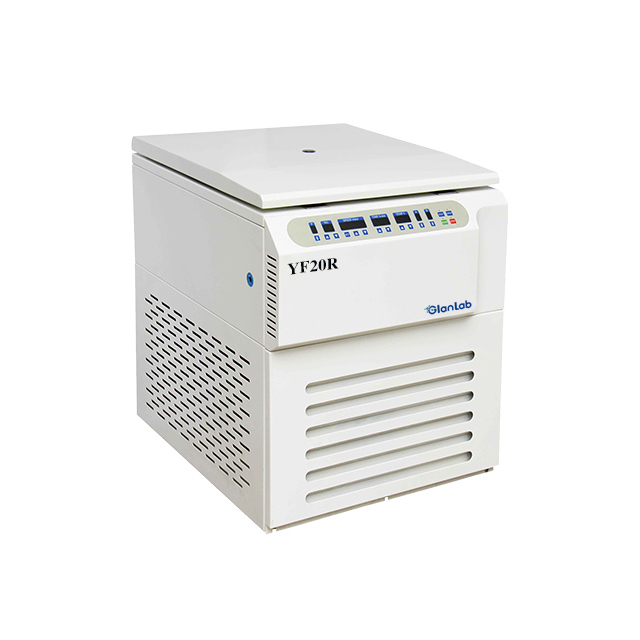

YF20R 21000rpm/30910xG Speed, Various Swing Rotor/Microplate Rotor/Fixed Rotor/Vertical Rotor,Vacuum Tube, Fat Bottle, PCR,Capillaries Tube Available, ISO/CE
Features：
* Brush-less frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down.
* Imported compressors fluorine free,double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control
* Microprocessor control, digital display which indicates the temperature, speed, time,RCF in operation, speed raising and reducing quickly, operate simply. Running parameter can be edited.
* 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
* Automatically electric lid lock, over speed, over temperature protection and imbalance protection.
* High quality steel centrifuge body , stainless steel chamber, built-in stainless steel explosion-proof protect inner sleeve , 3 tiers protection,safe and reliable.
* Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
YF20R Technical Parameter
| Max. Speed | 21000rpm |
| Max. RCF | 30910×g |
| Max. Capacity | 4×800ml |
| Time Range | 1~9h59min |
| Noise (dB) | ≤ 60 |
| Temperature | -20℃~40℃ |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | ±1℃ |
| Voltage(V/Hz) | AC 220V 50HZ 20A |
| Size (W x D x Hmm) | 720×540×830mm |
| Net Weight(Kg) | 170KG |

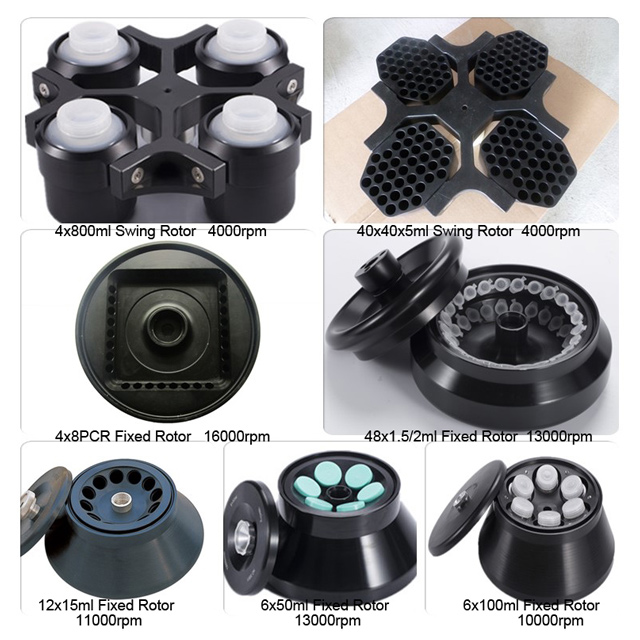

Matched Rotors for YF20R
| Order No | Rotor | Rotor Max Speed(r/min) | Volume(ml) | RCF(×g) |
G20-1

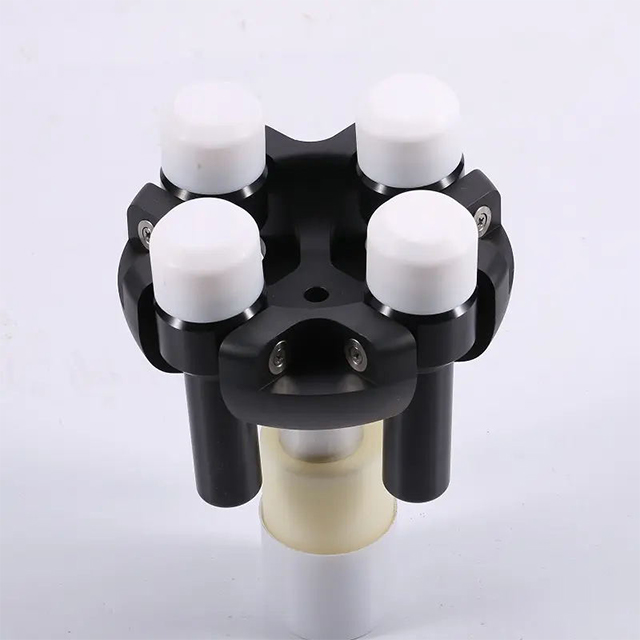

| Swing Rotor | 4000 | 4×800ml | 3450 |
G20-2

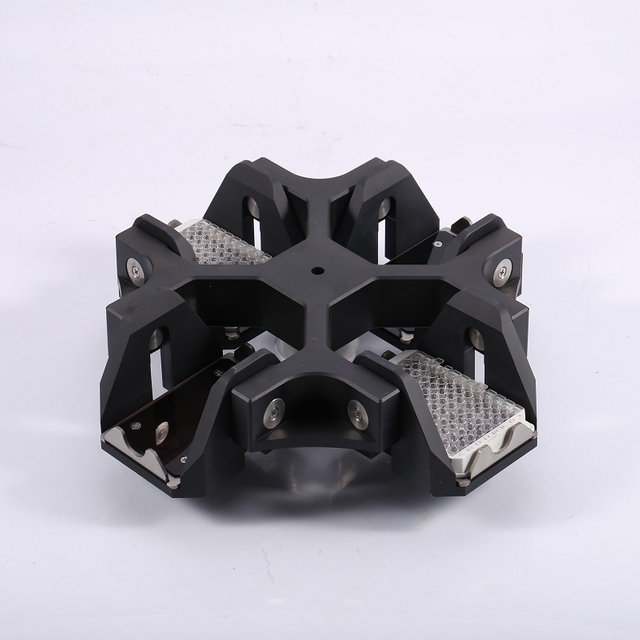

| Microplate rotor | 4000 | 4×4×96 well | 2940 |
| G20-3 | Microplate rotor | 4000 | 2×4×96 well | 3210 |

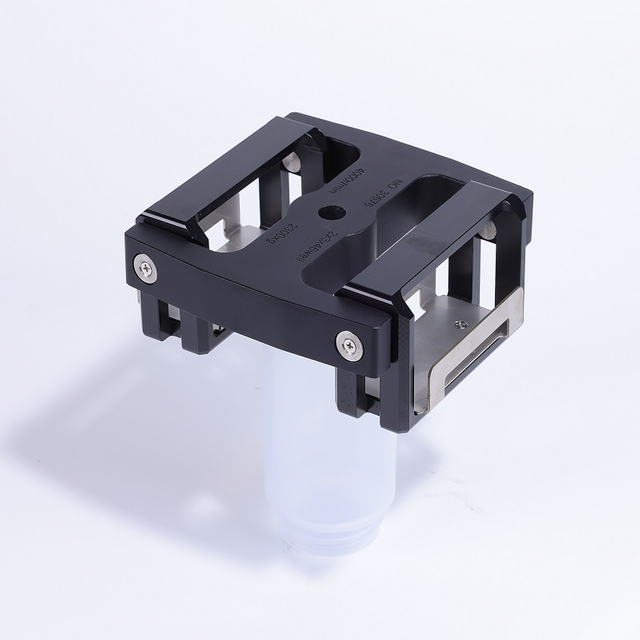

G20-4 | Microplate rotor | 4000 | 2×3×48 well | 2300 |
G20-5 | Swing rotor | 4000 | 4×40×7ml vacuum tube | 3270 |
| G20-6 | 4000 | 4×40×5ml vacuum tube | 2890 | |
| G20-7 | 4000 | 4×28×10ml vacuum tube | 3130 | |
| G20-8 | Swing Rotor | 4000 | Fat bottle | 3830 |
G20-9
| Fixed Rotor | 16000 | 4×8PCR | 15760 |
G20-10 | Fixed Rotor | 15000 | 6×8PCR | 21420 |
G20-11 | Fixed Rotor | 16000 | 8×8PCR | 17480 |
G20-12 | Fixed Rotor | 15000 | 12×8PCR | 22930 |
G20-13
| Fixed Rotor | 15000 | 40×0.5ml | 22920 |

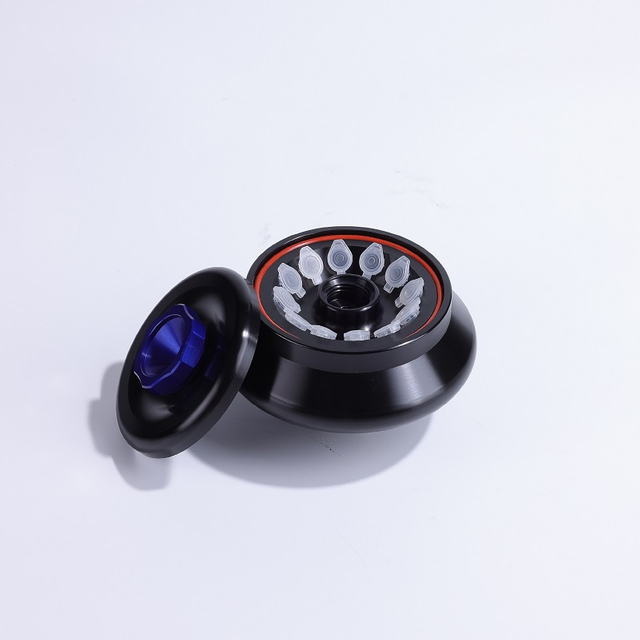

G20-14 | Fixed Rotor | 21000 | 12×1.5ml | 30910 |
G20-15 | Fixed Rotor | 16000 | 24×1.5ml | 23440 |
G20-16 | Fixed Rotor | 14000 | 30×1.5ml | 20800 |
G20-17 | Fixed Rotor | 13000 | 48×1.5ml | 17930 |
G20-18 | Fixed Rotor | 16000 | 16×5ml | 22020 |
G20-19
| Fixed Rotor | 16000 | 6×10ml | 21500 |
G20-20 | Fixed Rotor | 15000 | 12×10ml | 22680 |
G20-21 | Fixed Rotor | 13000 | 16×10ml | 19490 |
G20-22 | Fixed Rotor | 13000 | 8×15ml | 17790 |
G20-23 | Fixed Rotor | 11000 | 12×15ml | 14330 |
G20-24 | Fixed Rotor | 5000 | 24×15ml | 3500 |
G20-25 | Fixed Rotor | 5000 | 30×15ml | 3830 |
G20-26

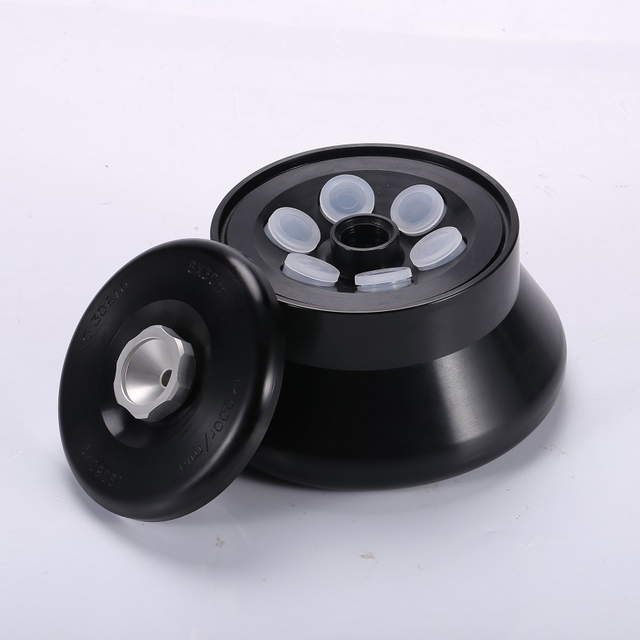

| Fixed Rotor | 14000 | 6×30ml | 19060 |
G20-27 | Fixed Rotor | 13000 | 6×50ml(conical) | 18840 |
G20-28 | Fixed Rotor | 13000 | 6×50ml(round) | 18730 |
G20-29 | Fixed Rotor | 5000 | 12×50ml | 3860 |
G20-30
| Fixed Rotor | 4000 | 24×50ml | 2970 |
| G20-31 | Fixed Rotor | 13000 | 4×85ml | 18940 |
G20-32
| Fixed Rotor | 12000 | 4×100ml | 14850 |
G20-33 | Fixed Rotor | 10000 | 6×100ml | 11380 |
G20-34 | Fixed Rotor | 4000 | 12×100ml | 2970 |
G20-35 | Fixed Rotor | 12000 | 24 capillaries | 15800 |
| G20-36 | Swing Rotor | 15000 | 4×5ml | 19920 |
| G20-37 | Vertical rotor | 16000 | 16×5ml | 16450 |
G20-38 | Vertical rotor | 14000 | 8×30ml | 19750 |
