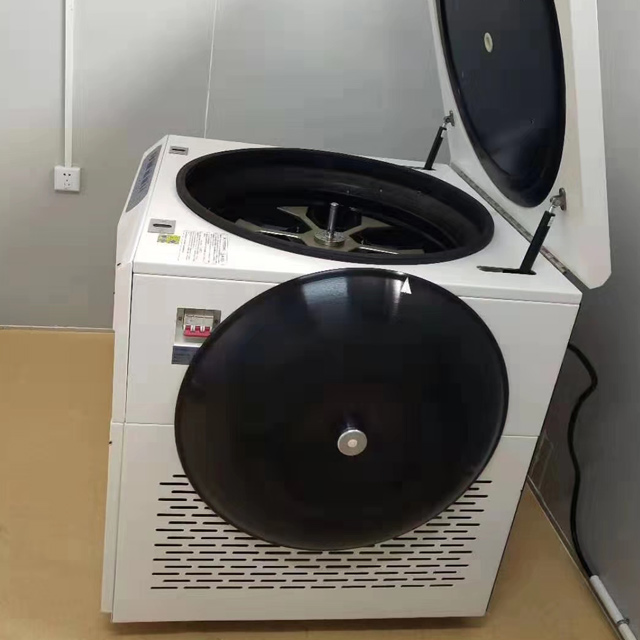

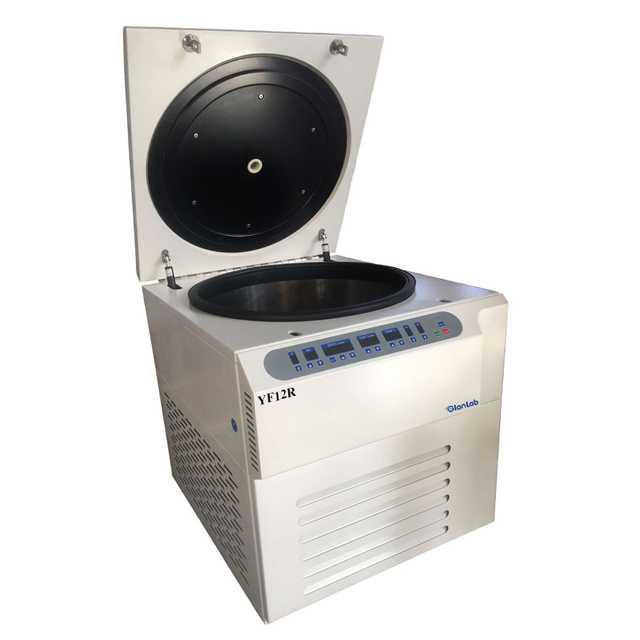

YF12R Large Capacity High Speed Centrifuge Refrigerated Centrifuge Plate Rotor Available

Model YF12R centrifuge can support large capacity 6*300ml with separating speed up to 12000ml, support 6*300ml with speed 8000ml. Moreover, YF12R can support microplate rotor with a speed of 4000rpm.
  • YF12R

  • 12000

  • 300mL, 500mL, 1000mL, PCR/ELISA Plate

  • 22650×g

  • Yes

  • 4×1000ml

Availability:
Quantity:

YF12R Large Capacity 4*1000ml with 4000rpm Swing Rotor,6*300ml with 12000rpm, High-Speed Centrifuge Refrigerated Centrifuge Floor Standing, Microplate Rotor Available


Features:

* Widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory.

* Brush-less frequency motor for model YF12R which in great torque, free maintenance, no powder pollution, quick in speed up and down.

* Model YF12R with the digital display which indicates the speed、time and temperature.

* Micro computer control, there are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.

* There are high speed rotors and low speed rotors for your choice.

* Electric lid lock, compact design, super speed and imbalance protection.

* The centrifuge body is made of high-quality steel, safe and reliable.


YF12R Technical Parameter

Max. Speed 12000rpm
Max. RCF 22650x g
Max. Capacity 4x1000ml
Timer 1~9h59min
RPM/RCF Convert Yes
Noise(dB) ≤ 60
Temperature Range -20~40°C
Acc/Dec 10 Kinds
Speed Accuracy ±20r/min
Temperature Accuracy ±1°C
Voltage(V/Hz) AC 220V/110V 50HZ/60HZ
Dimension(LxWx Hmm) 780x675x830mm
Net Weight(Kg) 260KG
Certificates CE,ISO & Calibration


Matched Rotors for YF12R

Product No. Rotor Type Max Speed(rpm) Volume(ml) Max RCF(g)

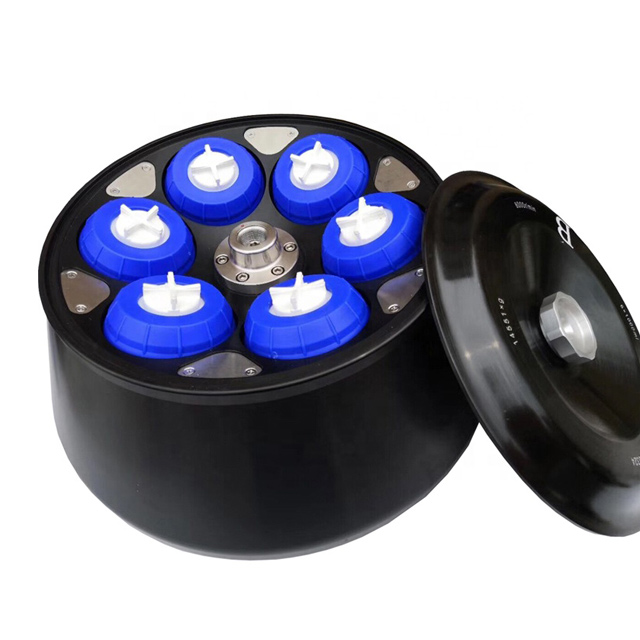

L12-1

Angle Rotor 12000 6×300ml 22650

L12-2

6x500 Angle Rotor

Angle Rotor 8000 6×500ml 11740

L12-3

4x1000ml Swing Rotor.web

Swing Rotor 4000 4×1000ml 4060

L12-4

4x4x96well Microplate Frame Type Rotor

Microplate Rotor 4000 4×4×96well 2940
L12-5 4000 2×4×96well 2490
