YT16E
16000
0.5mL, 1.5mL, 2mL, 5mL, 10mL
17940 x g
Yes
6×10ml
| Quantity: | |
|---|---|

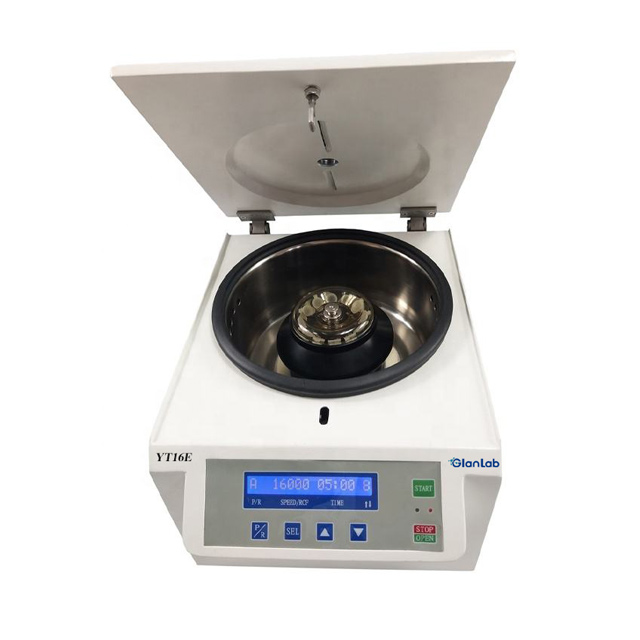

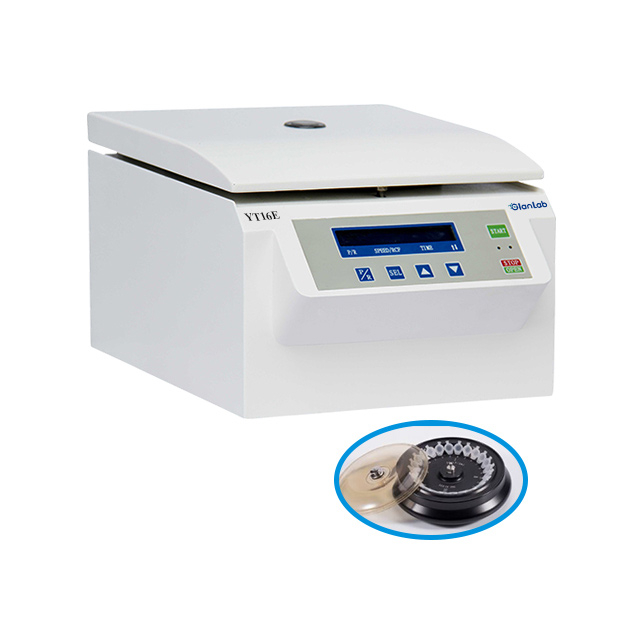

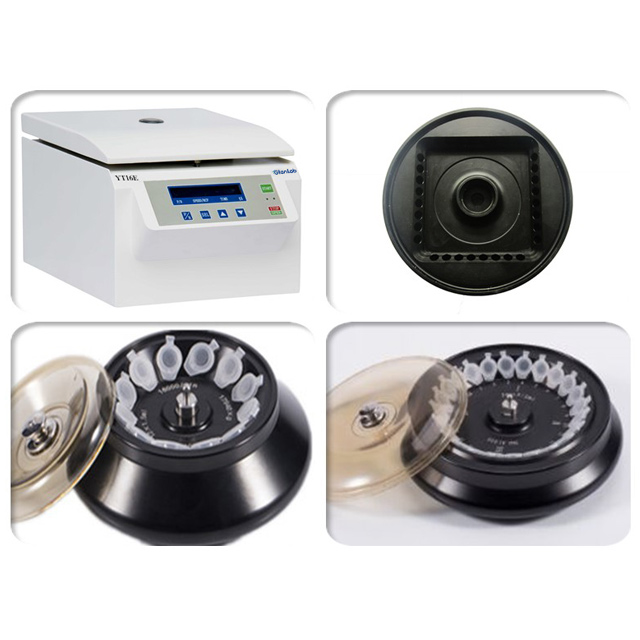

YT16E/YT16ER 0.2ml/0.5ml/1.5ml/2ml Micro Tubes 16000rpm(17940×g), Micro High Speed Centrifuge, PCR Assay
Features:
1. Brushless motor, no pollution, free-maintenance.
2. Microprocessor control, LED display which indicates the speed, time, RCF in operation, 10 kinds of brake setting, operate simply.
3. Electric lid lock, super speed, imbalance protection. The centrifuge body is made of high quality steel, stainless steel chamber, safe and reliable.
4. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
5. 3 tiers protection steel cover and get the ideal centrifugation result
YT16E Technical Parameters：
| Max. Speed | 16000rpm |
| Max. RCF | 17940×g |
| Max. Capacity | 6×10ml |
| Time Range | 0~99min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 65 |
| Temperature | Normal |
| Acc/Dec | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | / |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 370×290×215mm |
| Net Weight(Kg) | 16KG |
| Certificates | CE,ISO & Calibration report are available |
YT16ER Technical Parameters:
| Max. Speed | 16000rpm |
| Max. RCF | 17940×g |
| Max. Capacity | 6×10ml |
| Time Range | 1~9h59min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 58 |
| Temperature Range | -20～40°C |
| Acc/Dec | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | ±1℃ |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 480×480×275mm |
| Net Weight(Kg) | 43KG |
| Certificates | CE,ISO & Calibration report are available |

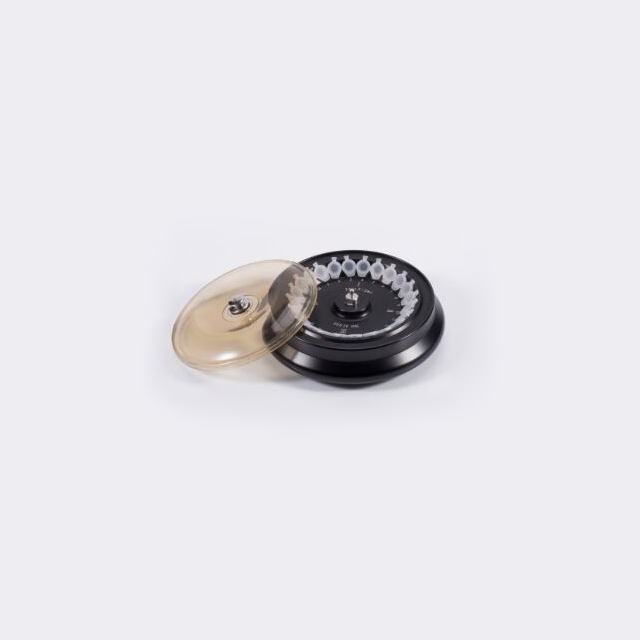

Matched Rotors for YT16E/YT16ER
| Order No | Rotor | Max speed (rpm) | Max Volume(ml) | Max RCF (g) |
16E-1 | Angle rotor | 13000 | 4×8PCR | 10410 |
16E-2 | Angle rotor | 13000 | 6×8PCR | 16080 |
16E-3
| Angle Rotor | 13000 | 40×0.5ml | 17210 |
16E-4 | Angle Rotor | 16000 | 12×1.5/2ml | 17940 |
16E-5 | Angle Rotor | 14000 | 24×1.5/2ml | 15470 |
16E-6 | Angle Rotor | 13000 | 30×1.5/2ml | 17930 |
16E-7 | Angle Rotor | 12000 | 48×1.5/2ml | 15280 |
16E-8
| Angle Rotor | 13000 | 10×5ml | 11810 |
16E-9 | Angle Rotor | 13000 | 6×10ml | 14190 |
16E-10 | Angle Rotor | 12000 | 24 pieces capillary vessel | 15800 |
