YT5B Gerber Centrifuge Milk Fat Testing Centrifuge Babcock Bottle

YT5B are Widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory, hospitals, blood banks.Its max capacity can reach at 4*800ml at the speed of 5000rpm.

Model:
YT5B
Max Speed(rpm):
5000
Tubes Size:
5mL, 7mL, 10mL, 15mL, 50mL, 100mL, 500mL, 750mL, 800mL, PCR/ELISA Plate
Max. RCF:
4730 x g
Support Refrigeration:
No
Max.Capacity:
4x800ml

Availability:

Quantity:



Inquire Add to Basket

Product Description

YT5B 5000rpm, 4*800ml, Milk Fat Testing Centrifuge For Babcock Bottle

Features：

1. Brush-less motor with simpler construction, more reliable performance, longer life and quietly running.

2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.

3. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.

4. Microprocessor control, YT5B with digital display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply.

5. 10 kinds of accelerating and decelerating speed for your choice.

YT5BR Technical Parameter

Max. Speed	5000rpm
Max. RCF	4730×g
Max. Capacity	4×800ml
Time Range	1～9h59min
Noise (dB)	≤ 60
Speed Accuracy	±20r/min
Temperature Range	-20～40°C
Temperature Accuracy	±1℃
Voltage(V/Hz)	AC 220V/110V 50HZ 15A
Size (L x W x Hmm)	720×710×410mm
Net Weight(Kg)	125KG

YT5B Technical Parameter

Max. Speed	5000rpm
Max. RCF	4730×g
Max. Capacity	4×800ml
Time Range	0~99min
Noise (dB)	≤ 60
Speed Accuracy	±20r/min
Voltage(V/Hz)	AC 220V/110V 50HZ 10A
Size (L x W x Hmm)	700×500×400mm
Net Weight(Kg)	67KG

Matched Rotors for YT5B/YT5BR

Order No	Rotor	Max Speed(r/min)	Volume(ml)	Max RCF(×g)
5B-1	Swing Rotor	4000	4×800ml	3450
5B-2	Swing Rotor	4000	4×750ml	3530

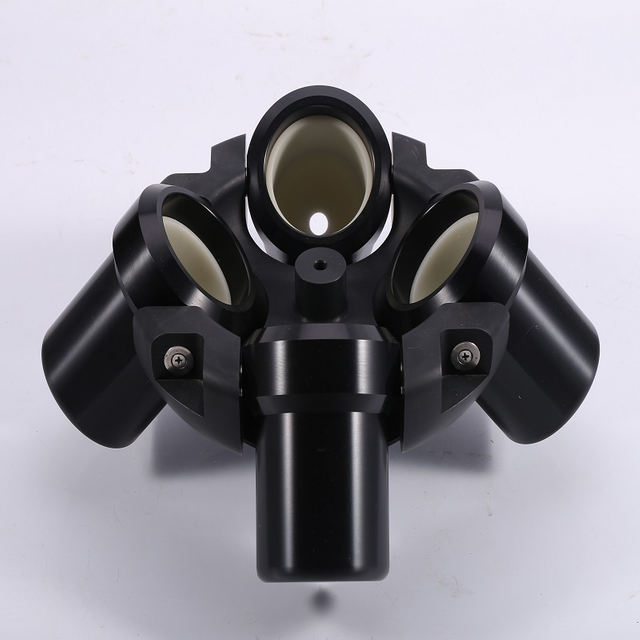

5B-3	Swing Rotor	4000	4×500ml	3380
5B-4	Swing Rotor	4000	4×4×96(well)	2940
5B-5	Microplate rotor	4000	2×4×96(well)	3210
5B-6	Microplate rotor	4000	2×3×48(well)	2300
5B-7	Swing rotor	5000	4×1×50ml	4730
		5000	4×1×100ml	4730
		4000	4×2×100ml	3020
		4000	4×2×50ml	3200
		4000	4×4×15ml	3200
		4000	4×6×15ml	3200
5B-8	Swing rotor	4000	4×8×15ml	3200
		4000	4×12×5ml vacuum tube	2480
		4000	4×12×7ml vacuum tube	2760
		4000	4×12×10ml vacuum tube	2880
		4000	4×8×10/7/5ml vacuum tube	2790
		4000	4×6×10/7/5ml vacuum tube	2790
		4000	4×4×10/7/5ml vacuum tube	2790
5B-9	Swing rotor	4000	4×24×5ml vacuum tube	2480
5B-9	Swing rotor	4000	4×31×5ml Khan tubes	2480
5B-10	Swing rotor	4000	4×24×7ml vacuum tube	3140
		4000	4×31×7ml Khan tubes	3140
		4000	4×30×7ml vacuum tube	3140
		4000	4×30×5ml vacuum tube	3140
		4000	4×40×7ml vacuum tube	3270
		4000	4×18×10ml vacuum tube	3140
5B-11	Swing rotor	4000	Dairy bottle	3830
5B-12	Fixed rotor	5000	6×15ml	2540
5B-13		5000	12×15ml	3080
5B-14		5000	24×15ml	3500
5B-15		5000	30×15ml	3830
5B-16		5000	4×50ml	2520
5B-17		5000	6×50ml	2850
5B-18		5000	12×50ml	3860
5B-19		4000	24×50ml	2970
5B-20		5000	4×100ml	2630
5B-21		5000	6×100ml	3130
5B-22		4000	12×100ml	2970
