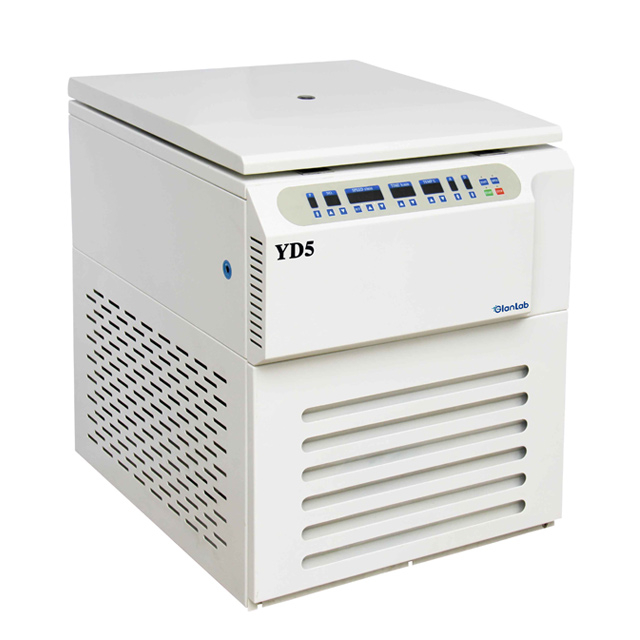

YD5 Floor Universal Blood Bank Economic Centrifuge

YD5 is widely used in the field of blood bank station, pharmaceutical factory and laboratory.The difference between YD5 and YD5R is that YD5R supports control temperature.Other parameters are almost the same. Model YD6 centrifuge have a bit higher speed than YD5.
  • YD5

  • 5000

  • 5mL, 7mL, 10mL, 15mL, 50mL, 100mL, 500mL, 750mL, 800mL, PCR/ELISA Plate

  • 4730×g

  • Yes

  • 4×800ml(4*500ml blood bag)

Availability:
Quantity:

YD5 4*800ml Blood Bank Centrifuge, 5000rpm, Various Rotor,Floor Standing Centrifuge


Features


* Widely used in the field of blood bank, pharmaceutical factory and laboratory.

* Brush-less frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down.

* Digital display which indicates the program, speed, time,RCF, temperature.

* Micro computer control, there are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.

* Electric lid lock, compact design, super speed and imbalance protection.

* The centrifuge body is made of high-quality steel, safe and reliable.


YD5R Technical Parameter

Max. Speed 5000rpm
Max. RCF 4730×g
Max. Capacity 4×800ml(4*500ml blood bag)
Timer 1~9h59min
RPM/RCF Convert Yes
Noise (dB) ≤ 58
Temperature Range -20~40℃
Acc/Dec 10 Kinds
Speed Accuracy ±20r/min
Temperature Accuracy ±1℃
Voltage(V/Hz) AC 220V/110V  50HZ/60HZ
Size (L x W x Hmm) 720×540×830mm
Net Weight(Kg) 180KG
Certificates CE,ISO & Calibration report are available



YD5 Technical Parameter


Max. Speed 5000rpm
Max. RCF 4730×g
Max. Capacity 4×800ml(4*500ml blood bag)
Timer 1~9h59min
RPM/RCF Convert Yes
Noise (dB) ≤ 58
Temperature Range /
Acc/Dec 10 Kinds
Speed Accuracy ±20r/min
Temperature Accuracy /
Voltage(V/Hz) AC 220V/110V  50HZ/60HZ
Size (L x W x Hmm) 720×540×830mm
Net Weight(Kg) 108KG
Certificates CE,ISO & Calibration report are available


Matched Rotors for YD5/YD5R


Order No Rotor Max Speed(r/min) Volume(ml) Max RCF(×g)

D5-1

4x800ml-Swing-Rotor

Swing Rotor 4000 4×800ml 3450

D5-2

Swing Rotor 4000 4×750ml 3530

D5-3

4x500ml-Swing-Rotor

Swing Rotor 4000 4×500ml (square cup) 3450

D5-4

Swing Rotor 4000 4×4×96(well) 2940
D5-5 Microplate rotor 4000 2×4×96(well) 2910

D5-6

2x3x48well-Microplate-rotor

2×3×48(well) 2300

D5-7

4x1x50ml Swing Buckets Rotor4x1x100ml-Swing-Rotor4x2x100ml-Swing-Rotor4x2x50ml-Swing-Rotor4x4x15ml-Swing-Rotor4x6x15ml Swing Buckets Rotor

Swing rotor 5000 4×1×50ml 4730
4×1×100ml 4730
4000 4×2×100ml 3020
4000 4×2×50ml 3200
4000 4×4×15ml 3200
4000 4×6×15ml 3200

D5-8

4x8x15ml Swing Buckets Rotor4x12x5ml Swing Buckets Rotor4x12x7ml-Swing-Rotor4x12x10ml-Swing-Rotor4x4x10ml Swing Buckets Rotor

Swing rotor 4000 4×8×15ml 3200
4000 4×12×5ml vacuum tube 2480
4000 4×12×7ml vacuum tube 2760
4000 4×12×10ml vacuum tube 2880
4000 4×8×10/7/5ml vacuum tube 2790
4000 4×6×10/7/5ml vacuum tube 2790
4000 4×4×10/7/5ml vacuum tube 2790
D5-9 Swing rotor 4000 4×24×5ml vacuum tube 2480
4000 4×31×5ml Khan tubes 2480
D5-10 Swing rotor 4000 4×24×7ml vacuum tube 3140
4000 4×31×7ml Khan tubes 3140
4000 4×30×7ml vacuum tube 3140
4000 4×30×5ml vacuum tube 3140
4000 4×40×7ml vacuum tube 3270
4000 4×18×10ml vacuum tube 3140
D5-11 Swing rotor 4000 Dairy bottle 3830

D5-12

6x15mL Angle Rotor

Fixed rotor 5000 6×15ml 2540

D5-13

12x15ml-Angle rotor

5000 12×15ml 3080

D5-14

24x15ml-Angle rotor

5000 24×15ml 3500

D5-15

30x15ml-Angle-rotor1

5000 30×15ml 3830

D5-16

4x50ml-Angle rotor

5000 4×50ml 2520

D5-17

6x50ml-Angle rotor

5000 6×50ml 2850

D5-18

12x50ml-Angle rotor

5000 12×50ml 3860

D5-19

24x50ml-Angle-rotor

4000 24×50ml 2970

D5-20

4x100ml-Angle-rotor

5000 4×100ml 2630

D5-21

6x100ml-Angle rotor

5000 6×100ml 3130

D5-22

12x100ml-Angle-rotor

4000 12×100ml 2970
