YT5
5mL 7mL 10mL 15mL 50mL 100mL 250mL
5000rpm
4730×g
No
4×250ml
| Quantity: | |
|---|---|

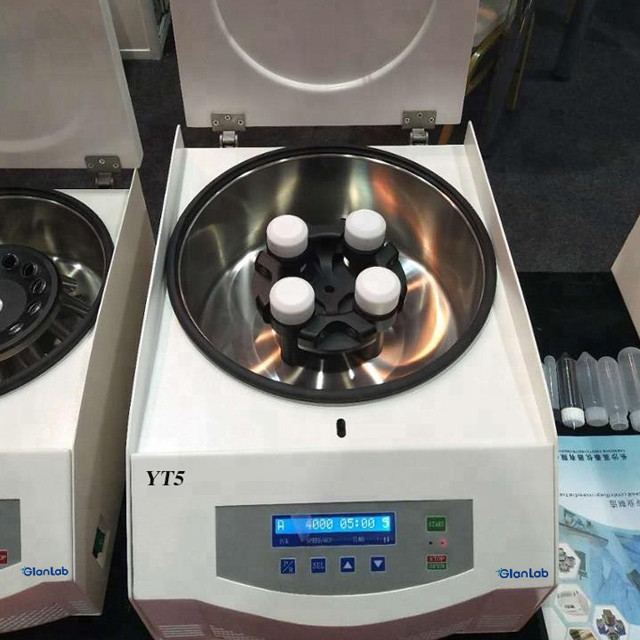

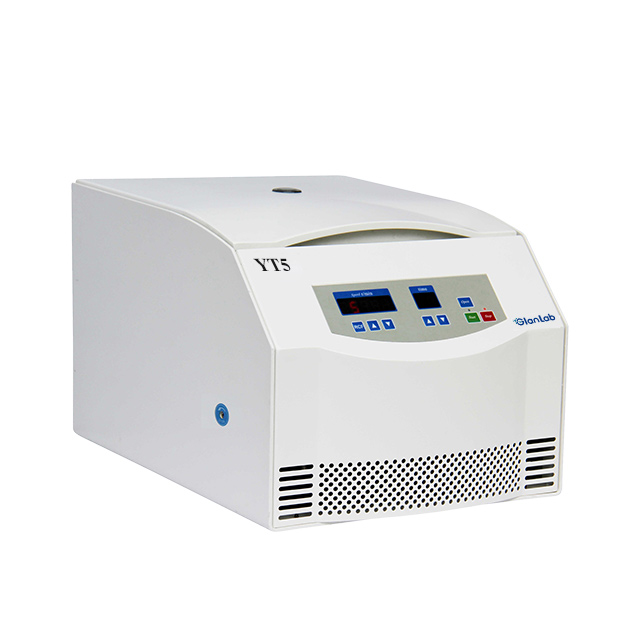

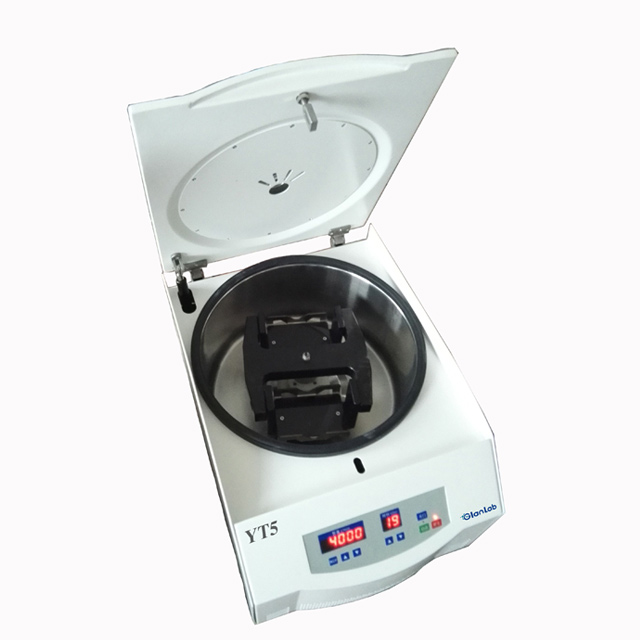

YT5 5000rpm, 4*250ml, Pre-cooling Design, Bench Top Universal Centrifuge, Smaller Size, Support Swing/Microplate/Fixed Rotor
Features：
* Refrigerated centrifuge, widely used in laboratory, blood bank and hospital.
* Imbalance sensor and over temperature sense
* Pre-cooling design, 10 kinds of acceleration and deceleration
* More than 20 kinds of rotors for your choice
* Low noise, small vibration and compact design.
* Import compressors fluorine free, double cycle cooling, free environment pollution
* The centrifuge body is made of high-quality steel, very safe
* User-friendly large digital display provides speed, time and temperature parameters
* Brushless motor which in great torque, no powder pollution, free maintenance, quick in speed up and down
YT5 Technical Parameter
| Max. Speed | 5000rpm |
| Max. RCF | 4730×g |
| Max. Capacity | 4×250ml |
| Time Range | 0~9h59min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 58 |
| Temperature | -20℃-40℃ |
| Acc/Dec | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | ±1℃ |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 650×665×400mm |
| Net Weight(Kg) | 83KG |
| Certificates | CE,ISO & Calibration report are available |
YT5R Technical Parameter
| Max. Speed | 5000rpm |
| Max. RCF | 4730×g |
| Max. Capacity | 4×250ml |
| Time Range | 0~99min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 58 |
| Temperature | / |
| Acc/Dec | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | / |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 400×570×320mm |
| Net Weight(Kg) | 35KG |
| Certificates | CE,ISO & Calibration report are available |

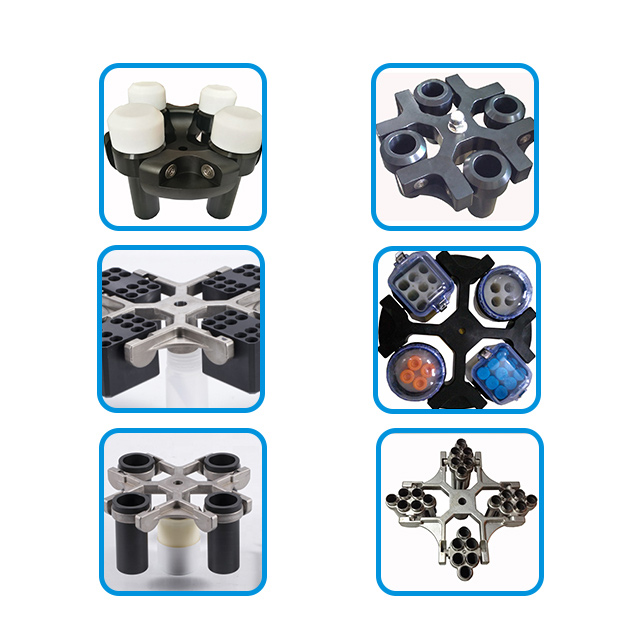

Matched Rotors for YT5/YT5R
| Order No | Rotor | Max Speed(r/min) | Volume(ml) | Max RCF(×g) |
D5-1

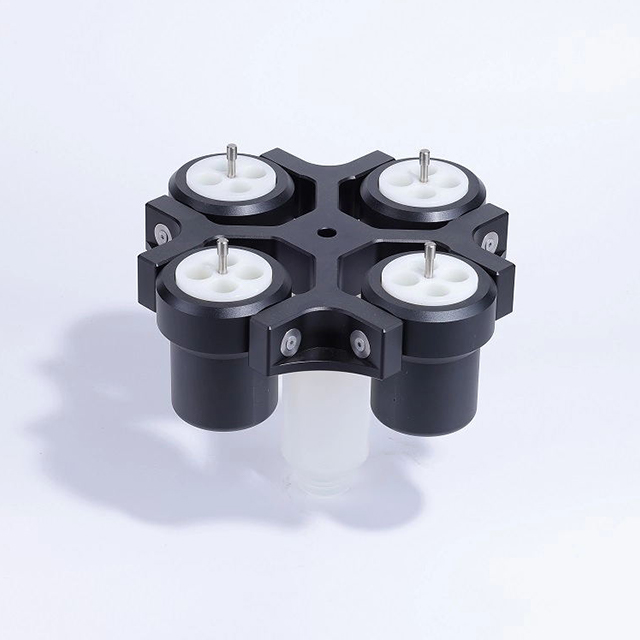

| Swing rotor(round cup) | 4000 | 4×250ml | 2880 |

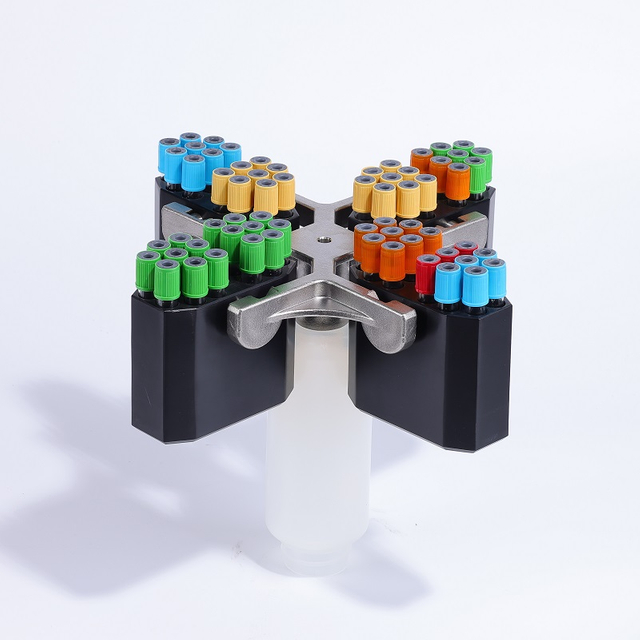

D5-2
| Swing buckets | 4000 | 4×16×7ml | 2860 |
D5-3 | 4000 | 4×16×5ml | 2470 | |
D5-4
| 4000 | 4×13×10ml | 2830 | |

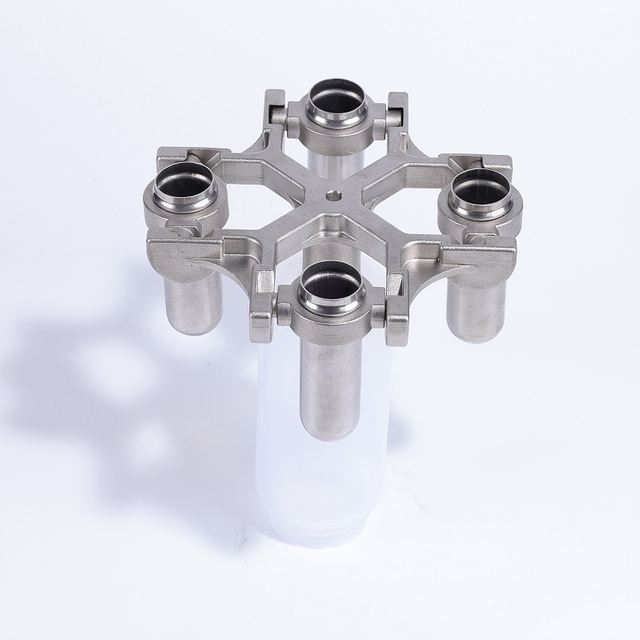

D5-5
| Swing rotor | 5000 | 4×1×50ml | 4730 |

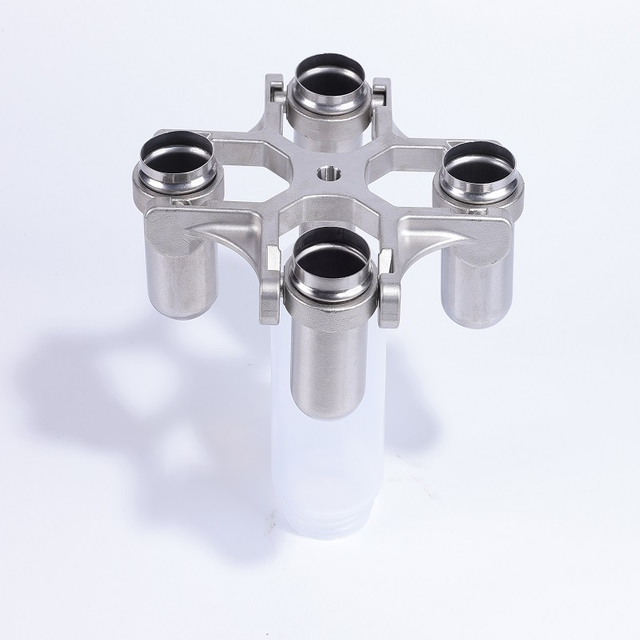

D5-6
| 4×1×100ml | 4730 | ||

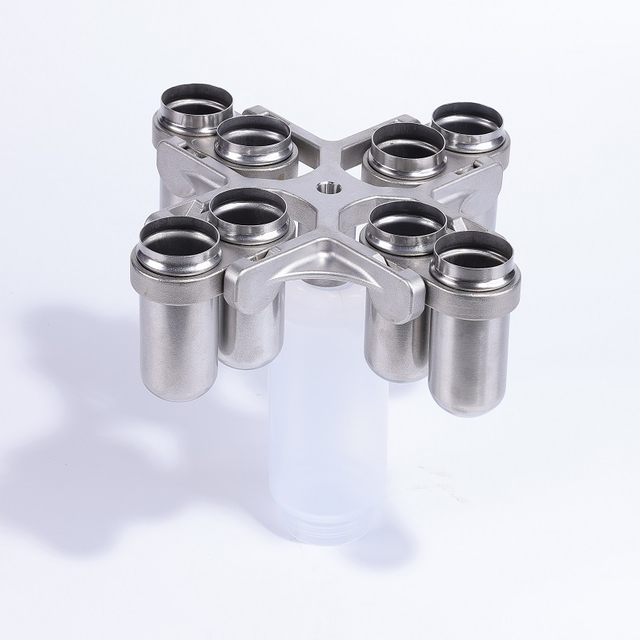

D5-7
| 4000 | 4×2×100ml | 3020 | |
D5-8

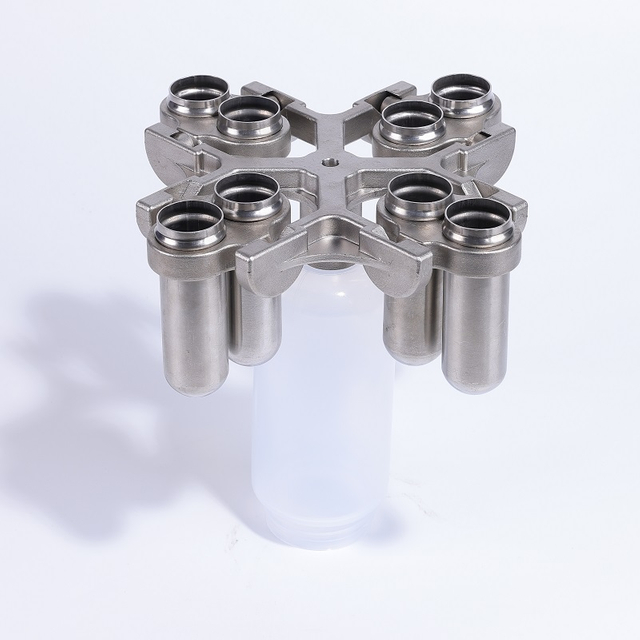

| 4×2×50ml | 3020 | ||

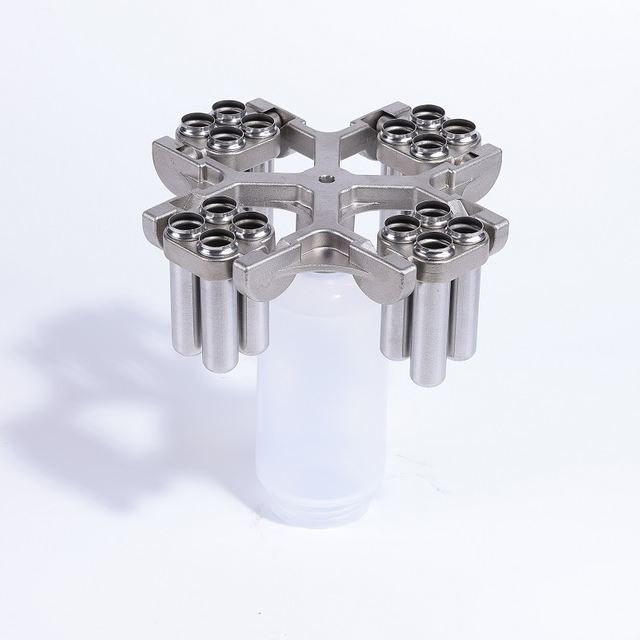

D5-9
| 4×4×15ml | 3020 | ||

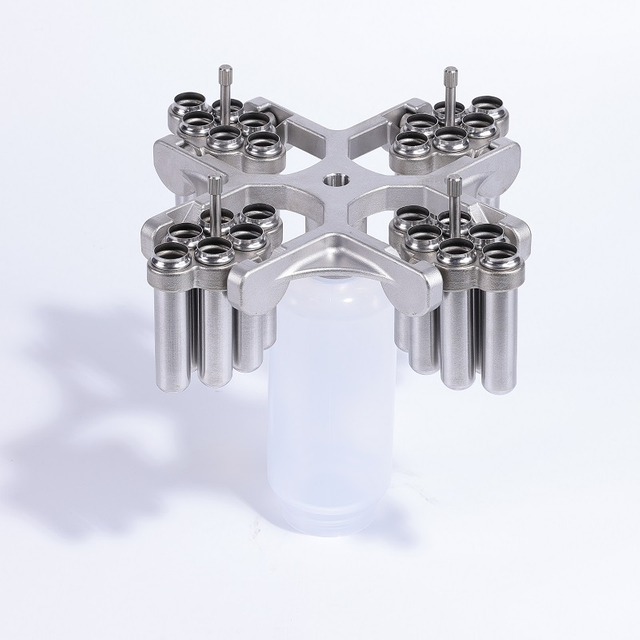

D5-10
| 4×6×15ml | 3020 | ||
D5-11
| 4×4×10/7 | 2770 | ||
D5-12 | 4×4×5 vacuum tube adapters | 2360 | ||
| D5-13 | 4×6×10/7 | 2770 | ||
| D5-14 | 4×6×5 vacuum tube adapters | 2360 | ||
| D5-15 | 4×8×10/7 | 2770 | ||
| D5-16 | 4×8×5 vacuum tube adapters | 2360 | ||

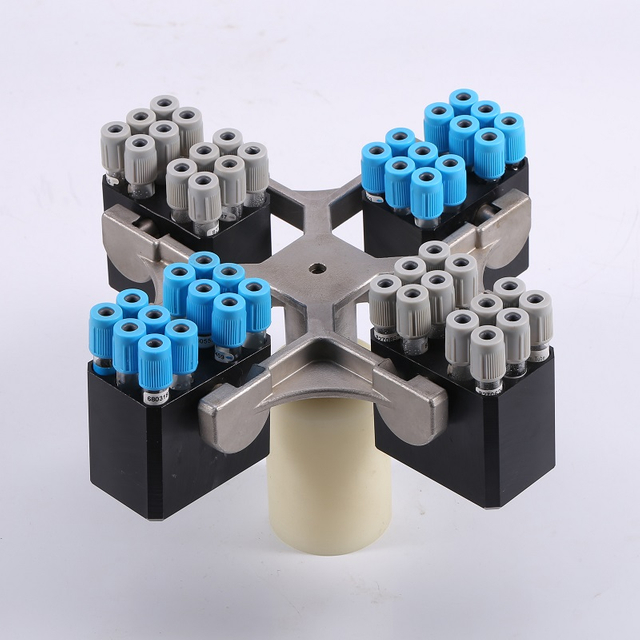

D5-17
| 4×12×5 vacuum tube | 2480 | ||
D5-18

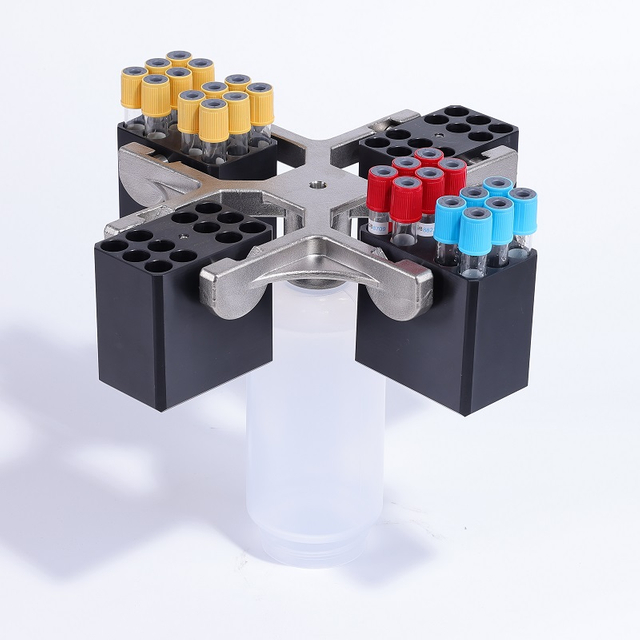

| 4×12×7 vacuum tube | 2760 | ||

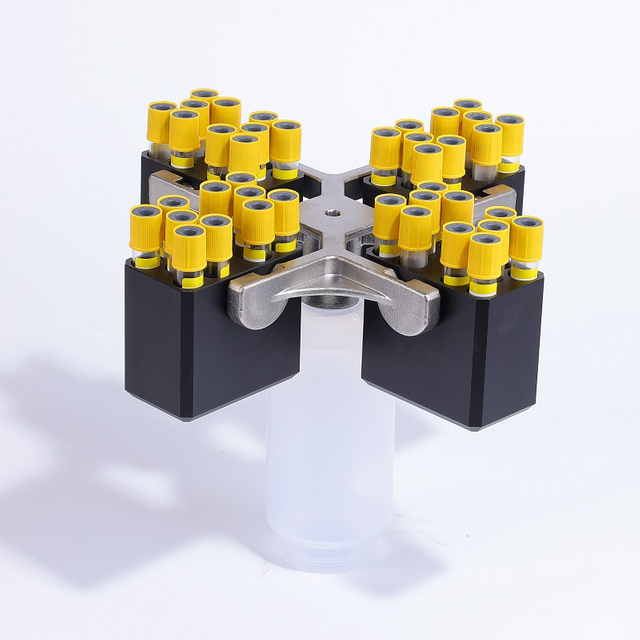

D5-19
| 4×10×10 vacuum tube | 2880 | ||
D5-20 | Microplate rotor | 4000 | 2×3×96 well | 2310 |
D5-21
| Fixed rotor | 5000 | 6×15ml | 2540 |
D5-22

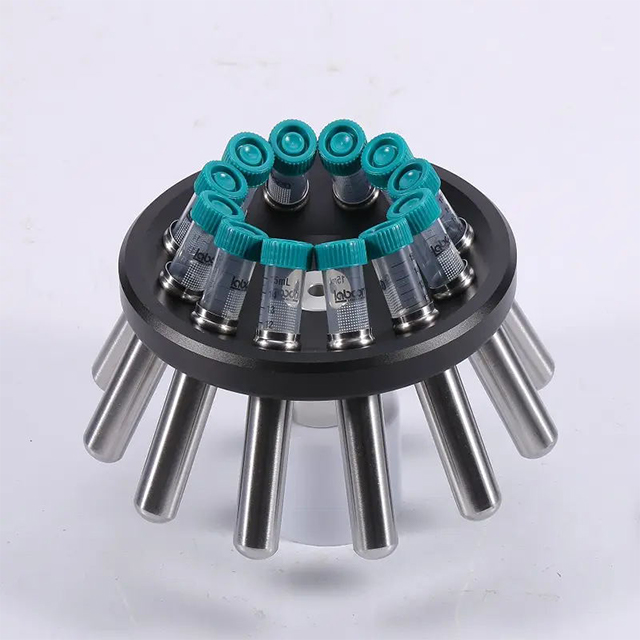

| Fixed rotor | 5000 | 12×15ml | 3080 |
D5-23
| 5000 | 24×15ml | 3500 | |

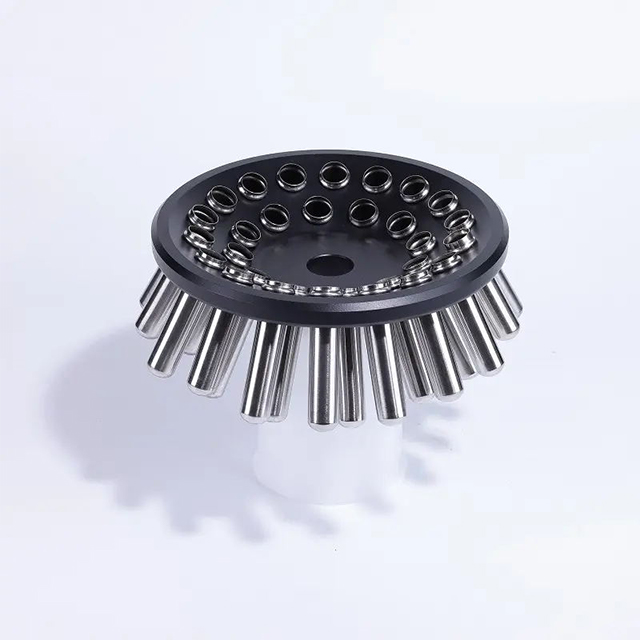

D5-24
| 5000 | 30×15ml | 3830 | |
D5-25

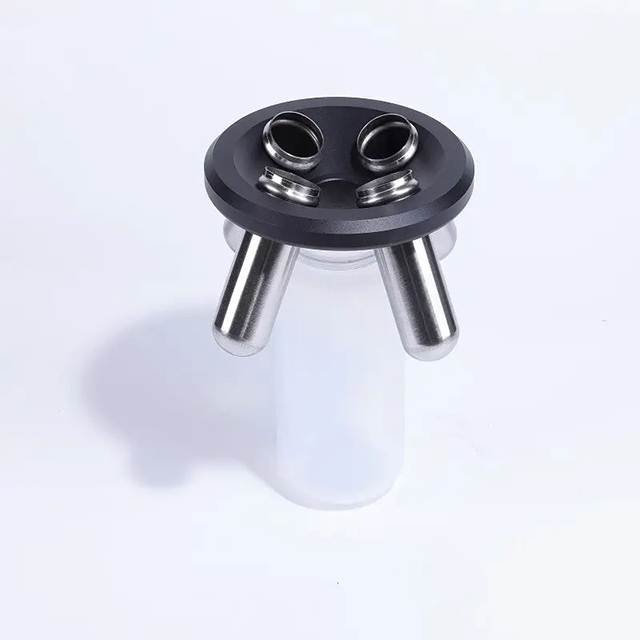

| 5000 | 4×50ml | 2520 | |
D5-26
| 5000 | 6×50ml | 2850 | |
D5-27
| 5000 | 12×50ml | 3860 | |

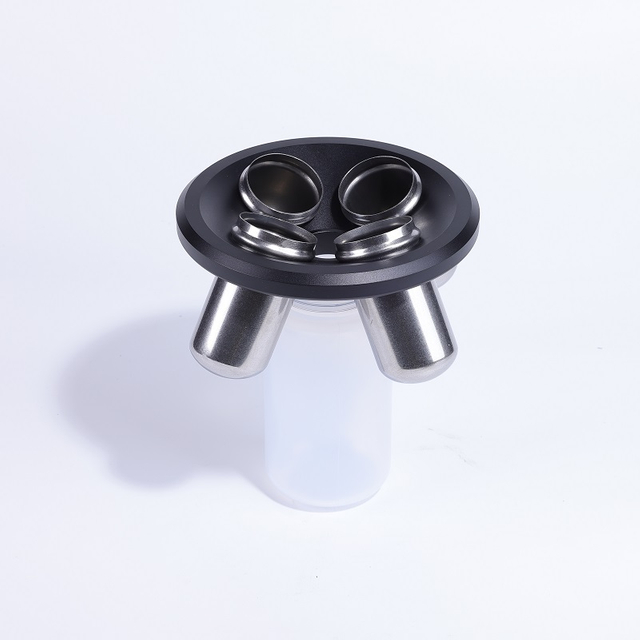

D5-28
| 5000 | 4×100ml | 2630 | |
D5-29

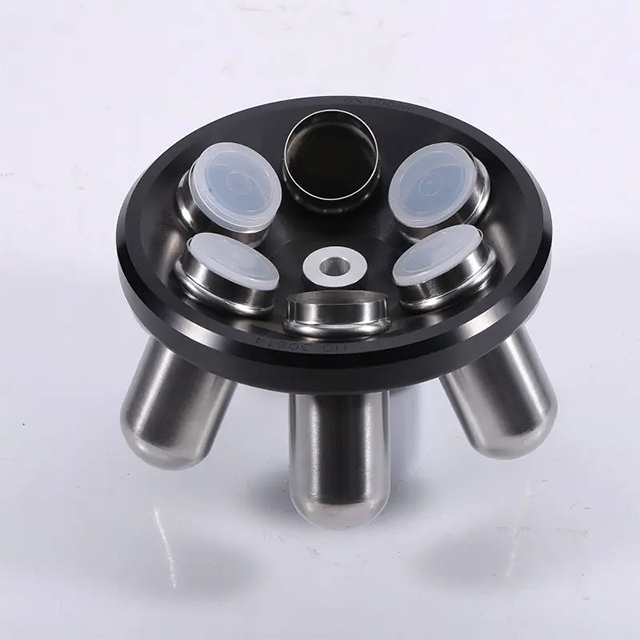

| 5000 | 6×100ml | 3130 |
