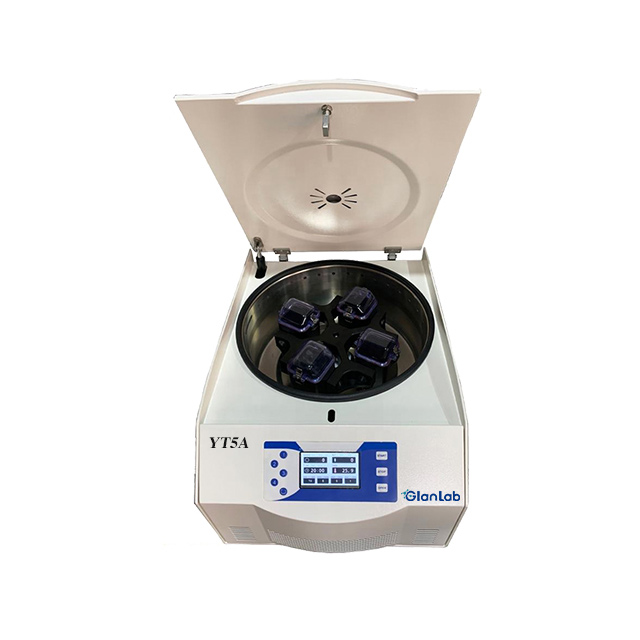

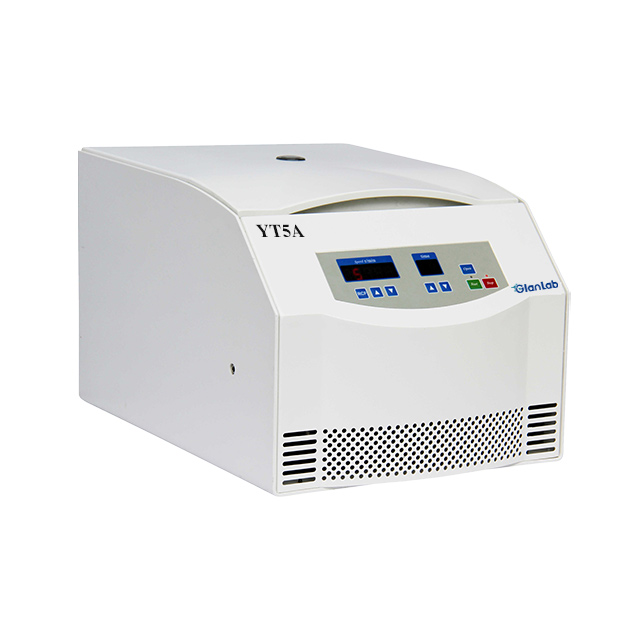

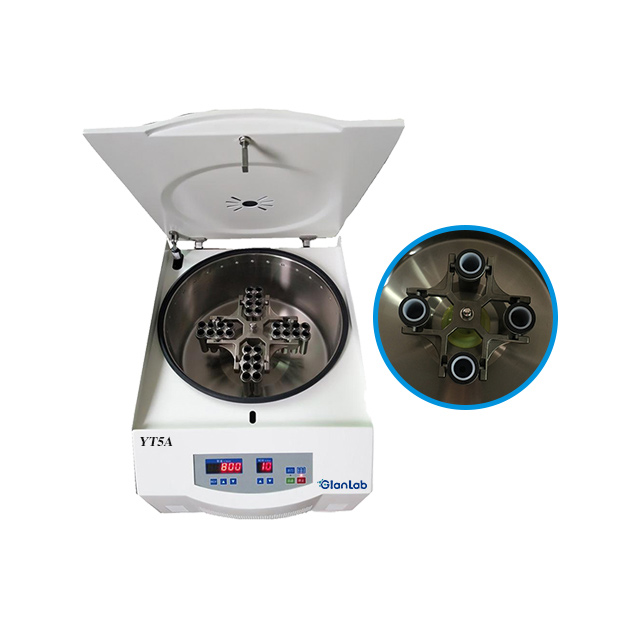

YT5A 5000rpm Series Universal Hospital Centrifuge Blood Station

YT5A is a kind of low speed centrifuge with middle capacity.It can hold 4pcs*300ml bucket, also can hold 96pcs 5ml or 7ml vacuum tube. YT5A is widely used in hospital and blood station.

Model:
YT5A
Capacity*:
5mL 7mL 10mL 15mL 50mL 100mL 300mL
Max. Speed:
5000rpm
Max. RCF:
4730×g
Support Refrigeration:
Yes
Max.Capacity:
4×300ml

Availability:

Quantity:



Inquire Add to Basket

Product Description

YT5A 5000rpm, 4*300ml, Pre-cooling Design, Tabletop Centrifuge, Support Swing/Microplate/Fixed Rotor

Features：

* Widely used in field of blood bank. Hospital and laboratory.

* Pre-cooling design for YT5AR, 10 kinds of acceleration and deceleration

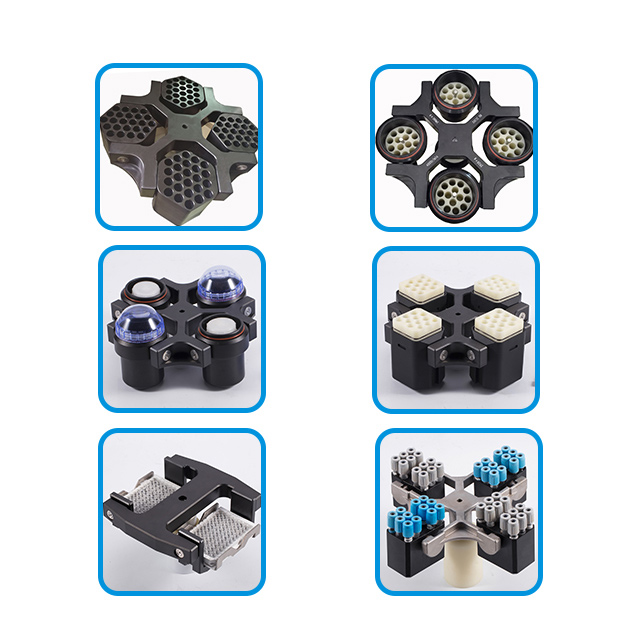

* More than 10 rotors for your choice

* Low speed, low noise, compact design and small vibration

* User-friendly LED display provides speed, time and temperature parameters.

* Brushless frequency motor in great torque, no powder pollution, free maintenance, quick in speed up and down

* Imbalance sensor and over speed sensor, the centrifuge body is made of high-quality steel, very safe.

* Electric lid lock,over speed protection,over temperature protection and imbalance protection.

YT5AR Technical Parameter -- support pre-cooling

Max. Speed	5000rpm
Max. RCF	4730×g
Max. Capacity	4×300ml
Time Range	1~9h59min
RPM/RCF Convert	Yes
Noise (dB)	≤ 60
Temperature	-20℃~40℃
Acc/Dec	10 Kinds
Speed Accuracy	±20r/min
Temperature Accuracy	±1℃
Voltage(V/Hz)	AC 220V/110V 50HZ 15A
Size (W x D x Hmm)	640×665×420mm
Net Weight(Kg)	118KG
Certificates	CE,ISO & Calibration report are available

YT5A Technical Parameter

Max. Speed	5000rpm
Max. RCF	4730×g
Max. Capacity	4×300ml
Time Range	1~9h59min
RPM/RCF Convert	Yes
Noise (dB)	≤ 60
Temperature	/
Acc/Dec	10 Kinds
Speed Accuracy	±20r/min
Temperature Accuracy	/
Voltage(V/Hz)	AC 220V/110V 50HZ 3A
Size (W x D x Hmm)	620×450×355mm
Net Weight(Kg)	52KG
Certificates	CE,ISO & Calibration report are available

Matched Rotors for YT5A/YT5AR

Rotor NO.	Rotor Type	Max speed(r/min)	Volume (ml)	Max RCF(*g)

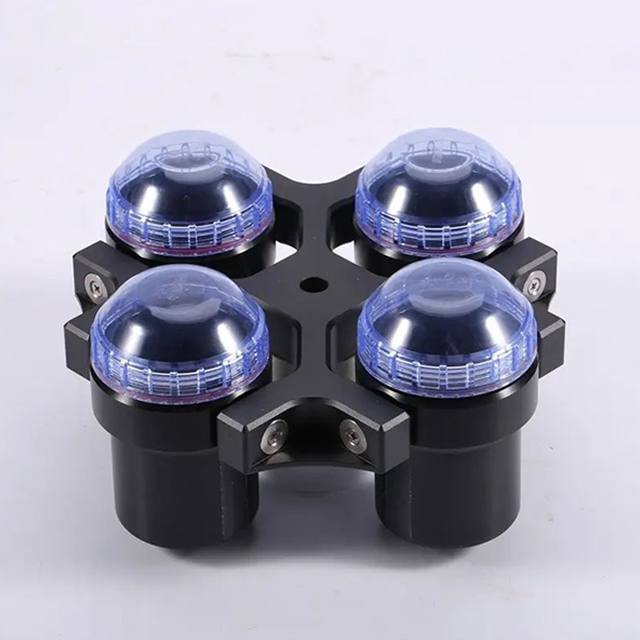

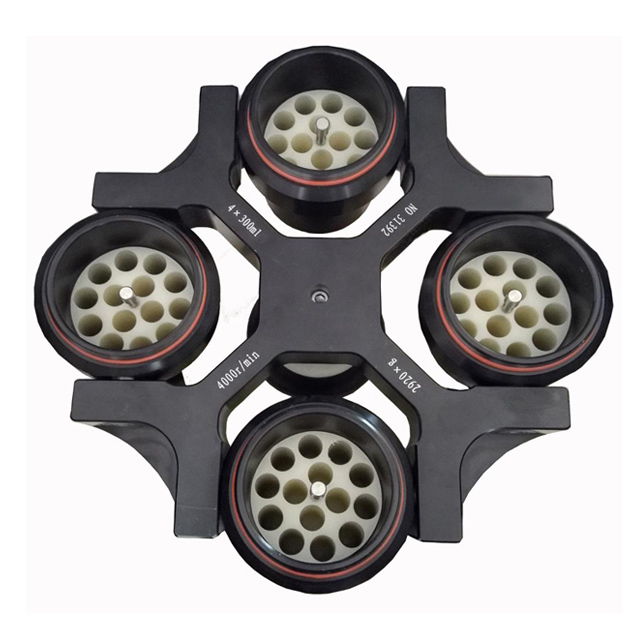

5A-1	Swing rotor (round cup)	4000	4×300ml	3180

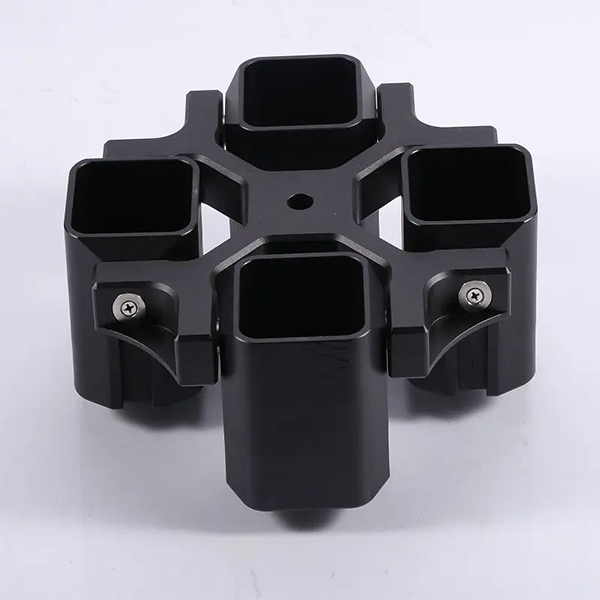

5A-2	Swing rotor (square cup)	4000	4×300ml	3150
5A-3	Swing rotor	4000	4×24×7ml	3150
		4000	4×24×5ml	2750
		4000	4×18×10ml	3140
5A-4	Microplate rotor	4000	2×4×96 well	2910
5A-5	Microplate rotor	4000	2×4×48 well	2300

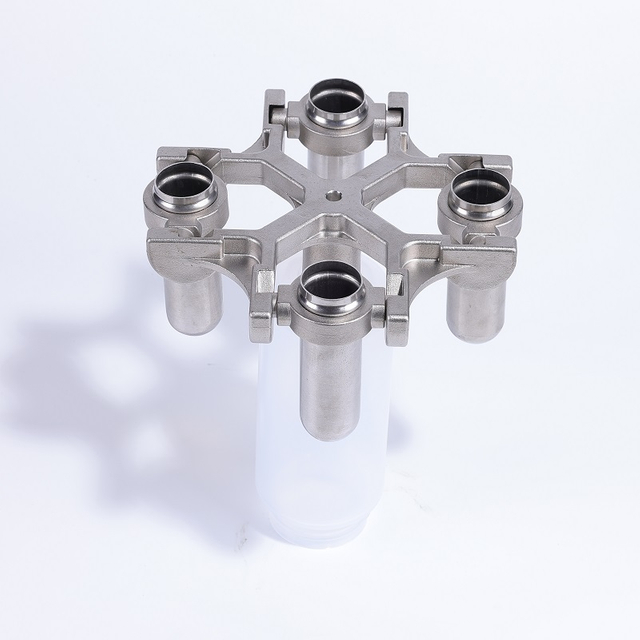

5A-6	Swing rotor	5000	4×1×50ml	4730

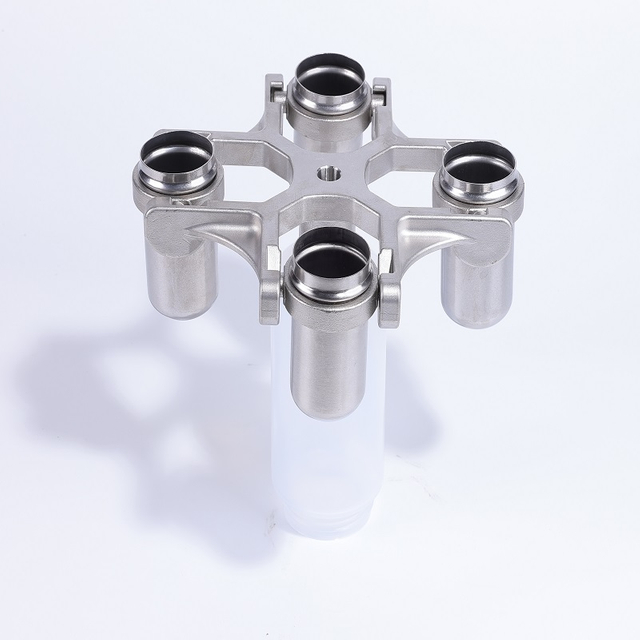

5A-6	Swing rotor	5000	4×1×100ml	4730

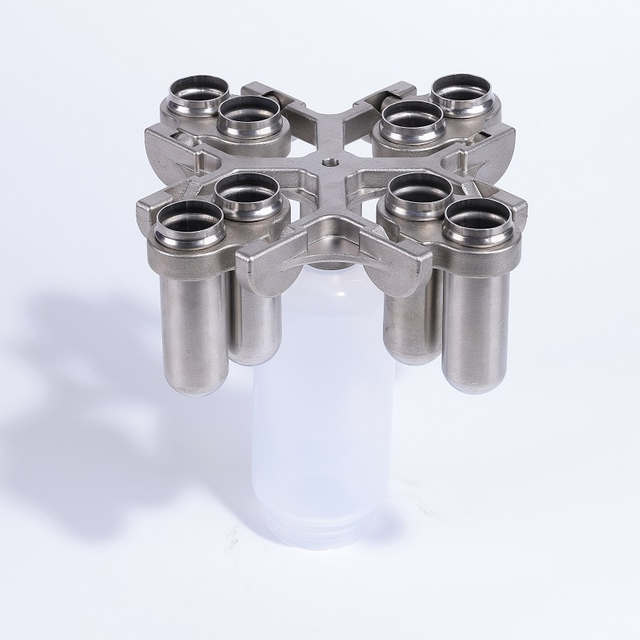

5A-7	Swing rotor	4000	4×2×50ml	3200

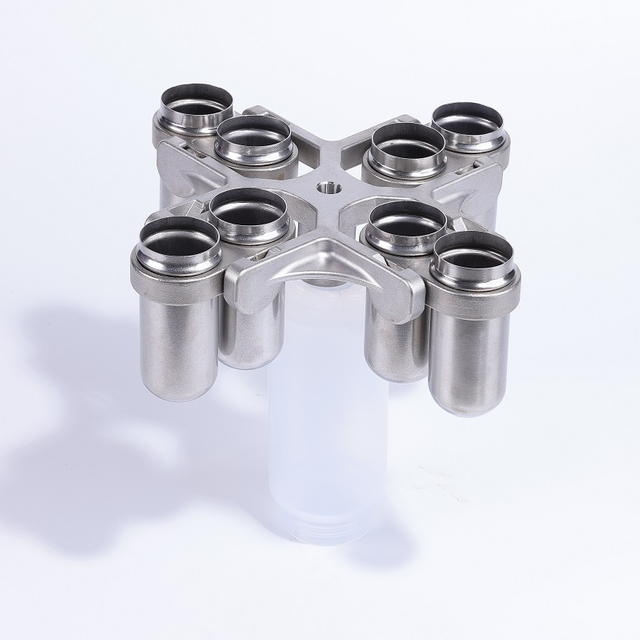

		4000	4×2×100ml	3020

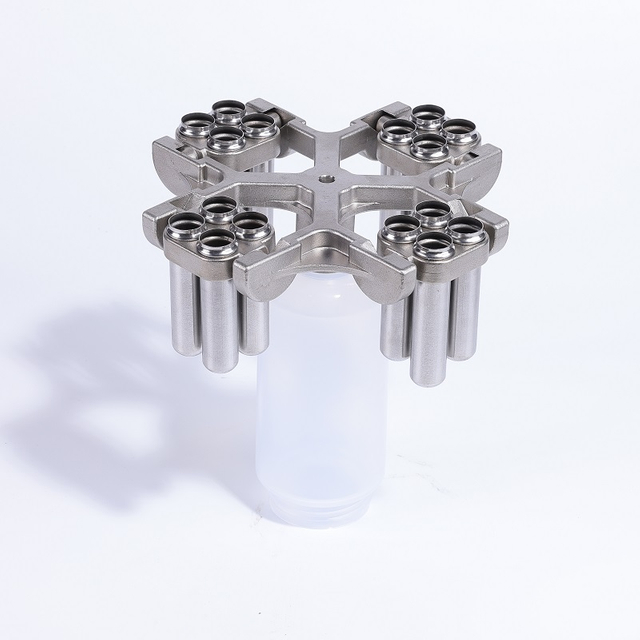

		4000	4×4×15ml	3200
		4000	4×6×15ml	3200

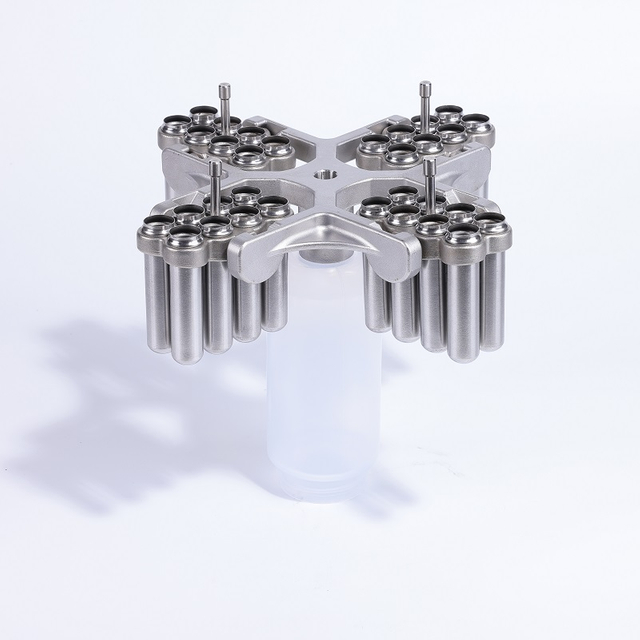

		4000	4×8×15ml	3200
		4000	4×12×5ml vacuum tube	2480
		4000	4×12×7ml vacuum tube	2760

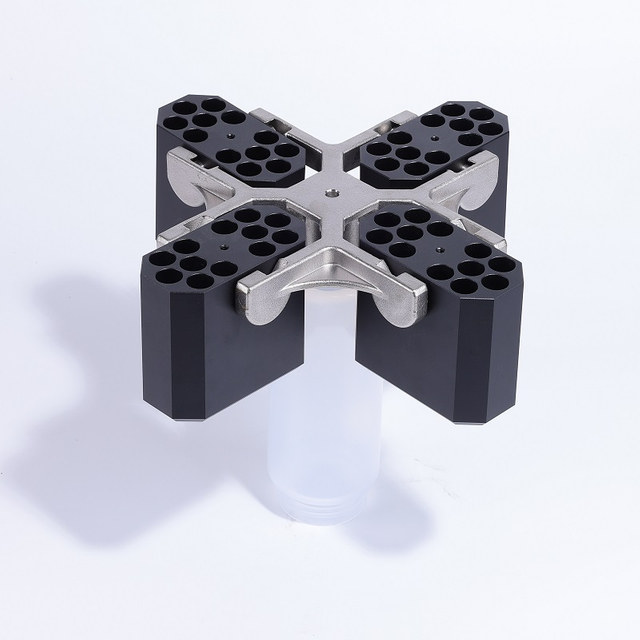

		4000	4×12×10ml vacuum tube	2790
		4000	4×8×10/7/5ml vacuum tube	2790
		4000	4×6×10/7/5ml vacuum tube	2790
		4000	4×4×10/7/5ml vacuum tube	2790
5A-8	Fixed Rotor	5000	6×15ml	2540
5A-9	Fixed Rotor	5000	12×15ml	3080
5A-10	Fixed Rotor	5000	24×15ml	3500
5A-11	Fixed Rotor	5000	30×15ml	3830
5A-12	Fixed Rotor	5000	4×50ml	2520
5A-13	Fixed Rotor	5000	6×50ml	2850
5A-14	Fixed Rotor	5000	12×50ml	3860
5A-15	Fixed Rotor	4000	24×50ml	2970
5A-16	Fixed Rotor	5000	4×100ml	2630
5A-17	Fixed Rotor	5000	6×100ml	3130
5A-18	Fixed Rotor	4000	12×100ml	2970
