PCR Plate Centrifuge Guide: 96-Well And 384-Well Plate Preparation

A PCR plate centrifuge is used for short spin-down steps in PCR, qPCR, and high-throughput molecular biology workflows. For 96-well and 384-well plates, the goal is usually not heavy separation, but to collect droplets from well walls, reduce bubbles, and help liquid settle at the bottom of each well before thermal cycling, reading, storage, or downstream handling.

GlanLab provides plate centrifuge and microplate centrifuge options for laboratories that need reliable plate preparation. When selecting a plate centrifuge, buyers should check plate format, sealing method, balance method, speed/RCF range, safety features, and daily throughput instead of choosing by speed alone.

Why PCR Plates Need Centrifugation

Collecting droplets from well walls

After pipetting, sealing, or mixing, small droplets may remain on the side wall of each well or on the sealing film. A PCR plate centrifuge helps move these droplets to the bottom of the wells through a brief spin-down step, making plate preparation more consistent before the next process.

Reducing bubbles before PCR or qPCR

Bubbles can appear after pipetting, mixing, or sealing. In PCR and qPCR workflows, they may affect liquid positioning, sealing quality, or optical reading. A short centrifugation step helps reduce common liquid handling issues, but it should not be described as a guarantee of better PCR results.

Short spin after mixing or sealing

Many labs perform a short spin after adding reagents, mixing samples, or applying sealing film. Speed and time should not be copied from unrelated online protocols. Users should follow reagent instructions, plate manufacturer guidance, the centrifuge manual, and internal lab SOPs.

96-Well vs 384-Well Plate Differences

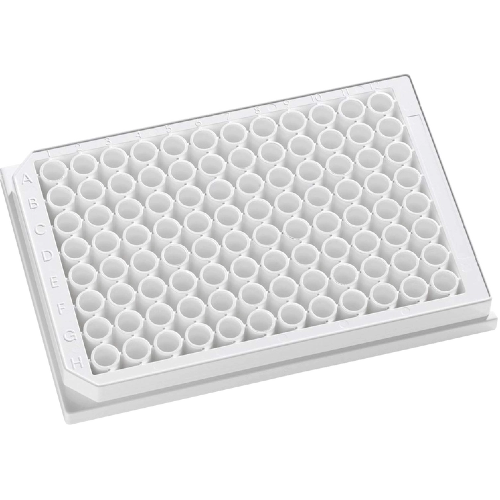

96-well plates: common and easier to handle

A 96-well plate is one of the most common formats in PCR and qPCR laboratories. Compared with 384-well plates, it usually has larger well volume, easier pipetting space, and simpler visual inspection. For many routine labs, a 96 well plate centrifuge is enough for daily preparation.

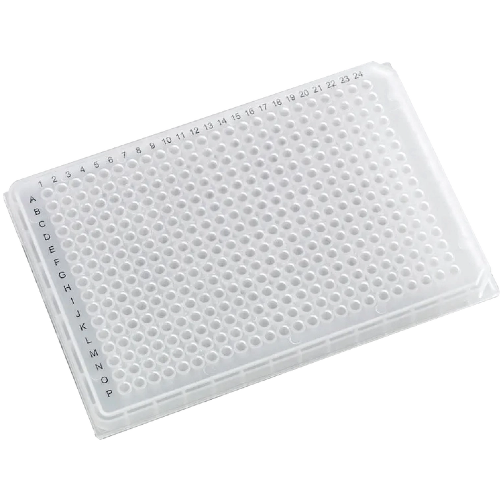

384-well plates: smaller volume and higher handling sensitivity

A 384-well plate is often used for higher-throughput workflows. Because each well contains smaller liquid volume, droplets, bubbles, sealing quality, and plate positioning become more important. A centrifuge that fits 96-well plates may not automatically fit 384-well plates.

What buyers should check before choosing

Buyers should confirm whether the centrifuge supports 96-well plates, 384-well plates, skirted plates, semi-skirted plates, non-skirted plates, PCR tube strips, and sealed plates. Loading direction also matters because some microplate centrifuges use vertical loading, while others use different rotor structures.

PCR Strip, Skirted and Non-Skirted Plates

PCR strips and small-volume microplates

Some laboratories use 0.2ml PCR tubes, 8-tube strips, or small-volume strip formats instead of full PCR plates. In this case, buyers should check whether the microplate centrifuge supports PCR strips directly or requires adapters.

Skirted, semi-skirted, and non-skirted PCR plates

Skirted, semi-skirted, and non-skirted plates differ in frame structure and mechanical support. These differences affect how the plate sits inside the centrifuge, so a safe fit is more important than a general claim of “PCR plate compatibility.”

Plate adapters and loading direction

Adapters may be needed for specific plate types or PCR strips. The loading direction also affects operation speed and convenience. A suitable PCR plate centrifuge should match the actual plate format used in the lab, not just the general category name.

Quick Spin vs Separation Centrifugation

PCR plate centrifuges are mainly for quick spin

A PCR plate centrifuge is mainly designed for brief centrifugation of plates. Its common use is droplet collection, bubble reduction, and liquid settlement. It is different from a centrifuge used for blood tubes, large bottles, or heavy sample separation.

Difference from standard laboratory centrifuges

Standard centrifuges may be designed for tubes, conical tubes, bottles, blood samples, or larger sample containers. By contrast, a microplate centrifuge is designed around plate format and short spin convenience. Buyers comparing laboratory centrifuge products should separate plate preparation needs from tube separation needs.

Why speed is not the only factor

Speed is only one specification. For PCR plate preparation, acceleration, braking, lid lock, imbalance detection, plate fit, noise level, and footprint also matter. A compact model with correct plate compatibility may be more useful than a faster model that does not fit the lab’s plates.

Plate Balance and Sealing Film Concerns

Why plate balance matters

PCR plates should be loaded symmetrically according to the centrifuge design. If only one plate is used, some centrifuges may require a balance plate. For guidance on how to centrifuge 96 well plate, balance, sealing, and loading method should be checked before routine use.

Sealing film and leakage concerns

Sealing film, adhesive film, heat seals, and cap strips should be applied correctly before centrifugation. Poor sealing may lead to leakage or sample loss during spinning, so users should check whether the plate is sealed evenly and fits the chamber without obstruction.

Safe operation before and after centrifugation

A good PCR plate centrifuge should include safe lid control and stable operation. Features such as lid lock, imbalance warning, and smooth braking help reduce operational risk. Users should not bypass safety protection.

Microplate Centrifuge Selection Table

Plate compatibility table

Buyer checklist

Before ordering, confirm the plate format, plate type, sealing method, maximum speed/RCF, acceleration and braking performance, balance method, lid lock, imbalance detection, noise level, footprint, voltage, plug requirement, and supplier support.

Final inquiry direction

When contacting a supplier, provide the plate format, plate type, sealing method, daily throughput, expected quick spin requirement, voltage, and workspace limitations. You can request a centrifuge recommendation from GlanLab based on your PCR plate preparation needs.

Common Handling Mistakes

Choosing a tube centrifuge instead of a plate centrifuge

Tube centrifuges and plate centrifuges are designed for different sample carriers. A general tube centrifuge should not be used for PCR plates unless a compatible plate rotor is clearly specified.

Ignoring 384-well or skirted plate compatibility

Some labs begin with 96-well plates but later move to 384-well or skirted formats. Choosing a model with broader compatibility can reduce future replacement needs.

Using fixed protocol values from unrelated sources

Speed and time values should come from reagent instructions, plate guidance, centrifuge manuals, and lab SOPs. Universal PCR centrifugation settings should not be copied without verification.

Conclusion

A PCR plate centrifuge should be selected for plate compatibility, quick spin performance, balance method, sealing safety, and daily workflow efficiency. For 96-well and 384-well plate preparation, buyers should confirm plate format, plate type, sealing method, speed/RCF range, safety features, and throughput before choosing a model.

GlanLab provides plate centrifuge and microplate centrifuge solutions for PCR/qPCR labs, molecular biology labs, and high-throughput sample preparation workflows. Users can share their plate format, sealing method, voltage, and daily handling requirements with GlanLab to select a suitable centrifuge,contact us.

FAQ

What is a PCR plate centrifuge used for?

It is mainly used for quick spin-down of PCR plates, collecting droplets from well walls, reducing bubbles, and helping liquid settle at the bottom of the wells.

Can a PCR plate centrifuge handle 96-well and 384-well plates?

Some models support both formats, but buyers must confirm compatibility with the specific plate type, plate height, and sealing method.

Is a microplate centrifuge the same as a standard centrifuge?

No. A microplate centrifuge is designed for plate formats, while standard centrifuges are often designed for tubes, bottles, or other sample containers.

Do I need a special centrifuge for skirted PCR plates?

The centrifuge must clearly support skirted, semi-skirted, or non-skirted plates. Clearance and frame support should be checked before purchase.

How should I choose a 96 well plate centrifuge?

Check plate compatibility, speed/RCF range, balance method, sealing safety, acceleration/braking, footprint, noise level, and supplier support.
