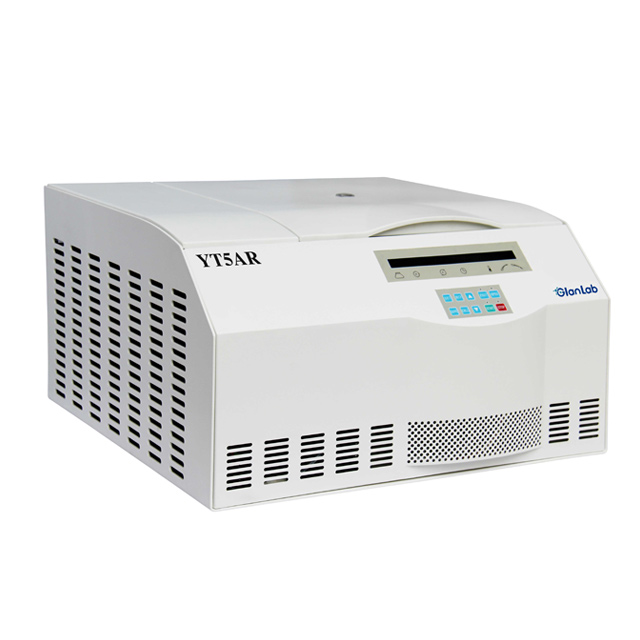

YT5AR Blood Station Refrigerated Centrifuge

YT5AR is a kind of low speed centrifuge with middle capacity.It can hold 4pcs*300ml bucket, also can hold 96pcs 5ml or 7ml vacuum tube. YT5A is widely used in hospital and blood station.
  • YT5AR

  • 5000

  • 5mL, 7mL, 10mL, 15mL, 50mL, 100mL, 300mL, PCR/ELISA Plate

  • 4730×g

  • Yes

  • 4×300ml

Availability:
Quantity:

YT5AR 5000rpm, 4*300ml, Pre-cooling Design, Tabletop Centrifuge, Support Swing/Microplate/Fixed Rotor



Features:

* Widely used in field of blood bank. Hospital and laboratory.

* Pre-cooling design for YT5AR, 10 kinds of acceleration and deceleration

* More than 10 rotors for your choice

* Low speed, low noise, compact design and small vibration

* User-friendly LED display provides speed, time and temperature parameters.

* Brushless frequency motor in great torque, no powder pollution, free maintenance, quick in speed up and down

* Imbalance sensor and over speed sensor, the centrifuge body is made of high-quality steel, very safe.

* Electric lid lock,over speed protection,over temperature protection and imbalance protection.


YT5AR Technical Parameter

Max. Speed 5000rpm
Max. RCF 4730×g
Max. Capacity 4×300ml
Time Range 1~9h59min
RPM/RCF Convert Yes
Noise (dB) ≤ 60
Temperature -20℃~40℃
Acc/Dec 10 Kinds
Speed Accuracy ±20r/min
Temperature Accuracy ±1℃
Voltage(V/Hz) AC 220V/110V  50HZ 15A
Size (W x D x Hmm) 640×665×420mm
Net Weight(Kg) 118KG
Certificates CE,ISO & Calibration report are available


YT5A Technical Parameter

Max. Speed 5000rpm
Max. RCF 4730×g
Max. Capacity 4×300ml
Time Range 1~9h59min
RPM/RCF Convert Yes
Noise (dB) ≤ 60
Temperature /
Acc/Dec 10 Kinds
Speed Accuracy ±20r/min
Temperature Accuracy /
Voltage(V/Hz) AC 220V/110V  50HZ 3A
Size (W x D x Hmm) 620×450×355mm
Net Weight(Kg) 52KG
Certificates CE,ISO & Calibration report are available


Matched Rotors for YT5A/YT5AR


Rotor NO. Rotor Type Max speed(r/min) Volume (ml) Max RCF(*g)

5A-1

4x300ml-Swing Rotor(round cup)

Swing rotor (round cup) 4000 4×300ml 3180

5A-2

4x300ml-Swing Rotor square cup

Swing rotor (square cup) 4000 4×300ml 3150
5A-3 Swing rotor 4000 4×24×7ml 3150
4000 4×24×5ml 2750
4000 4×18×10ml 3140
5A-4 Micro18plate rotor 4000 2×4×96 well 2910
5A-5 Microplate rotor 4000 2×4×48 well 2300

5A-6

4x1x50ml Swing Buckets Rotor4x1x100ml-Swing-Rotor

Swing rotor 5000 4×1×50ml 4730
5000 4×1×100ml 4730
5A-74x2x50ml-Swing-Rotor4x2x100ml-Swing-Rotor4x4x15ml-Swing-Rotor4x6x15ml Swing Buckets Rotor4x8x15ml Swing Buckets Rotor4x12x5ml Swing Buckets Rotor4x12x7ml-Swing-Rotor4x12x10ml-Swing-Rotor4x4x10ml Swing Buckets Rotor Swing rotor 4000 4×2×50ml 3200
4000 4×2×100ml 3020
4000 4×4×15ml 3200
4000 4×6×15ml 3200
4000 4×8×15ml 3200
4000 4×12×5ml vacuum tube 2480
4000 4×12×7ml vacuum tube 2760
4000 4×12×10ml vacuum tube 2790
4000 4×8×10/7/5ml vacuum tube 2790
4000 4×6×10/7/5ml vacuum tube 2790
4000 4×4×10/7/5ml vacuum tube 2790

5A-8

6x15mL Angle Rotor

Fixed Rotor 5000 6×15ml 2540

5A-9

12x15ml-Angle rotor

Fixed Rotor 5000 12×15ml 3080

5A-10

24x15ml-Angle rotor

Fixed Rotor 5000 24×15ml 3500

5A-11

30x15ml-Angle rotor

Fixed Rotor 5000 30×15ml 3830

5A-12

4x50ml-Angle rotor

Fixed Rotor 5000 4×50ml 2520

5A-13

6x50ml- Angle rotor

Fixed Rotor 5000 6×50ml 2850

5A-14

12x50ml-Angle rotor

Fixed Rotor 5000 12×50ml 3860

5A-15

24x50ml-Angle-rotor

Fixed Rotor 4000 24×50ml 2970

5A-16

4×100ml-Angle Rotor

Fixed Rotor 5000 4×100ml 2630

5A-17

6x100ml-Angle rotor

Fixed Rotor 5000 6×100ml 3130

5A-18

12x100ml-Angle-rotor

Fixed Rotor 4000 12×100ml 2970
