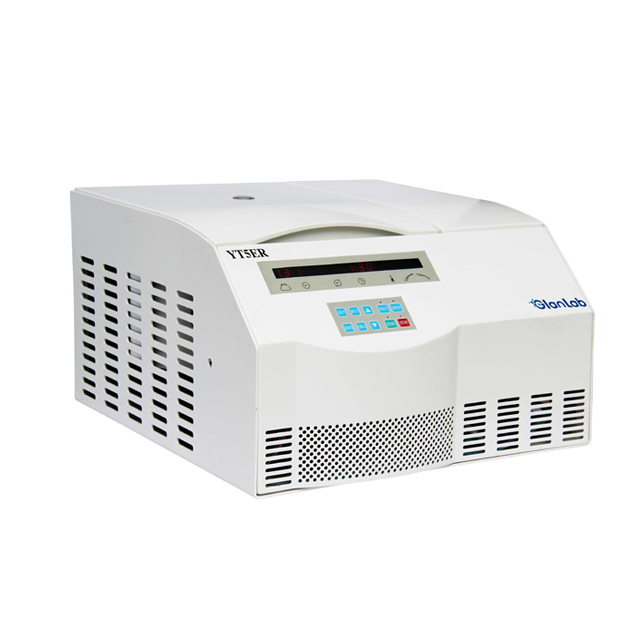

YT5ER CE Approved 5000rpm PRP Kit Multi-tube Centrifuge for Biochemistry Research

YT5E series centrifuge is our classical and popular low speed centrifuge. They are usually 5000rpm and have the different max. volume according to the customer requirements. They are universal and matching various kinds of rotors such as swing/angle/microplate, widely used in laboratory, blood bank and hospital.

Model:
YT5ER
Capacity*:
5mL 7mL 10mL 15mL 50mL 100mL 180mL
Max. Speed:
5000rpm
Max. RCF:
4420×g
Support Refrigeration:
No
Max.Capacity:
4x180ml

Availability:

Quantity:



Inquire Add to Basket

Product Description

YT5ER 5000rpm(4420×g), 4*180ml, Pre-cooling Design, Bench Top Centrifuge, Support Swing/Microplate/Fixed Rotor

widely used in the field of biochemistry,biological products, pharmaceutical factory and laboratory.

YT5ER Features:

1. Microprocessor control, digital display, touch panel, parameters in running can be edited and change to display other running parameter and RCF.

2.Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running.

3. Automatic lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.

4. Adapters are available by experiment requirements.

5. 3 tiers protection steel cover, safe and reliable.

6. TUV CE EMC certificate.

YT5ER Technical Parameter -

Max. Speed	5000rpm
Max. RCF	4420×g
Max. Capacity	4×180ml
Time Range	0~9h59min
RPM/RCF Convert	Yes
Noise (dB)	≤ 60
Temperature	-20℃-40℃
Acc/Dec	10 Kinds
Speed Accuracy	±20r/min
Temperature Accuracy	±1℃
Voltage(V/Hz)	AC 220V/110V 50HZ/60HZ
Size (W x D x Hmm)	570×600×340mm
Net Weight(Kg)	76KG
Certificates	CE,ISO & Calibration report are available

YT5E Technical Parameter

Max. Speed	5000rpm
Max. RCF	4420×g
Max. Capacity	4×180ml
Time Range	0~99min
RPM/RCF Convert	Yes
Noise (dB)	≤ 58
Temperature	Normal
Acc/Dec	10 Kinds
Speed Accuracy	±20r/min
Temperature Accuracy	/
Voltage(V/Hz)	AC 220V/110V 50HZ/60HZ
Size (W x D x Hmm)	540×370×280mm
Net Weight(Kg)	28KG
Certificates	CE,ISO & Calibration report are available

Matched Rotors for YT5E/YT5ER

Rotor No.	Rotor Type	Max speed (rpm)	Max volume (ml)	RCF
5E-1	Swing Rotor	4000	4×180ml	2580
5E-2	Microplate rotor	4000	2×3×96 well	2020
5E-4	Swing Rotor	5000	4×1×50ml	4420
5E-5	Swing Rotor	5000	4×1×100ml	4420
5E-6	Swing Rotor	4000	4×2×50ml	2820
5E	Swing Rotor	4000	4×4×15ml	2820
5E-8	Swing Rotor	4000	4×6×10/7ml vacuum tube	2580
5E-9	Swing Rotor	4000	4×6×5ml vacuum tube adapter	2170
5E-10	Swing Rotor	4000	4×4/10/7ml	2580
5E-11	Swing Rotor	4000	4×4×5ml vacuum tube adapter	2170
5E-12	Fixed Rotor	5000	6×15ml	2540
5E-13	Fixed Rotor	5000	12×15ml	3080
5E-14	Fixed Rotor	5000	24×15ml	3500
5E-15	Fixed Rotor	5000	30×15ml	3830
5E-16	Fixed Rotor	5000	4×50ml	2520
5E-17	Fixed Rotor	5000	6×50ml	2850
5E-18	Fixed Rotor	5000	12×50ml	3860
5E-19	Fixed Rotor	5000	4×100ml	2630
5E-20	Fixed Rotor	5000	6×100ml	3130
