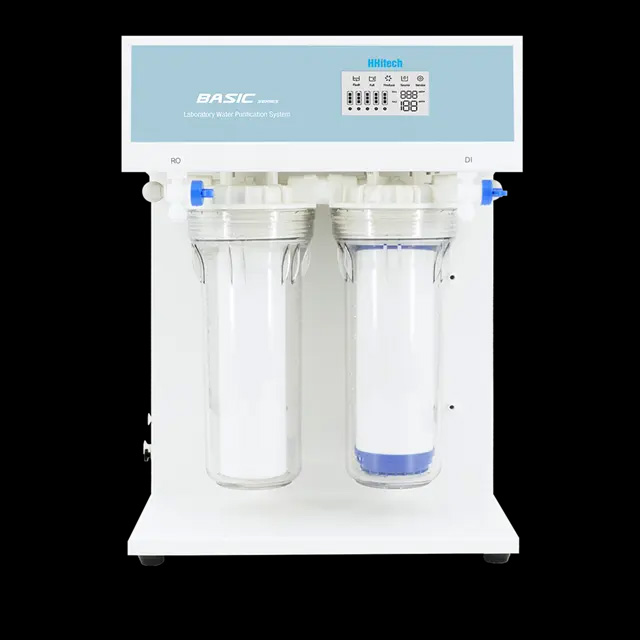

Basic-Q Deionized Water Pure System GlabLab

With LED controlling system, single stage RO system, 1 pump, and portable TDS/conductivity test pen, Basic-Q series deionized water system is basic choice of deionized water for general grade experiments.
With tap water inlet, its output ranges from 15 to 45 liters/hour. It can produce single stage RO water and deionized water. The single stage RO water´s ion rejection rate is more than 97%, and the deionized water´s resistivity is more than 13MΩ.cm, near to17.5MΩ.cm. It completely meets the requirements of general chemical or biological experiments for pure water.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Resistivity of deionized water: 13-17.5MΩ.cm
LED controlling system: this system can display system running status (such as flushing, producing water, full tank, water storage, leakage and service), which is convenient for your use.
TDS/conductivity test pen: it can test feed water, RO water and deionized water in an easy way; it is also cost-effective.
Single stage RO and 1 pump system: this kind of system is easy to maintain.
Independent cartridge design and easy to replace: independent design of the cartidges makes it easier to replace it later.
High-strength metal shell and simple appearance: this water system is made of high-strength mental with powder painting technics, making the equipment beautiful in appearance and meets GLP standards.
Producing single stage RO water and deionized water: you can get RO water and deionized water in a device, which can save your cost and improve efficiency.

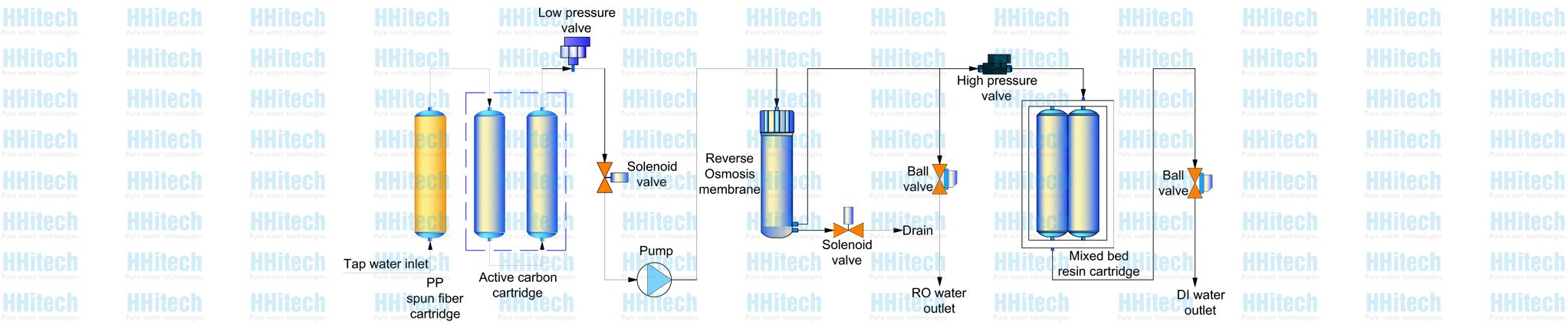

Flow Schematic

Basic-Q

Specifications

Model	Basic-Q15	Basic-Q30	Basic-Q45
	Basic-Q15-IT	Basic-Q30-IT	-
Output(25°C)*	15 liters/hour	30 liters/hour	45 liters/hour
Flow rate	Up to 2 liters/minute(with pressure tank)
Pure water outlet	2: reverse osmosis water, deionized water
Deionized water quality
Resistivity	13-17.5MΩ.cm
Bacteria	<0.01cfu/ml(with optional 0.2µm PES terminal filter)
Particle(>0.2µm)	<0.01cfu/ml(with optional 0.2µm PES terminal filter)
RO water quality
Ion rejection rate	97%-99% (new RO membrane)
Organic rejection rate	>99%, when MW>200 Dalton
Particles and bacteria rejection rate	>99%
Feed water requirements	Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm²
Dimension and weight	Q15,Q30 series: Length×Width×Height: 410×320×420mm/ Weight: about 15Kg Q15-IT,Q30-IT,Q45 series: Length×Width×Height: 410×400×420mm/ Weight: about 20Kg
Electrical requirements	AC110-240V, 50/60Hz
Power	Q15,Q30 series: 72W, Q45 series: 120W
Standard configuration	Main body (Including 1 set of cartridge) +built-in 12 liters pressure tank

Cartridges

Item no.	Commodity	Approximate replacement term /set
PC-10PP	10" spun fiber cartridge	About 2-6 months
PC-10AC-G	10"granular active carbon cartridge	About 6 months
PC-10AC-B	10" active carbon block cartridge	About 6 months
RO-100GPD	100 GPD reverse osmosis membrane	About 12-24 months
RO-200GPD	200 GPD reverse osmosis membrane	About 12-24 months
RO-300GPD	300 GPD reverse osmosis membrane	About 12-24 months
PTC-MBR-DW	Mixed bed resin cartridge	About 1000 liters pure water/set
PTC-MBR-7.7L	7.7l mixed bed resin cartridge	About 16000 liters pure water
