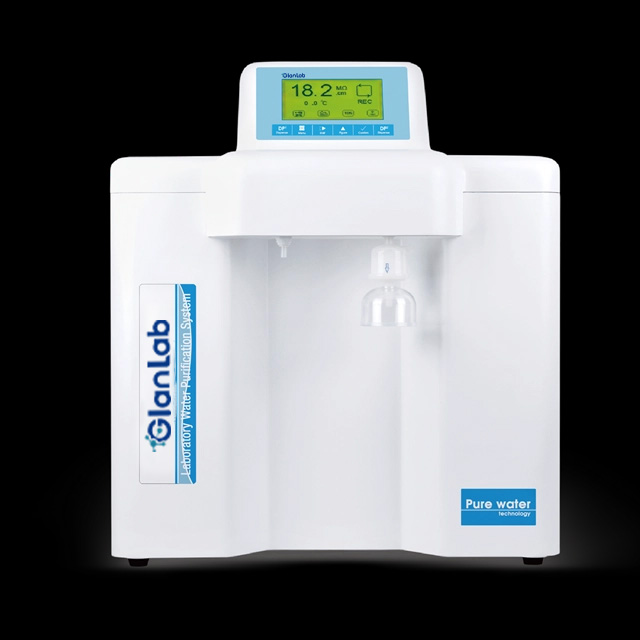

Master-Q Deionized Water System GlabLab

With LCD controlling system, 3 way water quality sensors, timing and quality dispensing, single stage RO system and 1 pump, Master-Q deionized water system is sub-superior choice of deionized water for general grade experiments.
With tap water inlet, its output ranges from 15 to 30 liters/hour. It can produce single stage RO water and deionized water. The single stage RO water´s ion rejection rate is more than 97%, and the deionized water´s resistivity is more than 16MΩ.cm, near to18.2MΩ.cm. It completely meets the requirements of general chemical or biological experiments for pure water.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Resistivity of deionized water: 16-18.2MΩ.cm
Flow rate: up to 2 liters/minute (with pressure tank), which can satisfy your basic experimental water consumption.
LCD controlling system and real-time feedback: the LCD controlling system serves as the user interface, providing real-time feedback on system performance, water quality, and operational status.
3-Way water quality sensors, multi-point monitoring: these sensors in the deionized water system monitor water quality at different points in the water treatment process to ensure the water produced meets the required purity standards.
Timing and quality dispensing: this ensure that the water is dispensed at right time and quality and can regulate flow.
Producing single stage RO water and deionized water: you can get RO water and deionized water in a device, which can save your cost and improve efficiency.

Flow Schematic

Master-Q deionized water system

Specification

Model	Master-Q15	Master-Q15UT	Master-Q30	Master-Q30UT
Output(25°C)*	15 liters/hour		30 liters/hour
Flow rate	Up to 2 liters/minute(with pressure tank)
Pure water outlet	2: reverse osmosis water, deionized water
Deionized water quality
Resistivity	16-18.2MΩ.cm
Bacteria	N/A	<0.01cfu/ml	N/A	<0.01cfu/ml
Particle(>0.1μm)	N/A	<1/ml	N/A	<1/ml
RO water quality
Ion rejection rate	97%-99% (new RO membrane)
Organic rejection rate	>99%, when MW>200 Dalton
Particles and bacteria rejection rate	>99%
Feed water requirements	Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm²
Dimension and weight	Length×Width×Height:500×360×540mm / Weight: about 20Kg
Electrical requirements	AC100-240V, 50/60Hz
Power	120W
Standard configuration	Main body (Including 1 set of cartridge)+15 liters pressure tank

Cartridges

Item no.	Commodity	Approximate replacement term /set
PC-M-PP	5µm spun fiber cartridge	2-6 months
PC-M-KDF	KDF+ granular active carbon mixed cartridge	12 months
PC-M-AC-G	Granular active carbon cartridge	6 months
RO-100GPD	100 GPD reverse osmosis membrane	12-24 months
RO-200GPD	200 GPD reverse osmosis membrane	12-24 months
PTC-AC-HZB1	Reducing TOC cartridge	9000 liters pure water
PTC-MBR-M	Mixed bed resin cartridge	1000 liters pure water
PTC-MBR-M4	4-in-I mixed bed resin cartridge module	4000 liters pure water
PTC-UPPR-M	Ultrapure polishing resin cartridge	1000 liters pure water
PTC-UPPR-M4	4-in-1 ultrapure polishing resin cartridge	4000 liters pure water
TF-(0.45+0.1)µm-S	(0.45+0.1)µm terminal filter	-
UF-5000D	MWCO5000D UF cartridge	-
LAMP-(185nm&254nm)-10W-M	Double wavelength(185&254)nm uv lamp	9000 hours
LAMP-254-10W-M	254 nm wavelength uv lamp	9000 hours
