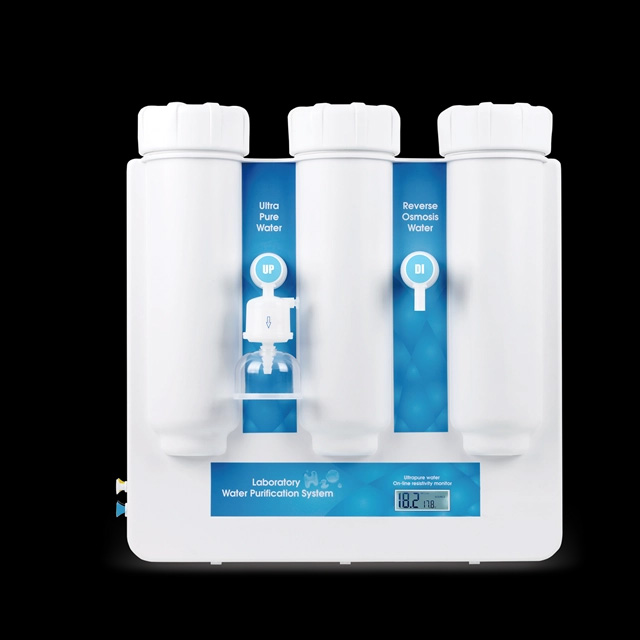

Smart-D Ultrapure Water System GlabLab

With injection molding process case, 1 pump, portable TDS test pen and on-line resistivity monitor, Smart-D series ultrapure water system is sub-economic choice of ultrapure water for high grade experiments.
With pure water or distilled water inlet, its output is up to 2 liters/minute. It can produce deionized water and ultrapure water. The deionized water’s resistivity is above 5MΩ.cm, and the ultrapure water’s resistivity absolutely reaches to 18.2MΩ.cm.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Resistivity of ultrapure water: reach to 18.2MΩ.cm.
Double wavelength (185&254nm) ultraviolet lamp module: this module can inhibit bacterial growth and decrease total organic carbon (TOC) levels.
2 kinds of monitoring system: online resistivity monitor & portable TDS/conductivity test pen.
LCD controlling system and real-time feedback: the LCD controlling system serves as the user interface, providing real-time feedback on system performance, water quality, and operational status.
Timing and quality dispensing: this ensure that the water is dispensed at right time and quality and can regulate flow.
Producing single stage deionized water and ultrapure water: you can get deionized water and ultrapure water in a device, which can save your cost and improve efficiency.
Easy-to-replaceing cartridge: independent cartidges design, with fast adapters, easy to repalce and running in low cost.
Whole plastic shell with high-strength: excellent ergonomic design,avoid rusting and keep clean,to meet GLP standard.

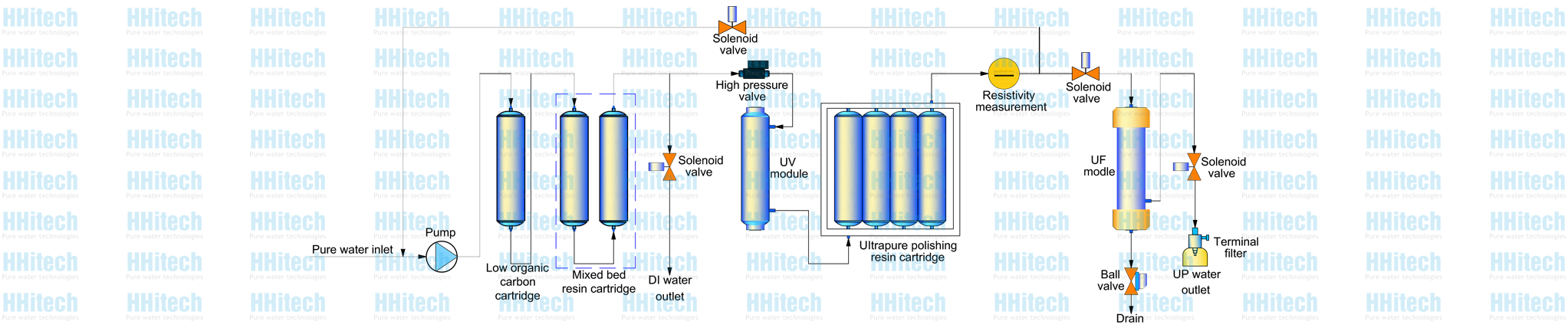

Flow Schematic

Smaart-D

Specifications

Model	Standard	Eliminating endotoxin	Low TOC	Synthesizing
Model	Smart-D	Smart-DUF	Smart-DUV	Smart-DUVF
Output	Up to 2 liters/minute (less output with UF cartridge)
Pure water outlet	2: deionized water, ultrapure water
Ultrapure water quality
Resistivity(25°C)	18.2MΩ.cm
TOC*	<10ppb	<10ppb	<3ppb	<3ppb
Bacteria	<0.01cfu/ml
Particle(>0.1µm)	<1/ml
Endotoxin	N/A	<0.001Eu/ml	N/A	<0.001Eu/ml
RNases	N/A	<1pg/ml	N/A	<1pg/ml
DNases	N/A	<5pg/ml	N/A	<5pg/ml
Deionized water quality
Resistivity(25°C)	>5MΩ.cm
Feed water requirements	RO water, distilled water, deionized water, 5-45°C,1atm*
Dimension and weight	LengthµWidthµHeight:410µ220µ420mm / Weight: about 16Kg
Electrical requirements	AC100-240V, 50/60Hz
Power	72W
Standard configuration	Main body (Including 1 set of cartridge)+ TDS/conductivity test pen

Cartridges

Item no.	Commodity	Approximate replacement term /set
PC-M-PP	5µm spun fiber cartridge	2-6 months
PC-PP-ZK	Special spun fiber cartridge	2-6 months
PC-AC-B-ZK	Special active carbon block cartridge	6 months
RO-100GPD	100 GPD reverse osmosis membrane	12-24 months
RO-200GPD	200 GPD reverse osmosis membrane	12-24 months
PTC-MBR-K	Mixed bed resin cartridge	1000 liters pure water
PTC-UPPR-K	Ultrapure polishing resin cartridge	1000 liters pure water
TF-(0.45+0.1)µm-S	(0.45+0.1)µm terminal filter	-
UF-5000D	MWCO5000D UF cartridge	-
LAMP-(185nm&254nm)-10W-K	Double wavelength(185&254)nm uv lamp	9000 hours
LAMP-254-10W-K	254 nm wavelength uv lamp	9000 hours
