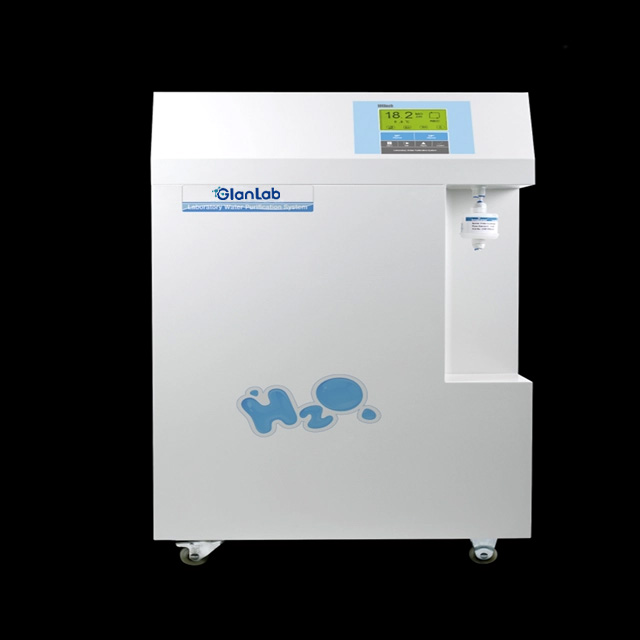

Medium-RRO Reverse Osmosis Water System GlanLab

Medium-RRO series is double-stage RO water system, with LCD controlling system, 3 way water quality sensor, cartridge replacing alarm, timing and quality dispensing, stainless steel shell, built-in 2 set tanks (buffer tank and pressure tank). Its output ranges from 30 to 90 liters/hour. And the 2nd stage RO water’s conductivity can stay 1-5µs/cm, suitable for glassware washing and general grade experiments.
The standard double-stage RO system is designed to enhance water quality while minimizing waste and operational costs. Compared with single stage RO system, the quality of RO water is better, and the running cost is lower for less consumables replacement. Moreover, compared with simple 2nd stage RO system (1 pump, 2 RO membrane, without buffer tank), its system design is more rational, and the RO quality is more stable.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Producing double-stage RO water: equipped with two reverse osmosis membrane, this water system can produce double-stage RO water with different conductivity (1st stage RO water: Feed water conductivity×5%*; 2nd stage RO water: 1-5µs/cm*)
Multiple alarm function: no feed water, full water, water quality's standard exceeding and cartidge replacing alarm.
Auto self-flushing of RO membrane: this kind of RO membrane has longer use life, which can can reduce maintenance costs.
High-capacity and easy-to-replacing cartridge: with fast inserted adapters, the cartridge is easy to replace and achieve running in the lowest cost.
Stainless steel shell: this water system is made of stainless steel with powder painting technics, achieving elegant appeaance and meeting GLP standard.
Floor type with wheels on the bottom design: this design makes it easy to move the water system.
Micro-computer control system with LCD display: LCD (resolution: 240×128， dimension: 106×57mm), intuitively display the system running state and various real-time parameters.
Comprehensive monitoring system: 3-way online water quality sensors detect the quality of feed water, RO water and ultrapure water.

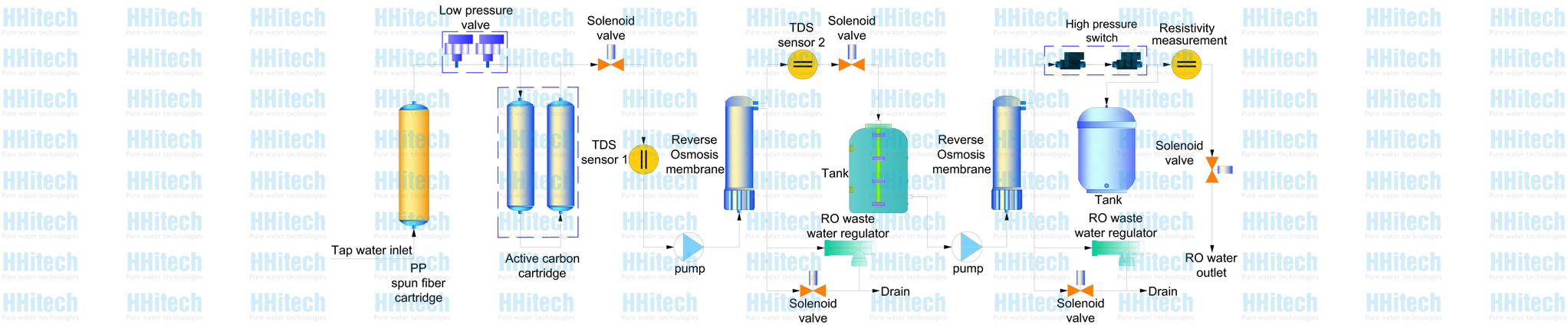

Flow Schematic

Medium-RRO

Specifications

Model	Medium-RRO30	Medium-RRO45	Medium-RRO60	Medium-RRO90
Output -1st stage RO water*	63 liters/hour	93 liters/hour	125 liters/hour	150 liters/hour
Output -2nd stage RO water*	30 liters/hour	45 liters/hour	60 liters/hour	90 liters/hour
Pure water outlet	2: 1st and 2nd stage reverse osmosis water,
RO water quality
Conductivity - 1st stage RO water	Feed water conductivity×5%*
Conductivity - 2nd stage RO water	1-5µs/cm*
Bacteria	<0.01cfu/ml(with optional 0.2µm PES terminal filter)
Particle(>0.2µm)	<1/ml(with optional 0.2µm PES terminal filter)
Feed water requirements	Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm²
Dimension and weight	Length×Width×Height:640×540×1110mm / Weight: about 70Kg
Electrical requirements	AC110-240V, 50/60Hz
Power	240W	240W	240W	360W
Standard configuration	Main body (Including 1 set of cartridge)+built-in 15 liters pressure tank and buffer tank

Cartridges

Item no.	Commodity	Approximate replacement term /set
PC-20PP	20" spun fiber cartridge	2-6 months
PC-20AC-G	20" granular active carbon cartridge	2-6 months
PC-20AC-B	20" active carbon block cartridge	2-6 months
RO-150GPD	150 GPD reverse osmosis membrane	12-24 months
RO-200GPD	200 GPD reverse osmosis membrane	12-24 months
RO-300GPD	300 GPD reverse osmosis membrane	12-24 months
RO-400GPD	400 GPD reverse osmosis membrane	12-24 months
RO-600GPD	600 GPD reverse osmosis membrane	12-24 months
PTC-AC-HZB1	Reducing TOC cartridge	9000 liters pure water
PTC-MBR-12L	12l mixed bed resin cartridge	20000 liters pure water
PTC-UPPR-12L	12l ultrapure polishing resin cartridge	20000 liters pure water
PTC-MBR-25L	25l mixed bed resin cartridge	40000 liters pure water
PTC-UPPR-25L	25l ultrapure polishing resin cartridge	40000 liters pure water
PTC-UPPR-M	Ultrapure polishing resin cartridge	1000 liters pure water/set
TF-0.2µm-B	0.2µm terminal filter	-
UF-5000D	MWCO5000D UF cartridge	-
LAMP-(185nm&254nm)-10W-M	Double wavelength(185&254)nm uv lamp	9000 hours
