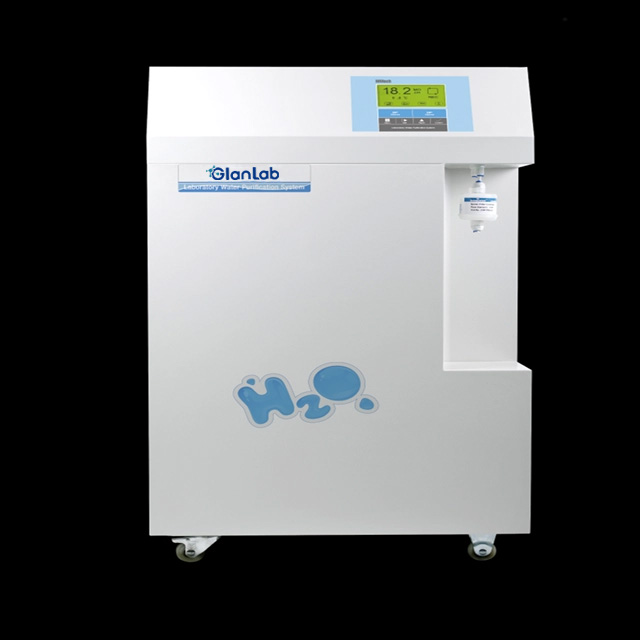

Medium-RS Ultrapure Water System GlanLab

Medium-RS series is double-stage RO & ultrapure water system, with LCD controlling system, 3 way water quality sensor, timing and quality dispensing, stainless steel shell, built-in 2 set tanks (buffer tank and pressure tank). Its output ranges from 30 to 90 liters/hour. The 2nd stage RO water’s conductivity can stay 1-5µs/cm, and the ultrapure water’s resistivity absolutely reaches to 18.2MΩ.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Conductivity of 2nd stage RO water: 1-5µs/cm.
Resistivity of ultrapure water: reach to 18.2MΩ.cm.
Producing double-stage RO water and ultrapure water: you can get RO water and deionized water in a device, which can save your cost and improve efficiency.
Multiple alarm function: no feed water, full water, water quality's standard exceeding and cartidge replacing alarm.
Auto self-flushing of RO membrane: this kind of RO membrane has longer use life, which can can reduce maintenance costs.
High-capacity and easy-to-replacing cartridge: with fast inserted adapters, the cartridge is easy to replace and achieve running in the lowest cost.
Stainless steel shell: this water system is made of stainless steel with powder painting technics, achieving elegant appeaance and meeting GLP standard.
Floor type with wheels on the bottom design: this design makes it easy to move the water system.
Micro-computer control system with LCD display: LCD (resolution: 240×128， dimension: 106×57mm), intuitively display the system running state and various real-time parameters.
Comprehensive monitoring system: 3-way online water quality sensors detect the quality of feed water, RO water and ultrapure water.

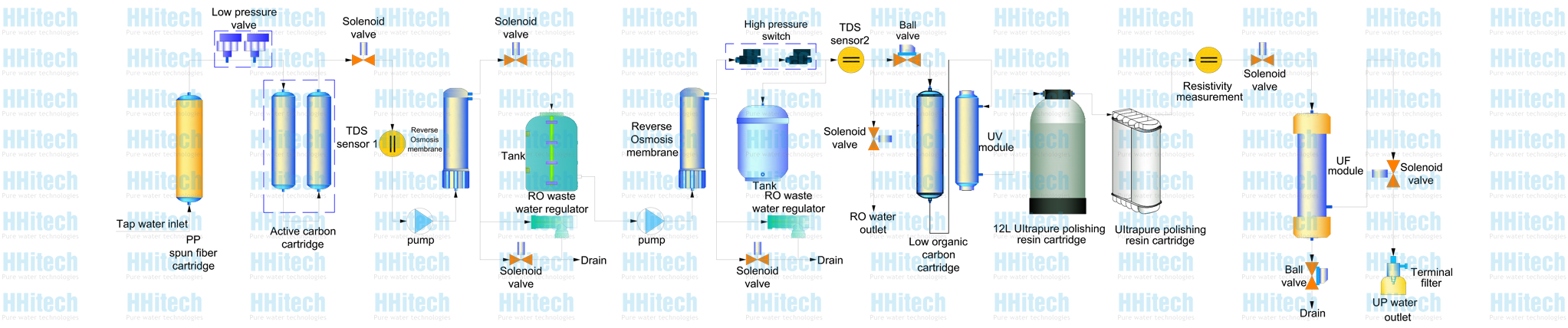

Flow Schematic

Medium-RS

Specifications

Model	Medium-RS30/45/60/90	Medium-RS30/45/60/90UF	Medium-RS30/45/60/90UV	Medium-RS30/45/60/90UVF
Output -1st stage RO water*	30 series: 63 liters/hour, 45 series: 93 liters/hour, 60 series: 125 liters/hour, 90 series: 150 liters/hour
Output -2nd stage RO water*	30 series: 30 liters/hour, 45 series: 45 liters/hour, 60 series: 60 liters/hour, 90 series: 90 liters/hour
Output -ultrapure water*	30 series:<30 liters/hour, 45 series:<45 liters/hour, 60 series:<60 liters/hour, 90 series: <90 liters/hour
Pure water outlet	3: 1st and 2nd stage reverse osmosis water, ultrapure water
Ultrapure water quality
Resistivity(25°C)	18.2MΩ.cm
TOC*	<10ppb	<10ppb	<3ppb	<3ppb
Bacteria	<0.01cfu/ml
Particle(>0.2µm)	<1/ml
Endotoxin	N/A	<0.001Eu/ml	N/A	<0.001Eu/ml
RNases	N/A	<1pg/ml	N/A	<1pg/ml
DNases	N/A	<5pg/ml	N/A	<5pg/ml
RO water quality
Conductivity - 1st stage RO water	Feed water conductivity×5%*
Conductivity - 2nd stage RO water	1-5µs/cm*
Feed water requirements	Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm²
Dimension and weight	Length×Width×Height:640×540×1110mm / Weight: about 80Kg
Electrical requirements	AC110-240V, 50/60Hz
Power	240W	240W	240W	360W
Standard configuration	Main body (Including 1 set of cartridge)+built-in 15 liters pressure tank and buffer tank

Cartridges

Item no.	Commodity	Approximate replacement term /set
PC-20PP	20" spun fiber cartridge	2-6 months
PC-20AC-G	20" granular active carbon cartridge	2-6 months
PC-20AC-B	20" active carbon block cartridge	2-6 months
RO-150GPD	150 GPD reverse osmosis membrane	12-24 months
RO-200GPD	200 GPD reverse osmosis membrane	12-24 months
RO-300GPD	300 GPD reverse osmosis membrane	12-24 months
RO-400GPD	400 GPD reverse osmosis membrane	12-24 months
RO-600GPD	600 GPD reverse osmosis membrane	12-24 months
PTC-AC-HZB1	Reducing TOC cartridge	9000 liters pure water
PTC-MBR-12L	12l mixed bed resin cartridge	20000 liters pure water
PTC-UPPR-12L	12l ultrapure polishing resin cartridge	20000 liters pure water
PTC-MBR-25L	25l mixed bed resin cartridge	40000 liters pure water
PTC-UPPR-25L	25l ultrapure polishing resin cartridge	40000 liters pure water
PTC-UPPR-M	Ultrapure polishing resin cartridge	1000 liters pure water/set
TF-0.2µm-B	0.2µm terminal filter	-
UF-5000D	MWCO5000D UF cartridge	-
LAMP-(185nm&254nm)-10W-M	Double wavelength(185&254)nm uv lamp	9000 hours
