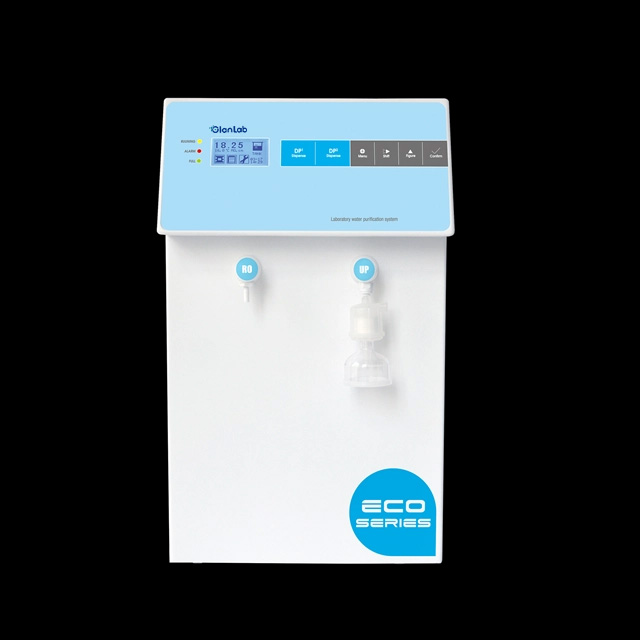

Eco-S Ultrapure Water System GlabLab

With LCD controlling system, 2 way water quality sensors, timing and quality dispensing, single stage RO system, 1 pump, and built-in 12 liters tank, Eco-S series ultrapure water system is economic choice of ultrapure water for high grade experiments.
With tap water inlet, its output ranges from 15 to 30 liters/hour. It can produce single stage RO water and ultrapure water. The single stage RO water’s ion rejection rate is more than 97%, and the ultrapure water’s resistivity absolutely reaches to 18.2MΩ.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Resistivity of ultrapure water: 18.2MΩ.cm.
LCD controlling system and real-time feedback: the LCD controlling system serves as the user interface, providing real-time feedback on system performance, water quality, and operational status.
Timing and quality dispensing: this ensure that the water is dispensed at right time and quality and can regulate flow.
Producing single stage RO water and ultrapure water: you can get RO water and ultrapure water in a device, which can save your cost and improve efficiency.

Flow Schematic

Eco-S

Specifications

Model	Eco-Q15	Eco-Q15UT	Eco-Q30	Eco-Q30UT
Output(25°C)*	15 liters/hour		30 liters/hour
Flow rate	Up to 2 liters/minute(with pressure tank)
Pure water outlet	2: reverse osmosis water, deionized water
Deionized water quality
Resistivity	16-18.2MΩ.cm
Bacteria	N/A	<0.01cfu/ml	N/A	<0.01cfu/ml
Particle(>0.1µm)	N/A	<1/ml	N/A	<1/ml
RO water quality
Ion rejection rate	97%-99% (new RO membrane)
Organic rejection rate	>99%, when MW>200 Dalton
Particles and bacteria rejection rate	>99%
Feed water requirements	Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm²
Dimension and weight	Length×Width×Height:340×500×560mm / Weight: about 18Kg
Electrical requirements	AC100-240V, 50/60Hz
Power	72W
Standard configuration	Main body (Including 1 set of cartridge)+built-in 12 liters pressure tank

Cartridges

Item no.	Commodity	Approximate replacement term /set
LAMP-(185nm&254nm)-10W-M	Double wavelength(185&254)nm uv lamp	9000 hours
LAMP-254-10W-M	254 nm wavelength uv lamp	9000 hours
PC-M-PP	5µm spun fiber cartridge	2-6 months
PC-M-KDF	KDF+ granular active carbon mixed cartridge	12 months
PC-M-AC-G	Granular active carbon cartridge	6 months
RO-100GPD	100 GPD reverse osmosis membrane	12-24 months
RO-200GPD	200 GPD reverse osmosis membrane	12-24 months
PTC-AC-HZB1	Reducing TOC cartridge	9000 liters pure water
PTC-MBR-M	Mixed bed resin cartridge	1000 liters pure water
PTC-MBR-M4	4-in-1 mixed bed resin cartridge module	4000 liters pure water
PTC-UPPR-M	Ultrapure polishing resin cartridge	1000 liters pure water
PTC-UPPR-M4	4-in-1 ultrapure polishing resin cartridge	4000 liters pure water
TF-(0.45+0.1)µm-S	(0.45+0.1)µm terminal filter	-
UF-5000D	MWCO5000D UF cartridge	-
