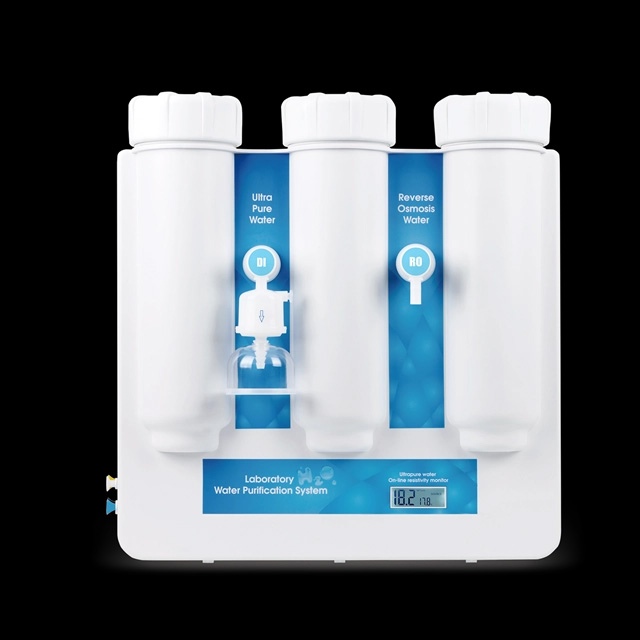

Smart-Q Deionized Water System GlabLab

With injection molding process case, single stage RO system, 1 pump, portable TDS test pen and on-line resistivity monitor, Smart-Q series deionized water system is sub-economic choice of deionized water for general grade experiments.
With tap water inlet, its output ranges from 15 to 30 liters/hour. It can produce single stage RO water and deionized water. The single stage RO water’s ion rejection rate is more than 97%, and the deionized water’s resistivity is more than 15MΩ.cm, near to18.2MΩ.cm. It completely meets the requirements of general chemical or biological experiments for pure water.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Portale TDS test pen, ease of use and cost-effective: portable TDS test pen is lightweight and user-friendly, allowing for quick testing in various locations.
Online resistivity monitor: it can continuously measures the electrical resistivity of water, providing real-time dataand ensuring ongoing assessment of water quality and system performance.
LCD controlling system and real-time feedback: the LCD controlling system serves as the user interface, providing real-time feedback on system performance, water quality, and operational status.
Timing and quality dispensing: this ensure that the water is dispensed at right time and quality and can regulate flow.
Easy-to-replaceing cartridge: independent cartidges design, with fast adapters, easy to repalce and running in low cost.
Whole plastic shell with high-strength: excellent ergonomic design,avoid rusting and keep clean,to meet GLP standard.
Producing single stage RO water and deionized water: you can get RO water and deionized water in a device, which can save your cost and improve efficiency.

Flow Schematic

Smart-Q

Specificatios

Model	Smart-Q15	Smart-Q15UT	Smart-Q30	Smart-Q30UT
Output(25°C)*	15 liters/hour		30 liters/hour
Flow rate	Up to 2 liters/minute(with pressure tank)
Pure water outlet	2: reverse osmosis water, deionized water
Deionized water quality
Resistivity	15-18.2MΩ.cm
Bacteria	N/A	<0.01cfu/ml	N/A	<0.01cfu/ml
Particle(>0.1µm)	N/A	<1/ml	N/A	<1/ml
RO water quality
Ion rejection rate	97%-99% (new RO membrane)
Organic rejection rate	>99%, when MW>200 Dalton
Particles and bacteria rejection rate	>99%
Feed water requirements	Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm²
Dimension and weight	Length×Width×Height:410×220×420mm / Weight: about 18Kg
Electrical requirements	AC100-240V, 50/60Hz
Power	72W
Standard configuration	Main body (Including 1 set of cartridge)+15 liters pressure tank+ TDS/conductivity test pen

Cartridges

Item no.	Commodity	Approximate replacement term /set
PC-M-PP	5µm spun fiber cartridge	2-6 months
PC-PP-ZK	Special spun fiber cartridge	2-6 months
PC-AC-B-ZK	Special active carbon block cartridge	6 months
RO-100GPD	100 GPD reverse osmosis membrane	12-24 months
RO-200GPD	200 GPD reverse osmosis membrane	12-24 months
PTC-MBR-K	Mixed bed resin cartridge	1000 liters pure water
PTC-UPPR-K	Ultrapure polishing resin cartridge	1000 liters pure water
TF-(0.45+0.1)µm-S	(0.45+0.1)µm terminal filter	-
UF-5000D	MWCO5000D UF cartridge	-
LAMP-(185nm&254nm)-10W-K	Double wavelength(185&254)nm uv lamp	9000 hours
LAMP-254-10W-K	254 nm wavelength uv lamp	9000 hours
