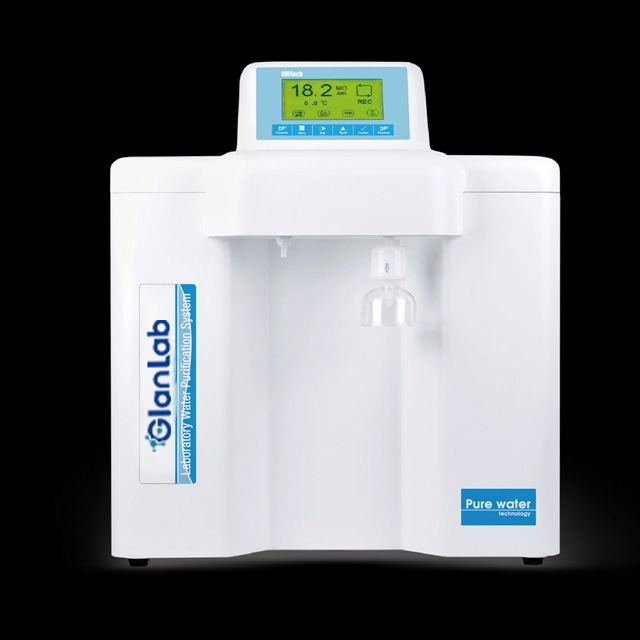

Edi-Q Deionized Water System GlabLab

With LCD controlling system, 3 way water quality sensor, timing and quality dispensing, single stage RO system, 1 pump and Ionpure EDI module, Edi-Q series deionized water system is superior choice of deionized water for general grade experiments.
With tap water inlet,the largest capacity is 240 liters per day. It can produce single stage RO water and deionized water. The single stage RO water´s ion rejection rate is more than 97%,and deionized water is stable grade II pure water with resistivity>5MΩ.cm(25°C), TOC<30ppb,and the lowest running cost. It completely meets the requirements of general chemical or biological experiments for pure water.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Resistivity of deionized water: >5MΩ.cm
Equipped with EDI module: EDI systems provide a modern, efficient, and environmentally friendly solution for producing high-quality deionized water compared to traditional method.
LCD controlling system and real-time feedback: the LCD controlling system serves as the user interface, providing real-time feedback on system performance, water quality, and operational status.
3-Way water quality sensors, multi-point monitoring: these sensors in the deionized water system monitor water quality at different points in the water treatment process to ensure the water produced meets the required purity standards.
Timing and quality dispensing: this ensure that the water is dispensed at right time and quality and can regulate flow.
Producing single stage RO water and deionized water: you can get RO water and deionized water in a device, which can save your cost and improve efficiency.

Flow Schematic

EDI-Q deionized water system

Specifications

Model	Edi-Q10	Edi-Q10UT
Output(25°C)*	10 liters/hour
Pure water outlet	2: reverse osmosis water, deionized water
Edi water quality
Resistivity	>5MΩ.cm
TOC*	<30ppb
Silicone rejection rate	>99.9%
Bacteria	N/A	<0.01cfu/ml
Particle(>0.1µm)	N/A	<1/ml
RO water quality
Ion rejection rate	97%-99% (new RO membrane)
Organic rejection rate	>99%,when MW>200 Dalton
Particles and bacteria rejection rate	>99%
Feed water requirements	Tap water,temperature:5-45°C,pressure:1.0-4.0Kgf/cm²
Dimension and weight	Length×Width×Height:500×360×540mm / Weight: about 20Kg
Electrical requirements	AC100-240V, 50/60Hz
Power	120W
Standard configuration	Main body (Including 1 set of cartridge)+20 liters PE tank

Cartridges

Item no.	Commodity	Approximate replacement term /set
PC-M-PP	5µm spun fiber cartridge	2-6 months
PC-M-KDF	KDF+ granular active carbon mixed cartridge	12 months
PC-M-AC-G	Granular active carbon cartridge	6 months
RO-150GPD	150 GPD reverse osmosis membrane	12-24 months
PTC-SF	Water softener cartridge	-
PTC-EDI10-IP	EDI module	36 months
PTC-AC-HZB1	Reducing TOC cartridge	9000 liters pure water
PTC-UPPR-M	Ultrapure polishing resin cartridge	1000 liters pure water
PTC-UPPR-M4	4-in-1 ultrapure polishing resin cartridge	4000 liters pure water
TF-(0.45+0.1)µm-S	(0.45+0.1)µm terminal filter	-
UF-5000D	MWCO5000D UF cartridge	-
LAMP-(185nm&254nm)-10W-M	Double wavelength(185&254)nm uv lamp	9000 hours
LAMP-254-10W-M	254 nm wavelength uv lamp	9000 hours
