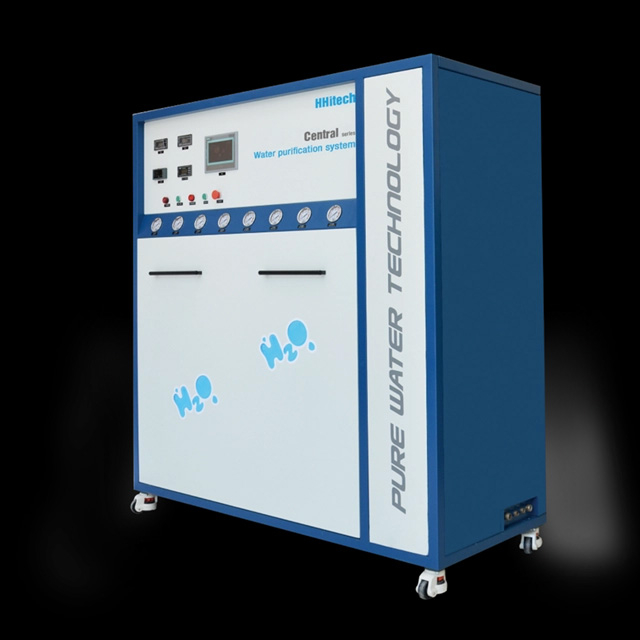

Central R2E 250/500 Water Purification System GlanLab

The central series water purification system seamlessly integrates a pretreatment filter (comprising quartz sand and activated carbon), a double-stage reverse osmosis membrane, an EDI module, a 150-liter buffer tank for the first-stage RO water, and a 250-liter stainless steel tank (SUS304) for EDI water. It also includes a pure water supply and tube circulation system, all within a single unit. This system effectively handles water from source to pure supply, offering an output capacity of 250 to 500 liters per hour. It consistently delivers pure water with a resistivity exceeding 15 MΩ·cm while maintaining low operating costs. These features make it suitable for both mass production and central water supply in laboratory settings.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Resistivity of deionized water: >15MΩ.cm
Output capacity: 250-500 liters/h
2 pump and two stage RO system: utilizing two stages allows for higher purification rates, resulting in better quality water by removing more contaminants.
Integration design: this system combines various components into one compact unit, reducing floor space and simplifying the design process for efficient water purification.
Advanced PLC control system: the PLC control system monitors and manages operations, providing alerts for issues like lack of feed water, full tanks, and abnormal pressure levels.
User-Friendly touch screen panel: the touch screen displays system status and allows control of pumps and valves, with optional automatic data storage through RS232/USB connectivity.
Reliable safety features: water and electricity are separated, using low-voltage equipment. Multiple alarms ensure safety for conditions like no feed water and equipment overloads.
Good extension capability: deionized water produced can be used as feed for Smart-D, Master-D, and Dura series, enhancing water quality to meet top ASTM and USP standards.

Flow Schematic

Central

Specifications

	Central R2E 250	Central R2E 500
Output(25°C)-Edi water*	250 liters/hour	500 liters/hour
Deionized water quality
Resistivity	>15MΩ.cm
RO water quality
Conductivity - 2nd stage RO water	1-5µs/cm*
Feed water requirements	Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm²
Flow process	Quartz sand+ activated carbon+ micro filter+ 1st stage RO+ 2nd stage RO+EDI module
Dimension and weight	Length×Width×Height: 170×78×180cm/ Weight: about 300Kg
Electrical requirements	AC380V, 50/60Hz
Power	6KW	7KW
Standard configuration	Main body (Including 1 set of cartridge)
