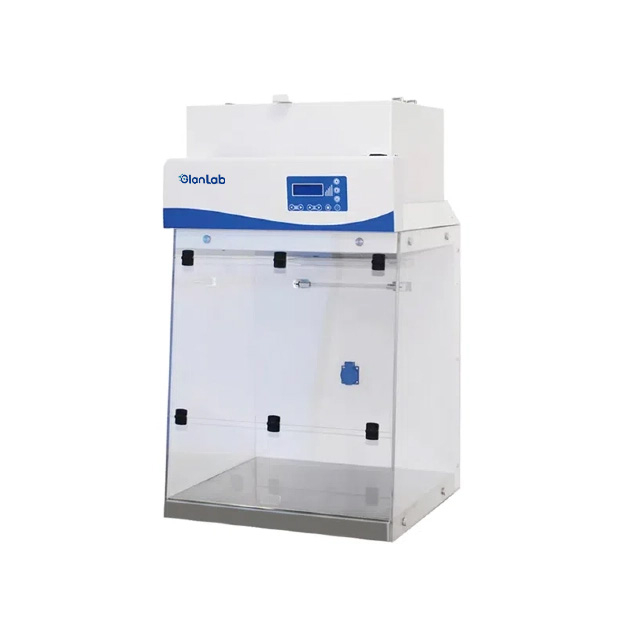

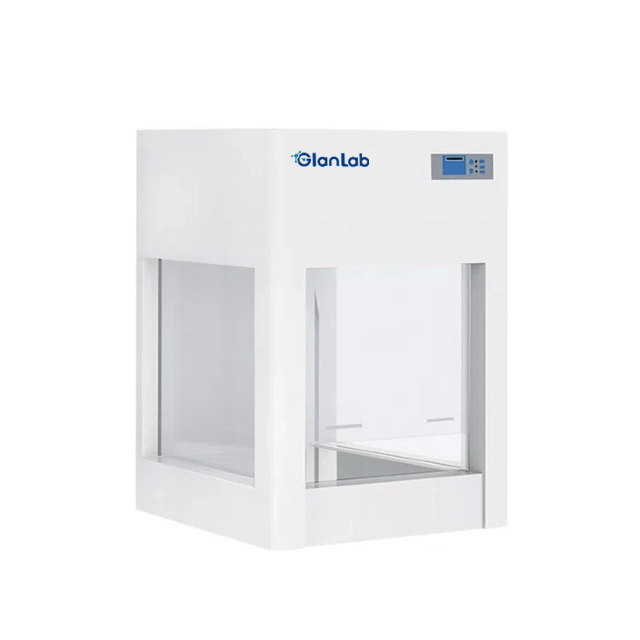

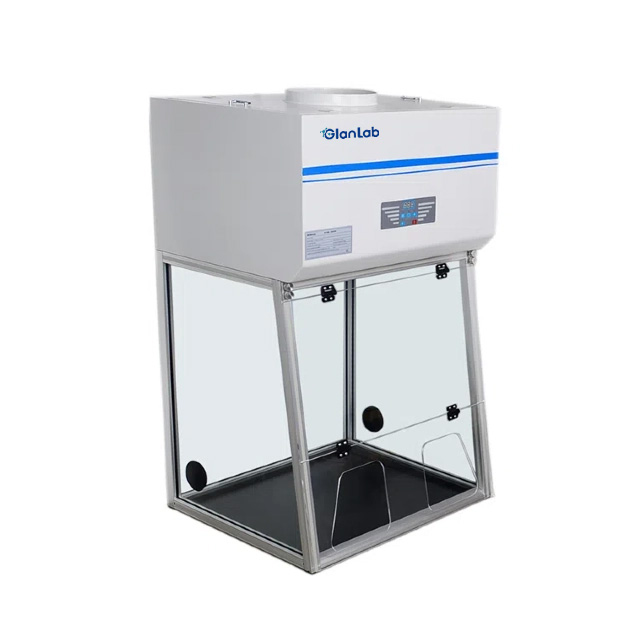

Compounding Hood BBS-V500,V600,V700 BYKG-V Series GlanLab

Product Application

• Pharmaceutical compounding and preparation

• Laboratory research and experiments requiring sterile environments

• Hospitals and medical facilities handling hazardous drugs or compounds

• Chemical handling and synthesis

• Environments where contamination control is critical for product integrity and operator safety




Product  Feature

• High-Quality Construction:

• Main body made from cold-rolled steel with an anti-bacteria powder coating for durability and hygiene.

• Work surface constructed from 304 stainless steel for corrosion resistance and ease of cleaning.

• Advanced Filtration System:

• Equipped with HEPA filters to ensure high-efficiency filtration, capturing 99.995% of particles ≥0.3μm.

• Some models (e.g., BBS-V500, BBS-V600, BBS-V700) also include an active carbon filter for enhanced air purification.

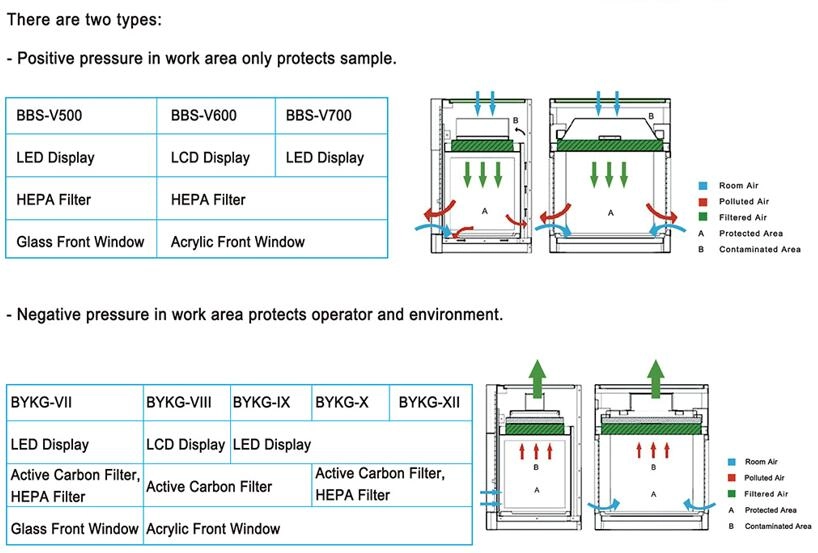

• Optimal Airflow Control:

• Airflow velocity is adjustable, ranging from 0.3–0.5 m/s in most models, with higher airflow velocity of ≥0.5 m/s available in the BBS-V600 and BBS-V700 models.

• Air is filtered and circulated to maintain a particle-free environment.

• User-Friendly Design:

• The front window is made from toughened glass (manual operation) or acrylic material, offering protection from UV radiation and improving visibility.

• The maximum opening of the front window varies by model, ranging from 300mm for BBS-V500 to 660mm for BBS-V700, allowing flexibility in compound handling.

• Integrated Lighting and UV Disinfection:

• The LED lamp provides bright, energy-efficient illumination for work tasks (varying from 4W to 12W depending on the model).

• Equipped with a UV lamp for sterilization purposes, emitting 253.7 nm UV radiation to ensure a sterile environment. (Optional UV lamp for BBS-V700).

• Noise Control:

• The cabinet operates with a low noise level of ≤60dB, ensuring minimal disturbance during use in quiet environments.

• Power and Efficiency:

• Models are powered by AC220V ±10%, 50/60Hz or 110V ±10%, 60Hz, with power consumption varying from 100W (BBS-V500) to 400W (BYKG-X).

• Optional Accessories:

• Some models come with a base stand, waterproof socket, and PVC exhaust duct (250mm diameter, 4 meters long) for easier installation and use.

• Compact and Efficient Design:

• Different model sizes, with external dimensions ranging from 550 x 460 x 700 mm (BBS-V500) to 1200 x 620 x 1150 mm (BYKG-XII).

• The gross weight of the units varies from 57 kg (BBS-V500) to 190 kg (BYKG-XII), ensuring stability while still being manageable for installation.

Parameter
