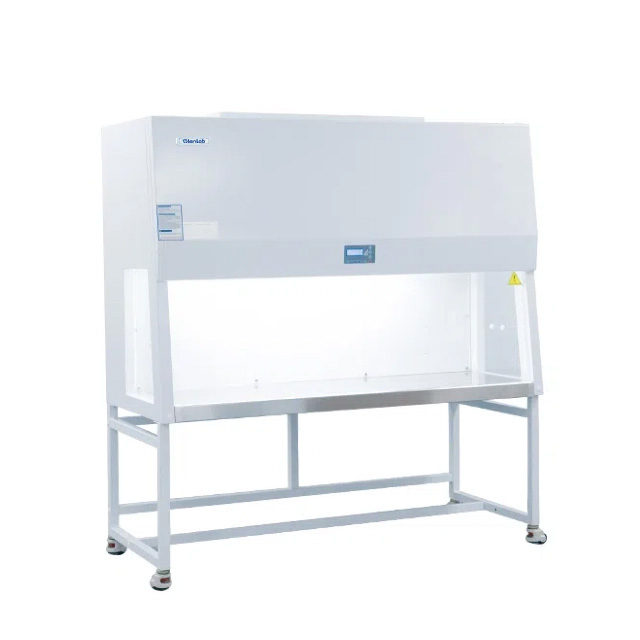

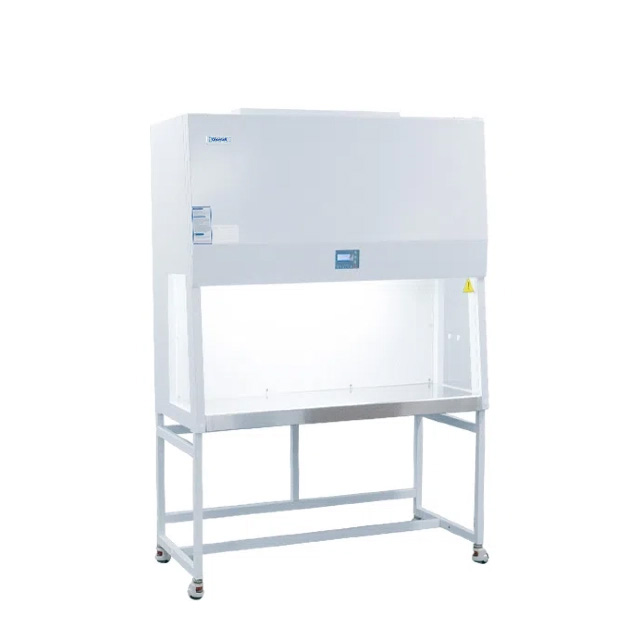

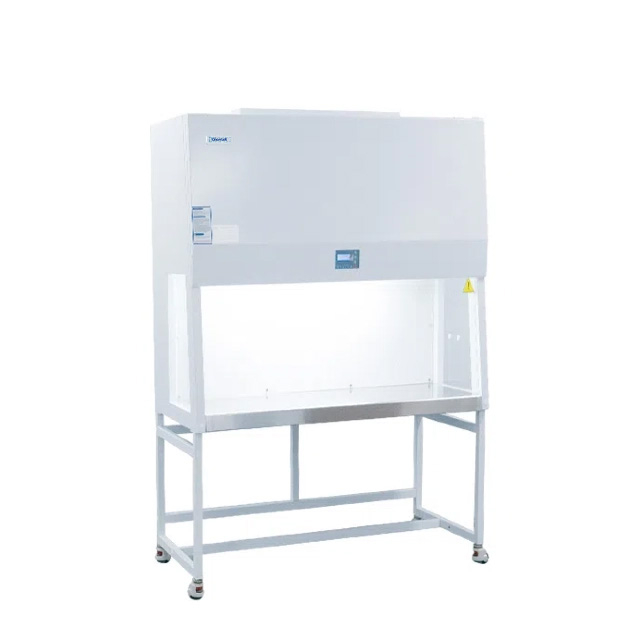

Horizontal Laminar Flow Cabinet BBS-H1300-I BBS-H1800-I GlanLab

The Horizontal Laminar Flow Cabinet is a specialized containment system designed to maintain a sterile and particle-free working environment, essential for sensitive laboratory processes. It ensures a continuous flow of HEPA-filtered air across the workspace, providing reliable protection for samples from contamination.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Product Application

Provides a sterile and controlled environment for biological research, medical testing, and pharmaceutical production.
Ideal for laboratories handling sensitive samples, cultures, or materials that require contamination-free conditions.
Commonly used in research facilities, hospitals, pharmaceutical laboratories, and cleanroom environments.

Product Feature

Airflow and Operation:

Horizontal laminar flow for consistent, contamination-free work surface.
Single-sided operation design for easy access and convenience.

Material and Build Quality:

Constructed from high-quality cold-rolled steel with a welding structure and electrostatic powder coating for enhanced durability.
Work zone made of SUS304 stainless steel, offering corrosion resistance and a sleek, clean appearance.
5mm thick tempered glass for front and side windows, ensuring safety while maintaining clarity.

Filtration System:

Equipped with a pre-filter to capture large particulate matter, prolonging the life of the HEPA filter.
HEPA Filter: 99.995% efficiency at 0.3μm, ensuring high-level air purity.

Mobility and Stability:

Footmaster casters for easy movement and secure fixation, enhancing portability and stability.

Display and Monitoring:

LCD screen displays real-time operating conditions, including air velocity, timer, UV lamp time, and HEPA filter usage.

Lighting and UV Disinfection:

Ultraviolet (UV) lamp for sterilization, with an appointment timing function for ease of use.
LED light for workspace illumination.
Waterproof sockets for added safety and functionality.

Perfect Alarm System:

Ultra-high filter pressure alarm to warn of pressure imbalances.
Filter failure replacement alarm to notify users when it’s time for a change.
Low wind speed alarm for potential airflow issues.

Interlocking Functions:

UV lamp and front window; UV lamp and fan; fluorescent lamp and fan all interlock for safety, ensuring that components operate only when safe.

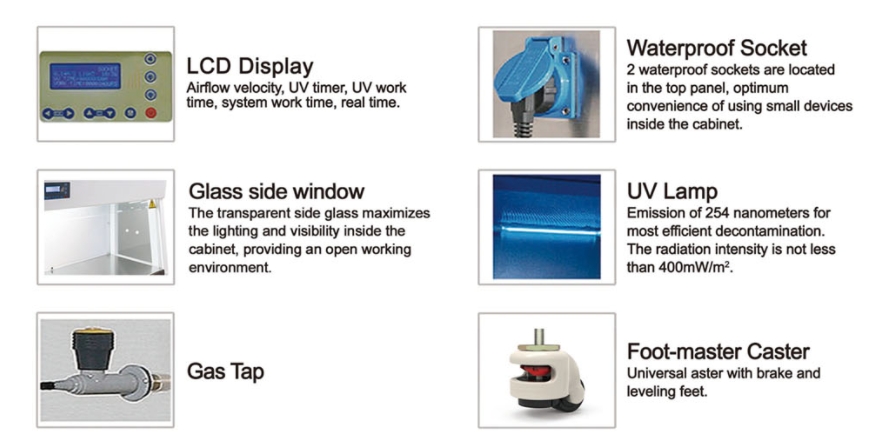

Horizontal Laminar Flow Cabinet BBS-H1300-I BBS-H1800-I-详情图片

Parameter

Model	BBS-H1300-I	BBS-H1800-I
External Size(WDH)	13008201940mm	18008201940mm
Internal Size(WDH)	1200550570mm	1700550570mm
Work Surface Height	750mm
Max Opening	430mm
Display	LCD display
Airflow Velocity	0.30~0.5m/s
Material	Working area: 304 stainless steel Main body: 1.0mm cold-rolled steel with anti-bacteria powder coating Front window: 5mm toughened glass, anti-UV
Pre-Filter	Polyester fiber
HEPA Filter	One, 99.995% efficiency at 0.3μm
Front Window	Motorized
Noise	≤65dB(A)
Illumination	≥300lx
Vibration	≤5μm(rms)
Safety	Colonies Number≤0.5CFU/30min
Clean Level	ISO level 5(Class 100)
Waterproof Sockets	Two sockets, Max. Power: 1000W
Power Supply	AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional)
Consumption	1400W	1500W
LED Lamp	12W*1	16W*2
UV Lamp	30W*1	30W*1
Standard Accessories	Base stand, LED lamp, UV lamp, Waterproof socket*2.Gas tap
Package Size(WDH)	145010601540mm	194010601540mm
Gross Weight	255kg	325kg
