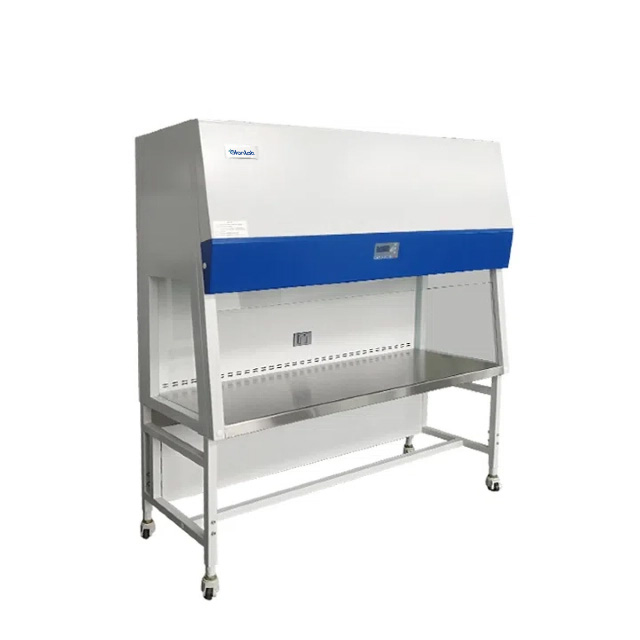

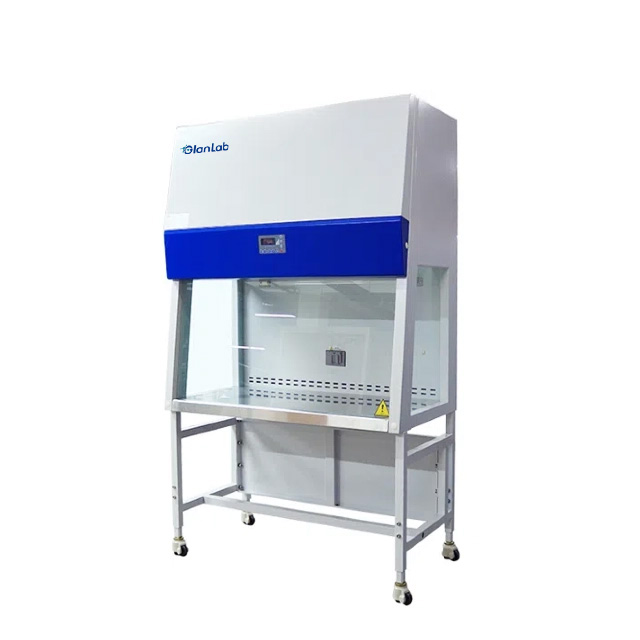

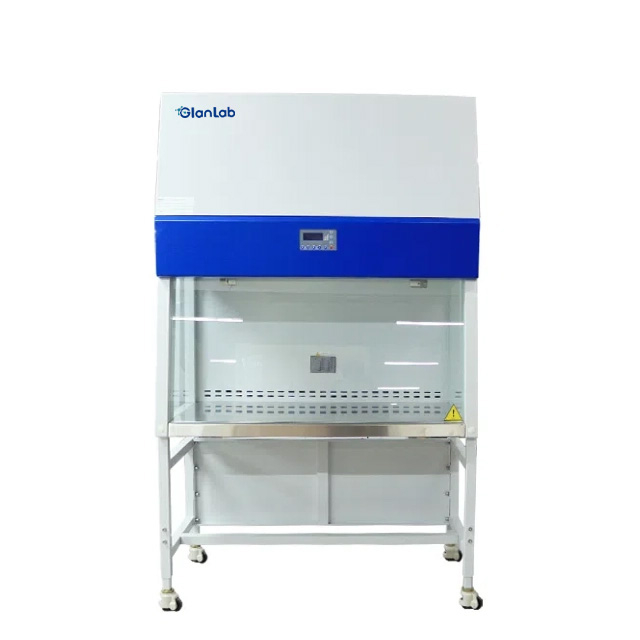

ETL Certified Vertical Laminar Flow Cabinet GlanLab

The ETL Certified Vertical Laminar Flow Cabinet is designed for optimal contamination control in laboratory environments. This cabinet creates a particle-free workspace by using a vertical unidirectional airflow, ensuring that sensitive samples and products are shielded from airborne contaminants. With its ETL certification, it meets North American market standards and offers high performance, making it an ideal choice for labs focused on maintaining a sterile environment.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Product Application

Laboratories conducting biological, pharmaceutical, or chemical research where particle-free environments are essential.
Applications requiring protection of sensitive products from airborne contaminants.
Medical and healthcare environments that need sterile, controlled environments for testing or production.
Electronics manufacturing where contamination control is critical for assembly and testing processes.

Product Feature

ETL Certified: Meets North American market safety and performance standards.
Memory Function: Automatically restores settings in case of a power failure.
Audio and Visual Alarm: Alerts for abnormal airflow velocity to ensure optimal performance.
Interlock Function: UV lamp and blower, LED lamp interlock for enhanced safety.
HEPA Filter: One, 99.995% efficiency at 0.3μm for superior filtration.
Work Zone: Made of SUS304 stainless steel for corrosion resistance and easy cleaning.
Display: LCD screen provides real-time status including air velocity, UV lamp time, and filter life.

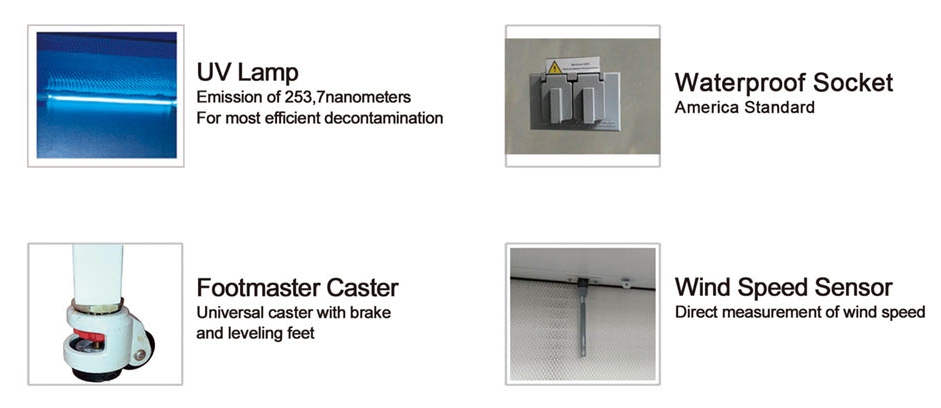

UV Lamp & LED Light: Efficient UV lamp and LED light system for enhanced illumination and decontamination.
Footmaster Casters: Equipped with casters for easy movement and leveling.
Power Supply: Available in AC220V ±10%, 50/60Hz; 110V ±10%, 60Hz options for global compatibility.

Parameter

Model	BBS-V800	BBS-V1100	BBS-V1300	BBS-V1500	BBS-V1800
External Size(WDH)	800700(2090~2340)mm	1100700(2090~2340)mm	1300700(2090~2340)mm	1500700(2090~2340)mm	1800700(2090~2340)mm
Internal Size(WDH)	700575625mm	1000575625mm	1200575625mm	1400575625mm	1700575625mm
Work Surface Height	760~1010mm
Max Opening	480mm
Display	LCD display
Airflow Velocity	80~99fpm
Material	Working Area: 304 stainless Steel
	Main Body: Cold-rolled steel with anti-bacteria powder coating
	Front Window: Motorized, 5mm toughened glass, anti-UV
Pre-Filter	Polyester fiber
HEPA Filter	One, 99.995% efficiency at 0.3μm
Noise	≤68dB(A)
Illumination	≥300lx
Waterproof Sockets	One socket(Double type), America standard, Max. Power: 500W
Power Supply	103.5~126.5V, 60Hz,10A
Consumption	900W	1110W	1110W	1110W	1250W
UV Lamp	20W*1	30W*1	30W*1	40W*1	40W*1
LED Lamp	10W*1	14W*1	14W*1	18W*1	22W*1
Standard Accessory	Manually height adjustable base stand, LED lamp, UV lamp, Wind speed sensor, Waterproof socket
Package Size （WDH）	9459901610mm	12459901610mn	14459901610mm	16459901610mm	19459901610mm
Gross Weight	190kg	230kg	265kg	280kg	320kg
