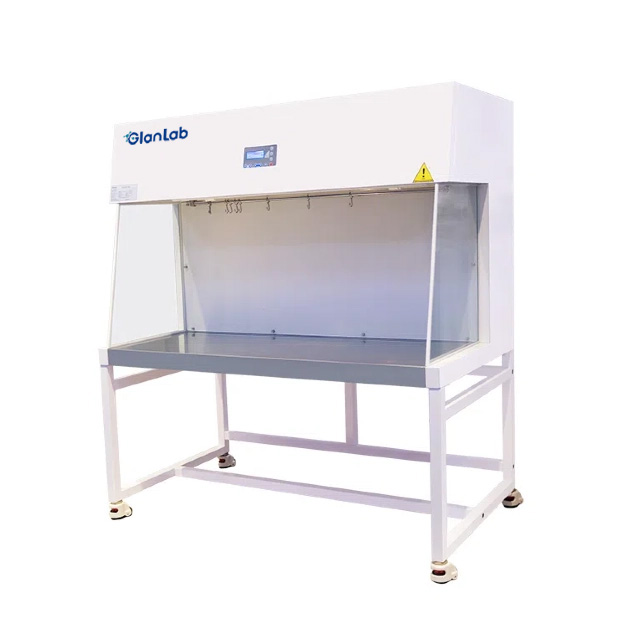

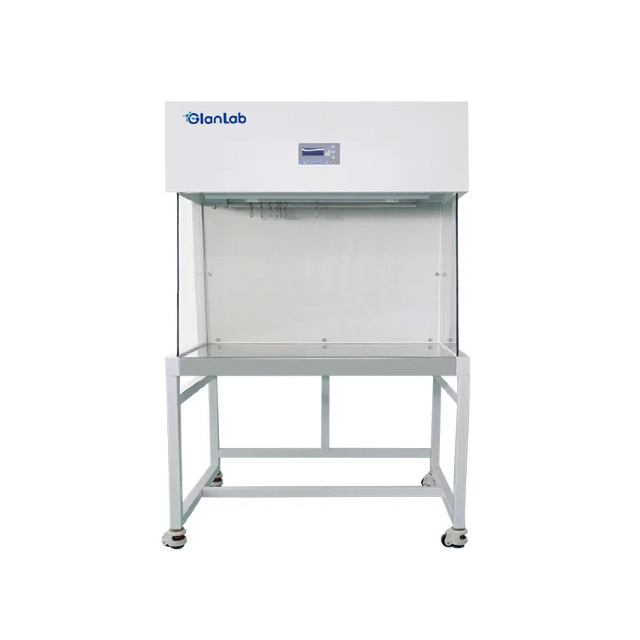

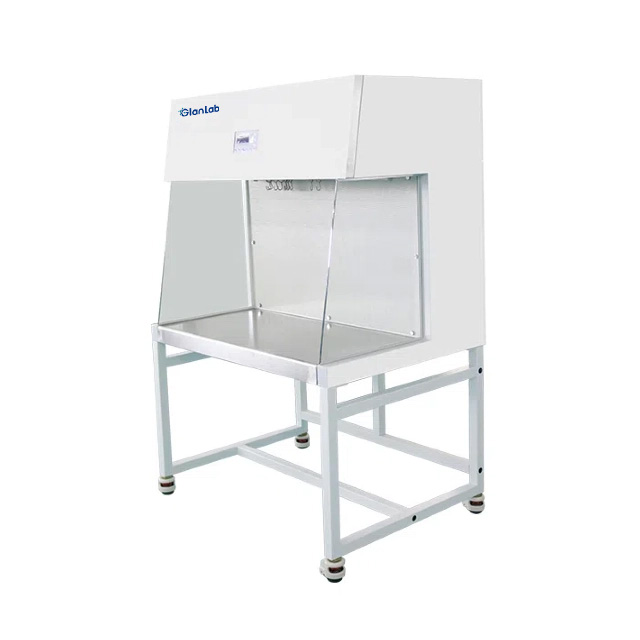

High Quality Laminar Flow Air Cabinet GlanLab

The High Quality Laminar Flow Air Cabinet is a high-performance air purification system designed for creating a clean and sterile working environment. It is widely used in medical and health laboratories, medical science experiments, and environments requiring a contamination-free workspace. The cabinet ensures an ISO Class 5 (Class 100) local operating environment, providing crucial protection for sensitive samples and experiments by utilizing a laminar flow of HEPA-filtered air.
Availability:
Quantity:

Product Application

  • Medical Laboratories: Provides clean environments for diagnostic and therapeutic applications.

  • Pharmaceutical Manufacturing: Protects sensitive formulations and production processes from contamination.

  • Research and Development: Ensures sterile conditions for experiments and tests in biological and medical research.

  • Hospitals and Healthcare Facilities: Creates clean, particle-free zones for procedures requiring high sterility.

  • Microbiological Laboratories: Safeguards experiments involving microorganisms or pathogens.


Product  Feature

  1. High-Quality Laminar Flow: Ensures consistent, uniform airflow that maintains a particle-free workspace, ideal for sensitive applications.

  2. HEPA Filter: One HEPA filter with 99.995% efficiency at 0.3μm, effectively removing airborne particles and microorganisms.

  3. Durable Construction: Built with high-quality materials for long-term durability. Features a robust stainless steel work surface and corrosion-resistant cabinet exterior.

  4. Pre-filter: Includes a washable polyester pre-filter that captures larger particulate matter, extending the life of the HEPA filter.

  5. Front and Side Windows: Made of 5mm thick tempered glass for enhanced safety and durability.

  6. User-Friendly Control Panel: Features touch-sensitive controls for fan speed, lighting, and UV lamp operation, making it easy to manage.

  7. Adjustable Airflow: The airflow speed can be adjusted to suit different experiments and applications.

  8. UV Lamp: Equipped with a UV lamp for disinfection purposes, ensuring a sterile environment.

  9. Alarm System: Includes a comprehensive alarm system for filter pressure, low wind speed, and other critical parameters.

  10. Energy-Efficient Design: Low power consumption with effective use of lighting and UV systems.


Parameter

Model

BBS-H1100

(Previous name: BBS-DDS)

BBS-H1500

(Previous name: BBS-SDS)

BBS-H1800(X)

External Size(W*D*H)

1100*808*1690mm

1500*808*1690mm

1800*808*1890mm

Internal Size(W*D*H)

1000*500*600mm

1400*500*600mm

1700*500*800mm

Work Surface Height

750mm

Display

LCD Display

Airflow Velocity

Average of 0.30~0.45m/s

Material


Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Table: 304 stainless steel

Side Windows: 8mm toughened glass, anti-UV

Pre-filter

Polyester fiber, washable

HEPA Filter

99.995% efficiency at 0.3μm

Noise

<65dB(A)

LED Lamp

12W*1

16W*1

16W*2

UV Lamp

20W*1

30W*1

20W*2

Emission of 253.7 nanometers

Consumption

200W

300W

400W

Waterproof Socket

Two, total load≤500W

Caster

Universal caster with leveling feet

Power Supply

AC220V±10%, 50/60Hz;  110V±10%, 60Hz

Standard Accessory

LED lamp;

UV lamp*2;

Base stand;

Waterproof socket*2;

Hook*10

Optional  Accessory

Electric height adjustable base stand

Gross Weight

175kg

216kg

255kg

Package Size(W*D*H)

1250*1050*1350mm

1650*1050*1350mm

1950*1050*1550m
