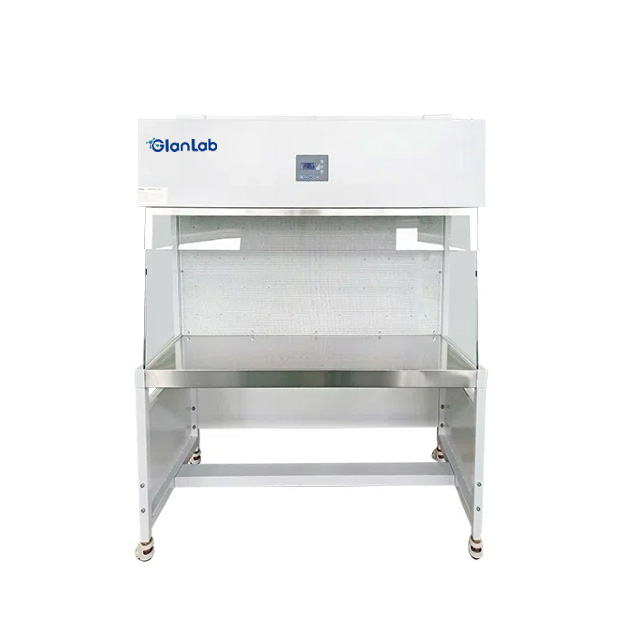

ETL Certified Horizontal Laminar Flow Cabinet GlanLab

The Horizontal Laminar Flow Cabinet is a box-type air purification system designed to provide a local dust-free, sterile environment (ISO Class 5/Class 100). It ensures that the air in the working area is purified, maintaining optimal conditions for laboratory work. The airflow is controlled through a specialized filter system that minimizes contamination, protecting both the user and the environment. This system maintains essential performance parameters, such as airflow velocity, air cleanliness, noise, vibration, and lighting, making it ideal for biological laboratories, medical facilities, and related industries. By improving working conditions, it enhances operator safety and product quality.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Product Application

Biological Laboratories: Protects samples from airborne contaminants during experiments and sample preparation.
Medical and Healthcare Facilities: Maintains a sterile environment for sensitive processes, such as microbiological testing.
Pharmaceutical Production: Ensures a contamination-free environment for drug formulation and testing.
Research & Development Labs: Provides a safe workspace for handling and analyzing delicate materials.

Product Feature

ETL Certified: Fully compliant with North American market standards.
Power-Failure Memory Function: Ensures system settings are restored after power loss.
Audio & Visual Alarm System: Alerts for abnormal airflow velocity to ensure continuous operation within the required standards.
Pre-Filter: Captures large particulates to protect the HEPA filter and extend its life.
Work Zone Material: Made of high-quality SUS304 stainless steel for corrosion resistance and durability.
Tempered Glass Windows: 5mm thick front and side windows provide safety and clear visibility.
Convenient Mobility: Equipped with footmaster casters, allowing for easy movement and secure fixation.
LCD Display: Real-time monitoring of airflow velocity, UV lamp time, HEPA filter run time, and other system parameters.
UV and LED Lights: With convenient fan and UV lamp appointment timing function for effective disinfection.
Unit Conversion: Switch between PA and m/s units for flexible measurement.
Comprehensive Alarm System:

Ultra-high filter pressure alarm
Filter failure replacement alarm
Low wind speed alarm

Interlocking Functions:

UV lamp and front window
UV lamp and fan, fluorescent lamp
Fan and front window

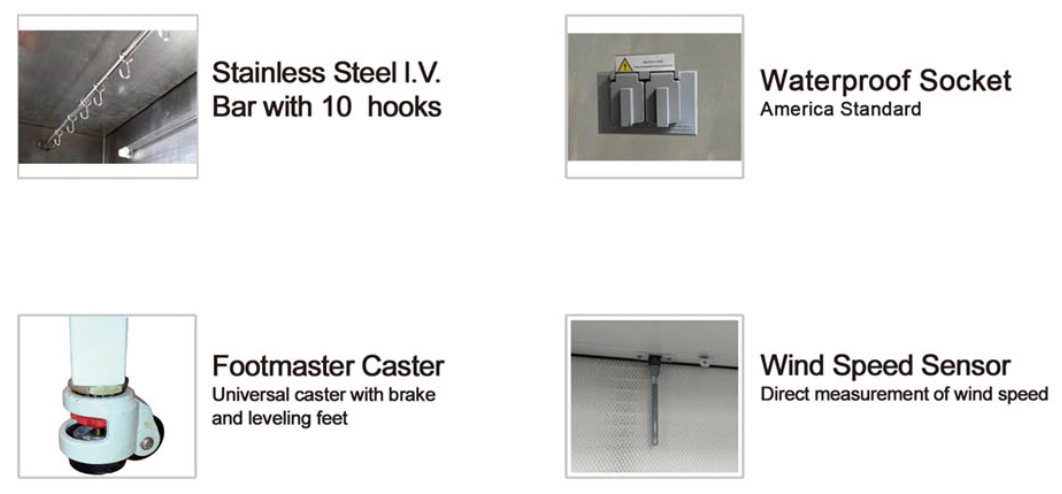

ETL Certified Horizontal Laminar Flow Cabinet-详情图片

Parameter

Model	BBS-H800	BBS-H1100	BBS-H1300	BBS-H1500	BBS-H1800
External Size(WDH)	800810(1720~1980)mm	1100810(1720~1980)mm	1300810(1720~1980)mm	1500810(1720~1980)mm	1800810(1720~1980)mm
Internal Size(WDH)	700500600mm	1000500600mm	1200500600mm	1400500600mm	1700500600mm
Work Surface Height	750~1010mm
Max Opening	440mm
Display	LCD display
Airflow Velocity	80~99fpm
Material	Working area: 304 stainless steel Main body: Cold-rolled steel with anti-bacteria powder coating Front window: 5mm toughened glass, anti-UV
Pre-Filter	Polyester fiber
HEPA Filter	One, 99.995% efficiency at 0.3μm
Noise	≤68dB(A)
Illumination	≥300lx
Waterproof Sockets	One socket(Double type), America standard, Max. Power: 500W
Power Supply	103.5~126.5V, 60Hz, 10A
Consumption	750W	950W	950W	950W	1150W
LED Lamp	10W*1	14W*1	14W*1	18W*1	22W*1
Standard Accessories	Manually height adjustable base stand, LED lamp, Wind speed sensor, Waterproof socket, Stainless steel. V. Bar with 10 hooks
Optional Accessories	UV lamp
Package Size(WDH)	94010901250mm	124010901250mm	144010901250mm	164010901250mm	194010901250mm
Gross Weight	150kg	190kg	225kg	265kg	300kg
