Product Application
Pharmaceutical production: Ensuring sterile conditions during the formulation and handling of pharmaceutical products.
Microbiological research: Preventing airborne contamination when handling cultures or biological samples.
Medical laboratories: For sterile preparation of diagnostic samples and reagents.
Electronics assembly: Protecting sensitive components from airborne particles during assembly or testing.
Cleanrooms and research environments: For applications requiring high levels of air cleanliness and contamination control.
Product Feature
Memory Function: The cabinet is equipped with a memory function to retain settings in case of a power failure, ensuring continuous operation without loss of configuration.
Double-Sided Workbench: The double-sided design allows 2 to 4 operators to work together in a shared workspace, improving productivity and efficiency.
Robust Construction: Made with cold-rolled steel with an anti-bacteria powder coating for enhanced durability and resistance to corrosion.
Efficient Work Surface: The work table is made from 304 stainless steel, ensuring it is both corrosion-resistant and easy to clean, maintaining a sterile working environment.
Advanced Filtration:
Pre-Filter: Polyester fiber pre-filter is washable, helping to prolong the lifespan of the HEPA filter.
HEPA Filter: 99.995% efficiency at 0.3μm, ensuring that the air is free from harmful particles.
Noise Level: Operates at a noise level of <65dB, ensuring a quiet and comfortable working environment.
Manual Front Window: The front window is made of 5mm toughened glass, which is manual and UV-resistant, providing easy access and protection for operators.
Adjustable Front Window Opening: The maximum front window opening is 310mm, providing flexibility to adjust the cabinet for different operations.

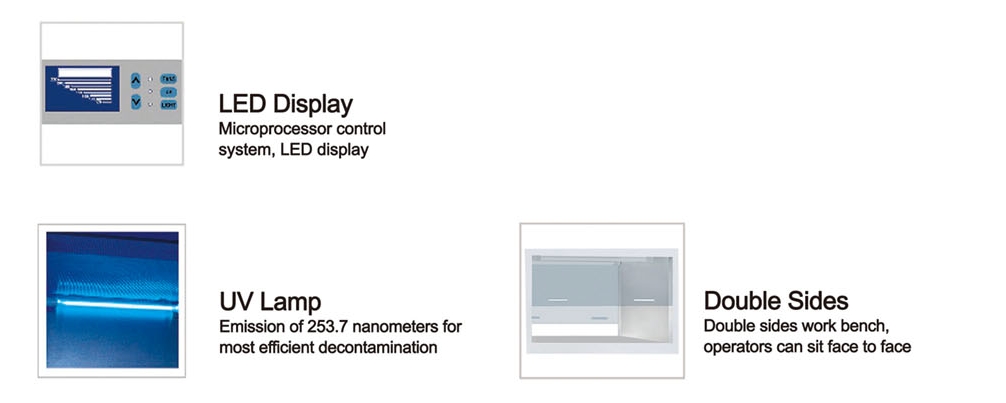

Efficient Lighting: Equipped with a 12W LED lamp (BBS-DSC) or a 16W LED lamp (BBS-SSC) for optimal illumination of the work area.
UV Sterilization:
UV Lamp: The UV sterilization system is equipped with a 20W UV lamp (BBS-DSC) or a 30W UV lamp (BBS-SSC) to ensure the work area is free from microbial contamination.
The UV lamp operates at an emission wavelength of 253.7 nanometers for effective disinfection.
Caster System: Universal casters with leveling feet for easy movement and stable positioning.
Power Supply: AC220V±10%, 50/60Hz or 110V±10%, 60Hz, ensuring compatibility with a wide range of laboratory environments.
Standard Accessories: Includes an LED lamp, UV lamp(s), and a sturdy base stand for added stability.
Optional Accessories: An electric height-adjustable base stand is available for those who require ergonomic adjustments to the working height.

Parameter
Model  |  BBS-DSC  |  BBS-SSC  |
External Size (W*D*H)  |  1040*660*1770mm  |  1440*660*1770mm  |
Internal Size (W*D*H)  |  940*560*545mm  |  1340*560*545mm  |
Work Surface Height  |  750mm  |  |
Display  |  LED display  |  |
Airflow Velocity  |  Average of 0.3~0.5m/s  |  |
Material  |  Main Body: Cold-rolled steel with anti-bacteria powder coating  |  |
Work Table: 304 stainless steel  |  ||
Pre-filter  |  Polyester fiber, washable  |  |
HEPA Filter  |  99.995% efficiency at 0.3μm  |  |
Noise  |  <65dB  |  |
Front Window  |  Manual, 5mm toughened glass, anti-UV  |  |
Max Opening  |  310mm  |  |
UV Lamp  |  20W*1  |  30W*1  |
Emission of 253.7 nanometers  |  ||
LED Lamp  |  12W*1  |  16W*1  |
Consumption  |  350W  |  600W  |
Caster  |  Universal caster with leveling feet  |  |
Power Supply  |  AC220V±10%, 50/60Hz; 110V±10%, 60Hz  |  |
Standard Accessory  |  LED lamp, UV lamp*2, Base stand  |  |
Optional Accessory  |  Electric height adjustable base stand  |  |
Gross Weight  |  150kg  |  186kg  |
Package Size (W*D*H)  |  1190*890*1340mm  |  1590*890*1340mm  |
