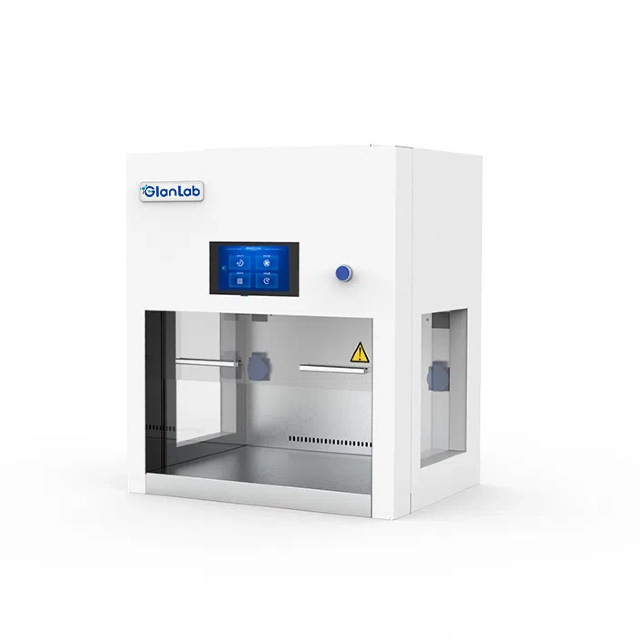

Vertical Surface Design: The cabinet features a vertical airflow design that offers a wide, user-friendly operational perspective, improving accessibility and ease of use.
Durable Construction: Built from high-quality cold-rolled steel plate material with a welded structure and electrostatic spraying, the cabinet provides enhanced stability and longevity.
Initial Effect Filter: The initial effect filter effectively captures large particulate matter, extending the life of the HEPA filter and ensuring optimal air quality within the cabinet.
304 Stainless Steel Work Surface: The work surface is made from high-quality, corrosion-resistant 304 stainless steel, ensuring durability and ease of maintenance.
Positive Pressure Surround Design: The working area is surrounded by positive pressure on all four sides (left, right, rear, and bottom), which helps protect sensitive products from contamination.
Tempered Glass Front Window: A 5mm thick tempered glass front window provides safety for both personnel and experiments, while offering clear visibility of the working area.

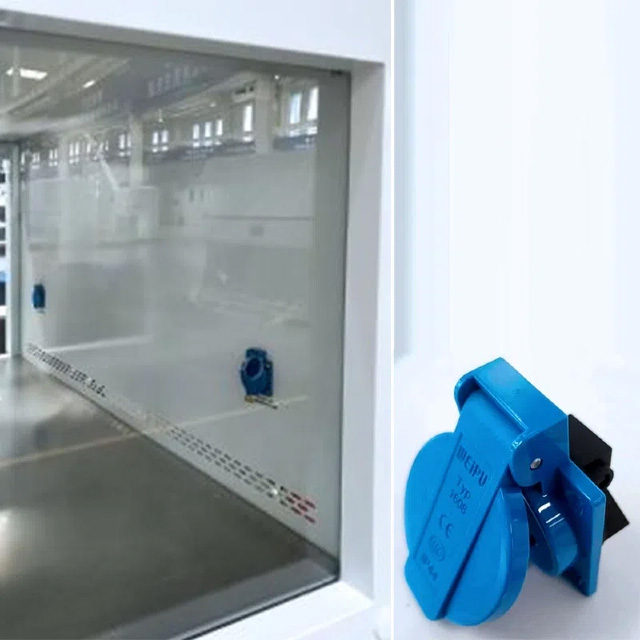

Toughened Glass Side Windows: The side windows, made from 5mm thick toughened glass, enhance lighting permeability and improve visibility within the working space.
Hidden Weight Structure: Designed with a hidden weight structure for added stability, the cabinet also features a manual front window that allows for easy adjustment of the window's height.

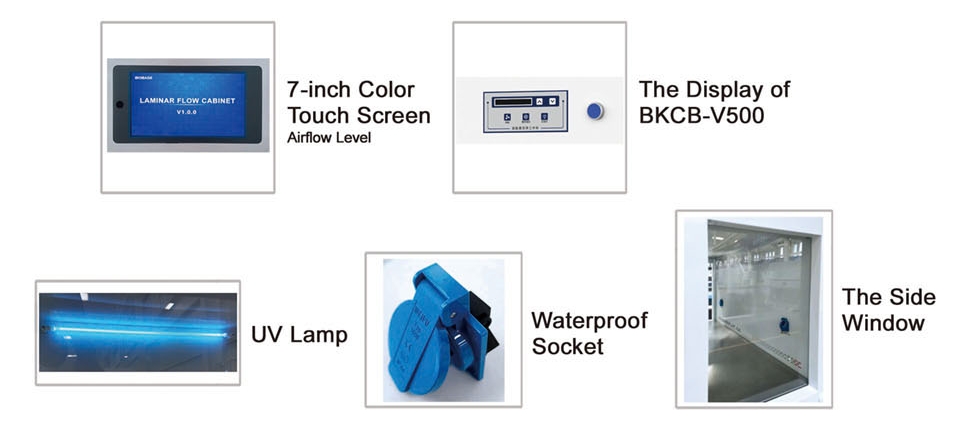

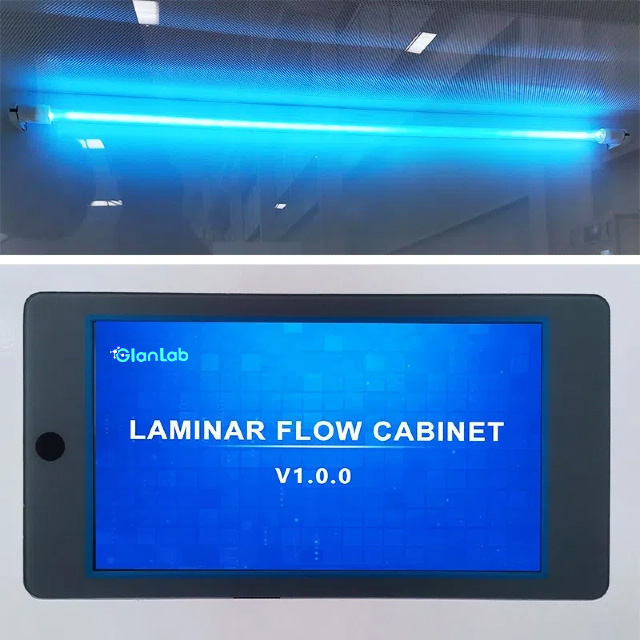

7-inch Color Touchscreen: The user-friendly color touchscreen displays real-time operational data, including airflow direction, air velocity, filter resistance, UV lamp and machine runtime, temperature, humidity, and more, allowing for easy monitoring and control.
Automatic Appointment Timing: The cabinet includes an automatic timing function that allows users to set start/stop times for the laminar flow system and UV lamp disinfection cycles, facilitating hands-off operation.
Convenient One-Touch Disinfection: The key disinfection function makes it easy to quickly sterilize the workspace, improving efficiency and saving valuable time.
Advanced Alarm System:
Front Window Height Alarm: Alerts when the front window is not positioned correctly (200mm height).
High Filter Pressure Alarm: Notifies the user when filter resistance increases, indicating potential blockages or reduced efficiency.
Filter Replacement Alarm: Emits a sound when the HEPA filter reaches the end of its service life and needs to be replaced.
Safety Interlock Protection:
Fan and Front Window Interlock: Automatically shuts off the fan when the front window is lowered, preventing airflow disruptions.
UV Lamp Interlock: Ensures the UV lamp cannot be turned on unless the front window is fully closed, protecting operators from UV exposure.
