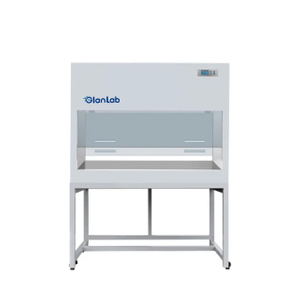

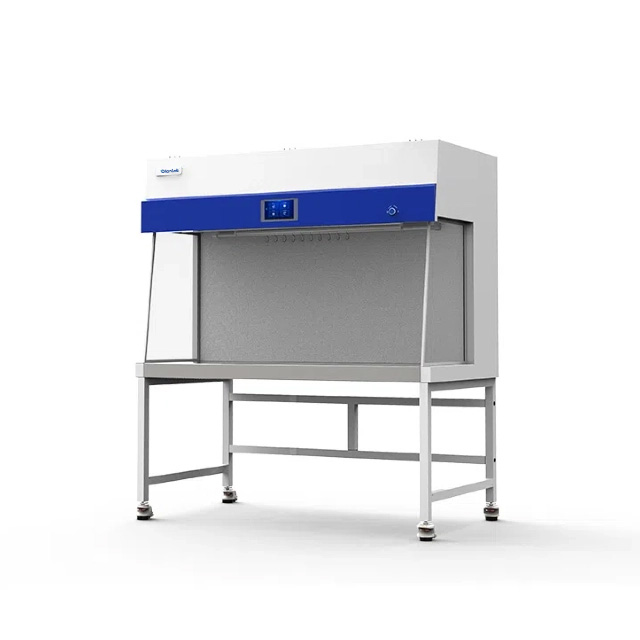

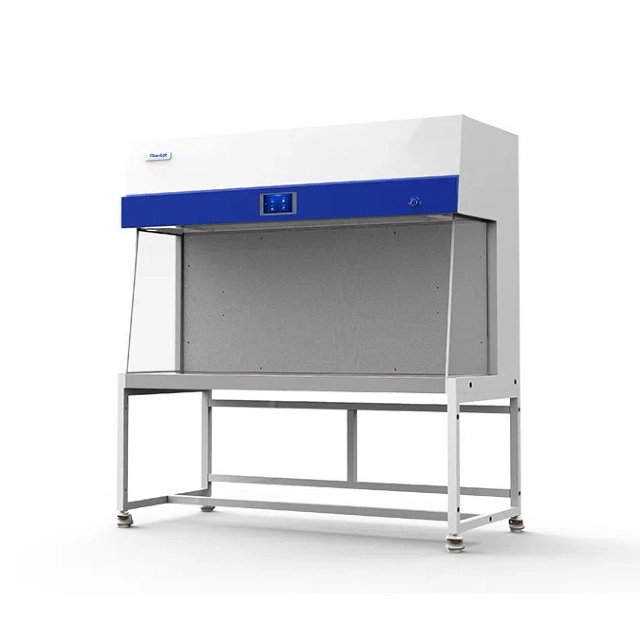

Horizontal Laminar Flow Cabinet BKCB-H GlanLab

Product Application

• Biological Laboratories: To maintain a sterile environment for handling biological samples and experiments.

• Medical and Healthcare: For ensuring contamination-free areas when working with medical instruments or pharmaceutical products.

• Clean Rooms: In industries where particle-free environments are crucial, such as electronics manufacturing and pharmaceuticals.

• Clinical Research: To provide a controlled atmosphere for research involving sensitive biological samples or clinical testing.

• Microbial Testing: To protect cultures from airborne contaminants in microbiology and biochemistry labs.




Product  Feature

• Ergonomic Design
  The cabinet is designed with a 10° inclination angle, providing a wider and more ergonomic operation perspective for users, enhancing comfort during extended use.

• Durable Construction
  Constructed from high-quality cold-rolled steel plate, the cabinet features a robust welding structure and an electrostatic spray finish, significantly increasing the stability and durability of the unit.

• Preliminary Filtration
  Equipped with an initial effect filter, which filters out larger particulate matter, extending the service life of the high-efficiency filter.

• Stainless Steel Work Surface
  The work surface is made of high-quality 304 stainless steel, known for its corrosion resistance and sleek, aesthetic finish, ensuring easy maintenance and long-lasting performance.

• Safety-Optimized Front Window
  The front window is made of 5mm thick tempered glass, providing added safety for personnel and ensuring the protection of experiments from external disturbances.

• Integrated Base Stand and Casters
  The cabinet features an integrated base bracket and casters design, allowing for easy mobility. The casters ensure safe movement while also enabling the unit to be fixed and leveled for stable operation.

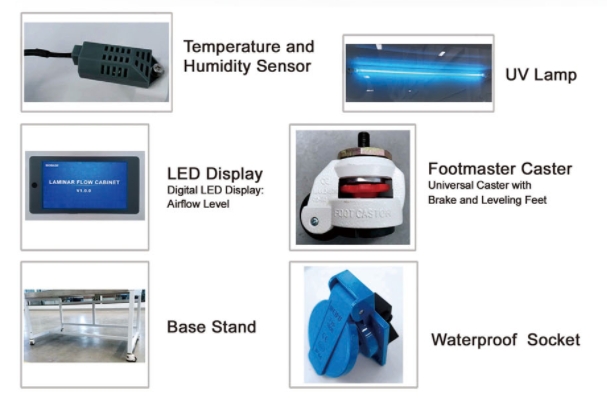

• 7-Inch Color Touchscreen Display
  The cabinet includes a 7-inch color touchscreen, providing a real-time display of the system’s running status, including:

• Airflow direction

• Air velocity

• Machine running time

• UV lamp running time

• High-efficiency filter usage and resistance

• Operating area temperature and humidity
  This enables users to monitor the system's performance at a glance.

• Appointment Timing Function
  This feature allows the cabinet to automatically set start and shut-down times for the laminar flow and UV lamp disinfection cycles, enhancing operational efficiency.

• Key Disinfection Function
  The cabinet is equipped with a key disinfection function, which allows for fast and convenient disinfection, saving time and boosting operational efficiency.

• Advanced Alarm System
  The cabinet features a comprehensive alarm system that includes:

• Ultra-high filter pressure alarm: Alerts when filter resistance increases, signaling the need for maintenance.

• Filter failure/replacement alarm: Notifies when the filter's service life has expired and requires replacement.

Parameter
