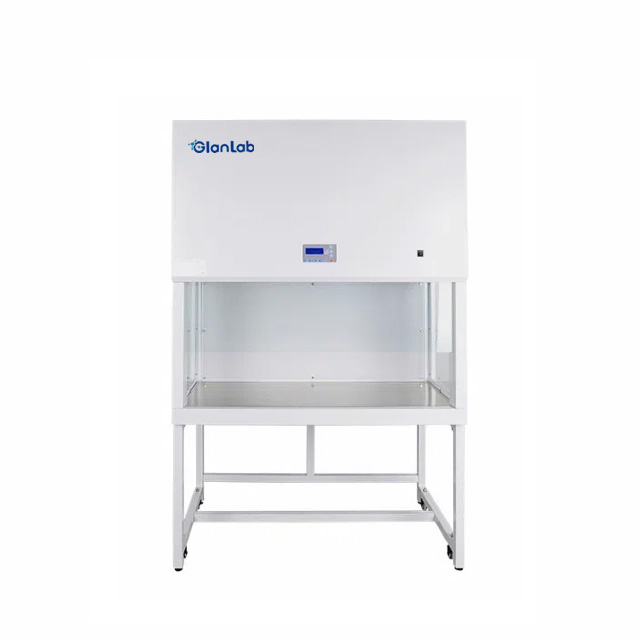

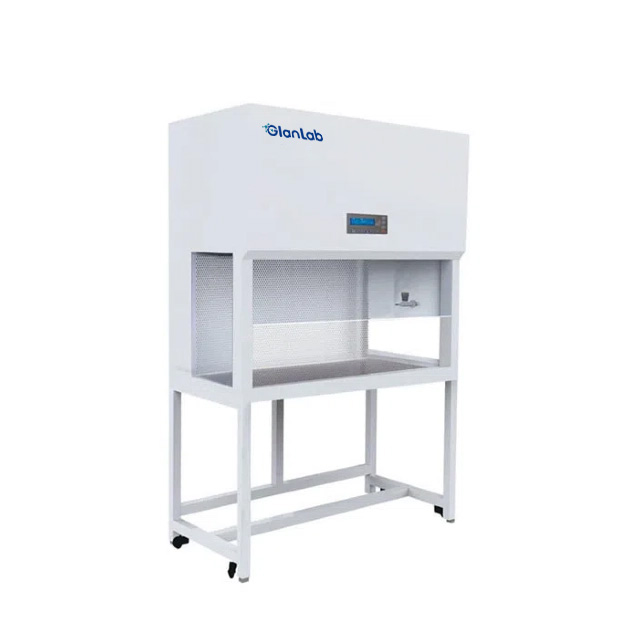

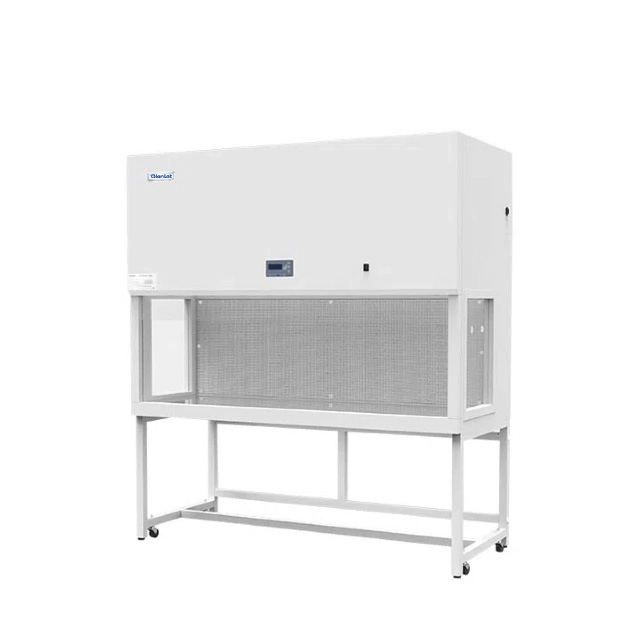

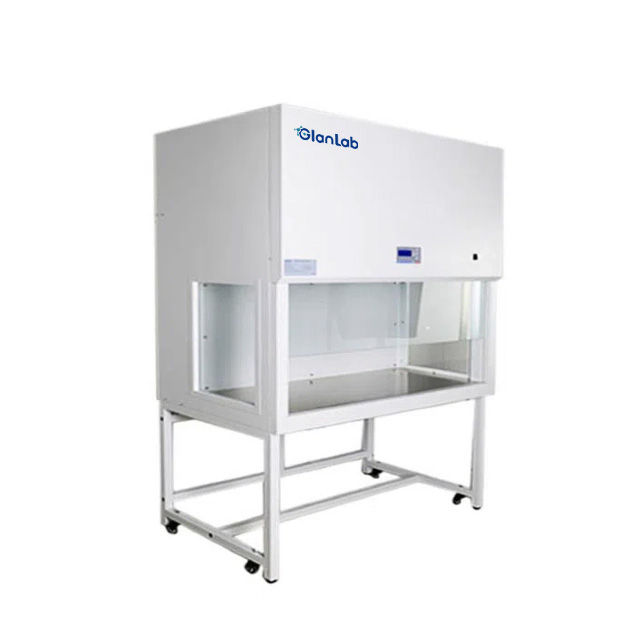

Horizontal Laminar Flow Cabinet BBS-H1300 BBS-H1800 GlanLab

Product Application

• Biological Laboratories: Protects samples and experiments from airborne contaminants in controlled lab settings.

• Pharmaceutical Production: Provides contamination-free environments for drug preparation and testing.

• Microbial Research: Ensures a clean workspace for microbiological studies and microbial culture handling.

• Medical Research: Safeguards medical samples, such as tissues or fluids, from particulate contamination during analysis.

• Cleanrooms: Used to maintain a particle-free environment in cleanroom applications across various industries.




Product  Feature

1. Horizontal Laminar Flow:
   Provides uniform airflow to create a stable, contamination-free working environment. Designed for single-sided operation.

2. High-Quality Construction:
   Main body constructed from cold-rolled steel with anti-bacterial powder coating, ensuring long-term durability and resistance to contamination.
   The work table is made of 304 stainless steel, providing superior corrosion resistance.

3. Pre-Filtering System:
   Equipped with a washable polyester fiber pre-filter, which removes large particulate matter and extends the lifespan of the HEPA filter.

4. HEPA Filter:
   One, with 99.995% efficiency at 0.3μm, ensuring exceptional air purification and the protection of sensitive samples.

5. Motorized Front Window:
   Features a motorized front window, offering smooth and adjustable access to the work area. The window has a maximum opening of 430mm for ease of operation.

6. Airflow Control:
   Air velocity is adjustable, with a range of 0.3~0.5m/s, to maintain optimal air pressure and filtration performance.

7. Display and Monitoring:
   LCD display shows real-time operating data, including airflow velocity, timer, UV lamp time, and HEPA filter running time.

8. UV and LED Lighting:

• UV lamp (30W) for disinfection, with an emission of 253.7 nanometers to ensure safe operation.

• LED lamp provides consistent illumination, with 12W in BBS-H1300 and 16W in BBS-H1800 models.

9. Energy Efficiency and Safety Features:

• Energy consumption: 400W for BBS-H1300 and 500W for BBS-H1800.

• Equipped with waterproof sockets (two, total load ≤500W) for safe electrical connections.

• Safety features include interlock functions between the UV lamp and the fan, as well as between the UV lamp and LED light.

10. Alarm System:

• Ultra-high filter pressure alarm

• Low wind speed alarm

• Filter failure replacement alarm to ensure continuous protection and operation.

11. Mobility and Stability:
    Universal casters with leveling feet allow for easy movement and secure positioning.

Parameter
