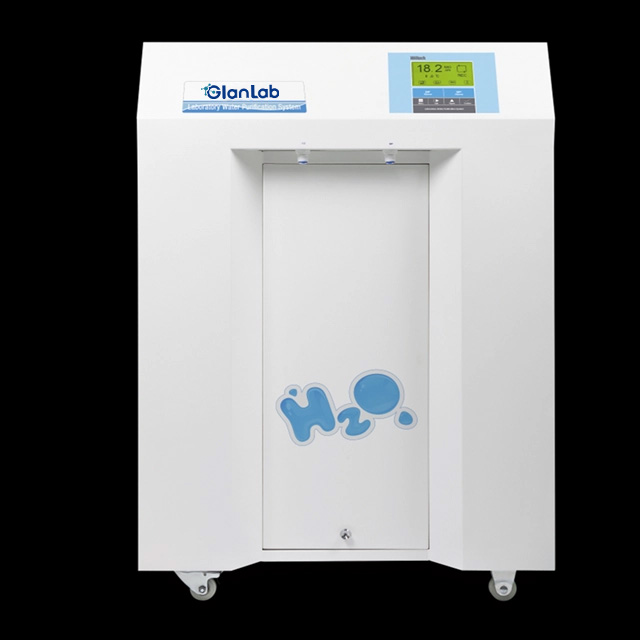

Medium-1600Q Deionized Water System GlanLab

With LCD controlling system, 3 way water quality sensor, timing and quality dispensing, stainless steel shell, medium-1600Q is nearly the smallest single stage and deionized water system. The single stage RO water’s ion rejection rate is more than 97%, and the deionized water’s resistivity is more than 10MΩ.cm, near to18.2MΩ.cm. It completely meets the requirements of general chemical or biological experiments for pure water.

Availability:

Quantity:



Inquiry Add to Basket

Product Description

Features:

Producing single stage RO water and deionized water: you can get RO water and deionized water in a device, which can save your cost and improve efficiency.
Quality of single-stage RO water and deionized water: the single stage RO water’s ion rejection rate is more than 97%; the resistivity of deionized water is 10-18.2MΩ.cm.
Multiple alarm function: no feed water, full water, water quality's standard exceeding and cartidge replacing alarm.
Auto self-flushing of RO membrane: this kind of RO membrane has longer use life, which can can reduce maintenance costs.
High-capacity and easy-to-replacing cartridge: with fast inserted adapters, the cartridge is easy to replace and achieve running in the lowest cost.
Stainless steel shell: this water system is made of stainless steel with powder painting technics, achieving elegant appeaance and meeting GLP standard.
Floor type with wheels on the bottom design: this design makes it easy to move the water system.
Micro-computer control system with LCD display: LCD (resolution: 240×128， dimension: 106×57mm), intuitively display the system running state and various real-time parameters.
Comprehensive monitoring system: 3-way online water quality sensors detect the quality of feed water, RO water and ultrapure water.

Flow Schematic

Medium1600-Q

Specifications

Model	Medium-1600Q
Output(25°C)*	250 liters/hour
Pure water outlet	2: reverse osmosis water, deionized water
Deionized water quality
Resistivity	10-18.2MΩ.cm
Bacteria	<0.01cfu/ml(with optional 0.2µm PES terminal filter)
Particle(>0.2µm)	<1/ml(with optional 0.2µm PES terminal filter)
RO water quality
Ion rejection rate	97%-99% (new RO membrane)
Organic rejection rate	>99%, when MW>200 Dalton
Particles and bacteria rejection rate	>99%
Feed water requirements	Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm²
Dimension and weight	Length×Width×Height:760×550×1210mm / Weight: about 85Kg
Electrical requirements	AC110-240V, 50/60Hz
Power	480W
Standard configuration	Main body (Including 1 set of cartridge)

Cartridges

Item no.	Commodity	Approximate replacement term /set
PC-20PP	20" spun fiber cartridge	2-6 months
PC-20AC-G	20" granular active carbon cartridge	2-6 months
PC-20AC-B	20" active carbon block cartridge	2-6 months
RO-150GPD	150 GPD reverse osmosis membrane	12-24 months
RO-200GPD	200 GPD reverse osmosis membrane	12-24 months
RO-300GPD	300 GPD reverse osmosis membrane	12-24 months
RO-400GPD	400 GPD reverse osmosis membrane	12-24 months
RO-600GPD	600 GPD reverse osmosis membrane	12-24 months
PTC-AC-HZB1	Reducing TOC cartridge	9000 liters pure water
PTC-MBR-12L	12l mixed bed resin cartridge	20000 liters pure water
PTC-UPPR-12L	12l ultrapure polishing resin cartridge	20000 liters pure water
PTC-MBR-25L	25l mixed bed resin cartridge	40000 liters pure water
PTC-UPPR-25L	25l ultrapure polishing resin cartridge	40000 liters pure water
PTC-UPPR-M	Ultrapure polishing resin cartridge	1000 liters pure water/set
TF-0.2µm-B	0.2µm terminal filter	-
UF-5000D	MWCO5000D UF cartridge	-
LAMP-(185nm&254nm)-10W-M	Double wavelength(185&254)nm uv lamp	9000 hours
