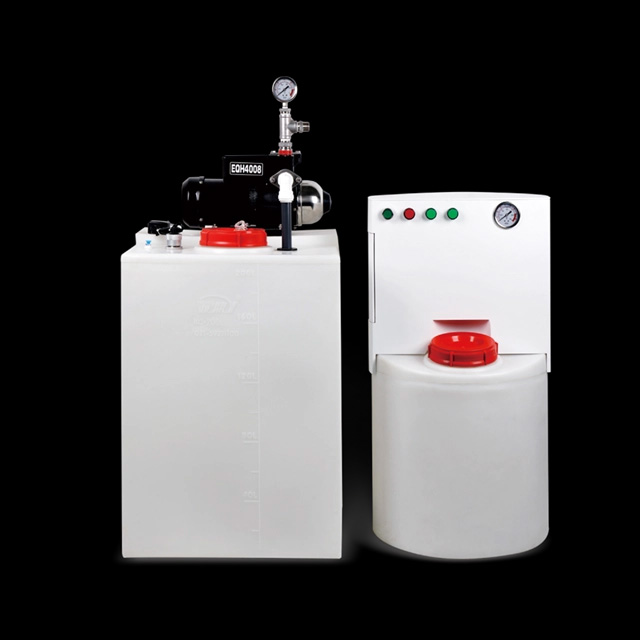

PWS Pure Water Supply System GlanLab

The PWS series pure water supply system is compatible with any brand of water purification system, providing pure water for various equipment such as cleaning machines, biochemical analyzers, immunoassay analyzers, temperature and humidity chambers, salt spray test chambers, dampening machines, printing machines, laser engraving machines, and cooling devices. It is also suitable for central water supply.
PWS I: Ideal for short distances and small volumes of pure water supply.
PWS II: Designed for long distances and large volumes of pure water supply.
Availability:
Quantity:

Features:

  • Made of HDPE (High-density polyethylene): HDPE is an ideal material for water purification systems due to its corrosion and chemical resistance, durability, low maintenance needs, thermal stability, non-toxic properties and  cost-effectiveness.

  • Independent power control and automatic operation: the system features independent power control, allowing for automatic operation without manual intervention, enhancing user convenience.

  • Integrated components: this system integrates level control, a pressure pump, a buffer tank, and inlet valves into a single unit, streamlining the water supply process.

  • No connection to main circuit required: there is no need to connect to the main pure water circuit, as the system can operate automatically based on the liquid level in the tank.

  • Optional UV lamp module: an optional UV lamp module is available to inhibit bacterial growth and reduce total organic carbon (TOC), improving water quality.



Specifications

Model

PWS I-T100R-P12-3G *

PWS -200S-4008 **

Shape & volume of tank

Roundness: 100, 200 liters
Square:80,120, 200 liters

Roundness: 500, 1000, 2000 liters
Square: 200 liters

Material of tank

HDPE (High-density polyethylene)

Specifications of pump

Maximum flow rate

3, 5, 7, 10, 12 liters/min (Optional)

70, 100 liters/min (Optional)

Vertical self-priming height

2 meters

2 meters

The rated stop pressure

0.45Mpa±0.4Mpa

0.3Mpa±0.4Mpa, 0.35Mpa±0.4Mpa

Max pressure/pump lift

About 0.8Mpa/80meters

About 0.3Mpa/30meters, About 0.35Mpa/35 meters

Volume of buffer tank

12 liters

1 liter
